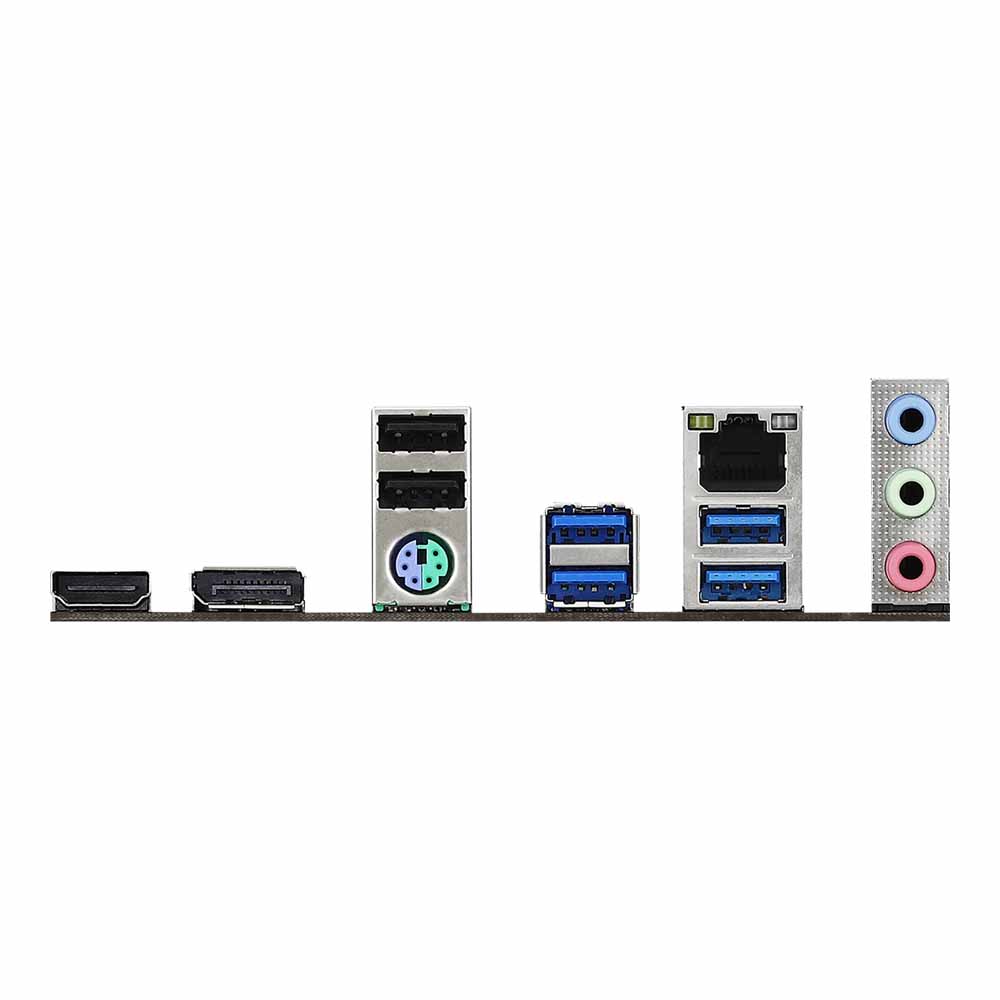

Socket AM4 for AMD Ryzen 3000, 3000 G, 4000 G, 5000, 5000 G, Series Processors AMD B550 DDR4, 4 x DIMM 1 x DP 1 x HDMI 2 x M.2 4 x SATA3 2 x USB 3.2 Gen1 Headers (front) 4 x USB 3.2 Gen 1 Type-A (rear) 2 x USB 2.0 Type-A (rear) 1 x PS/2 1 Gigabit LAN

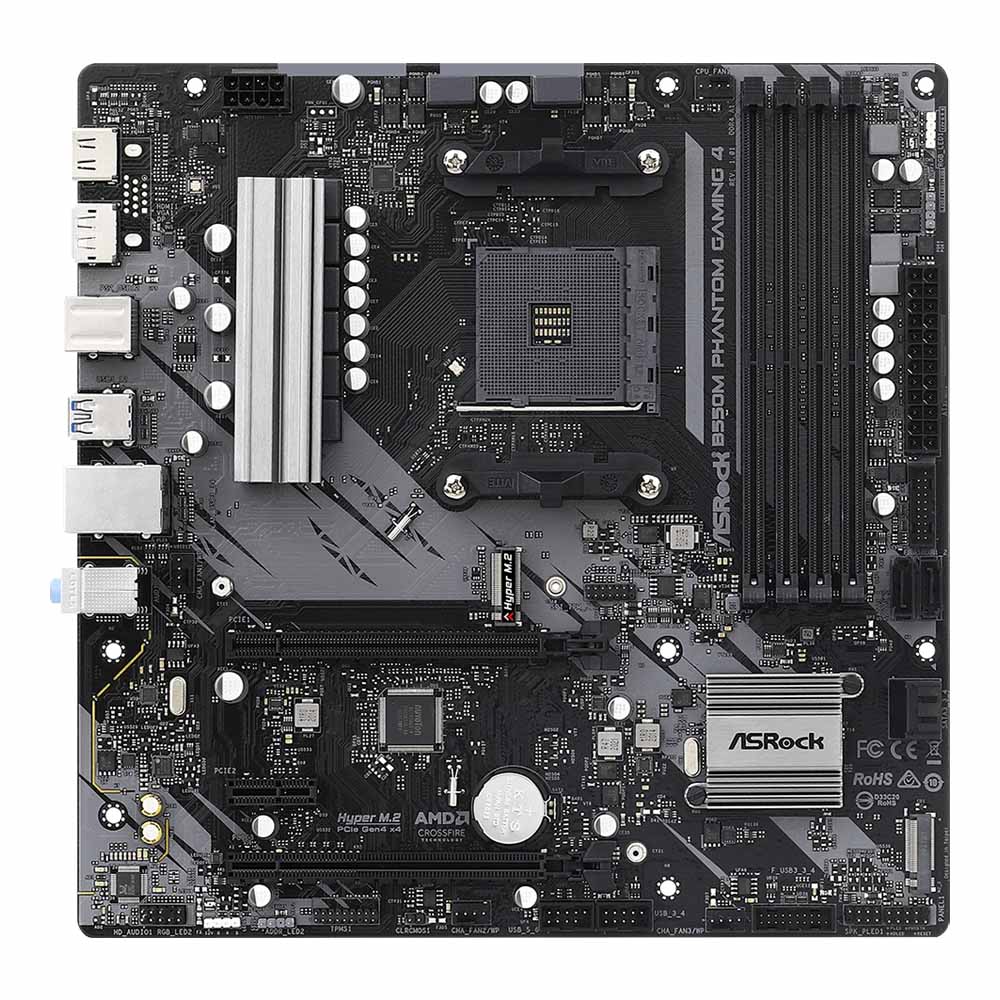

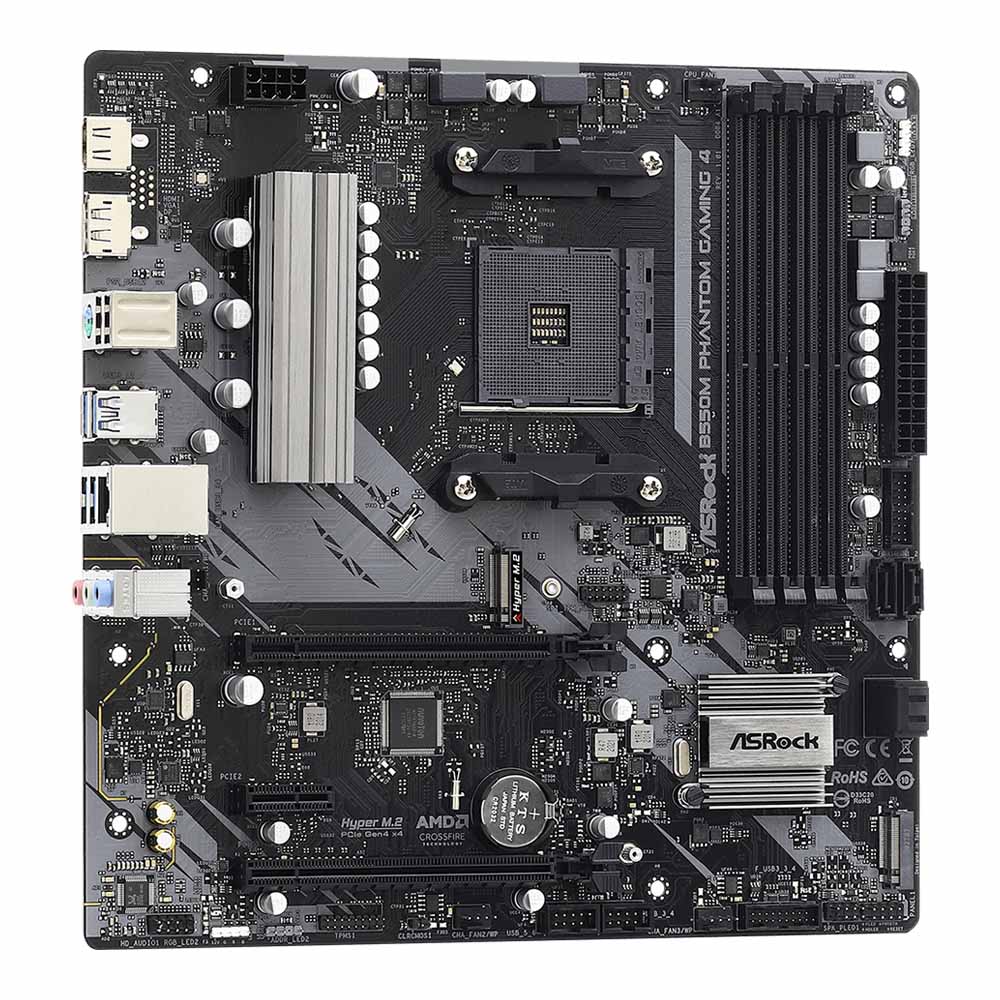

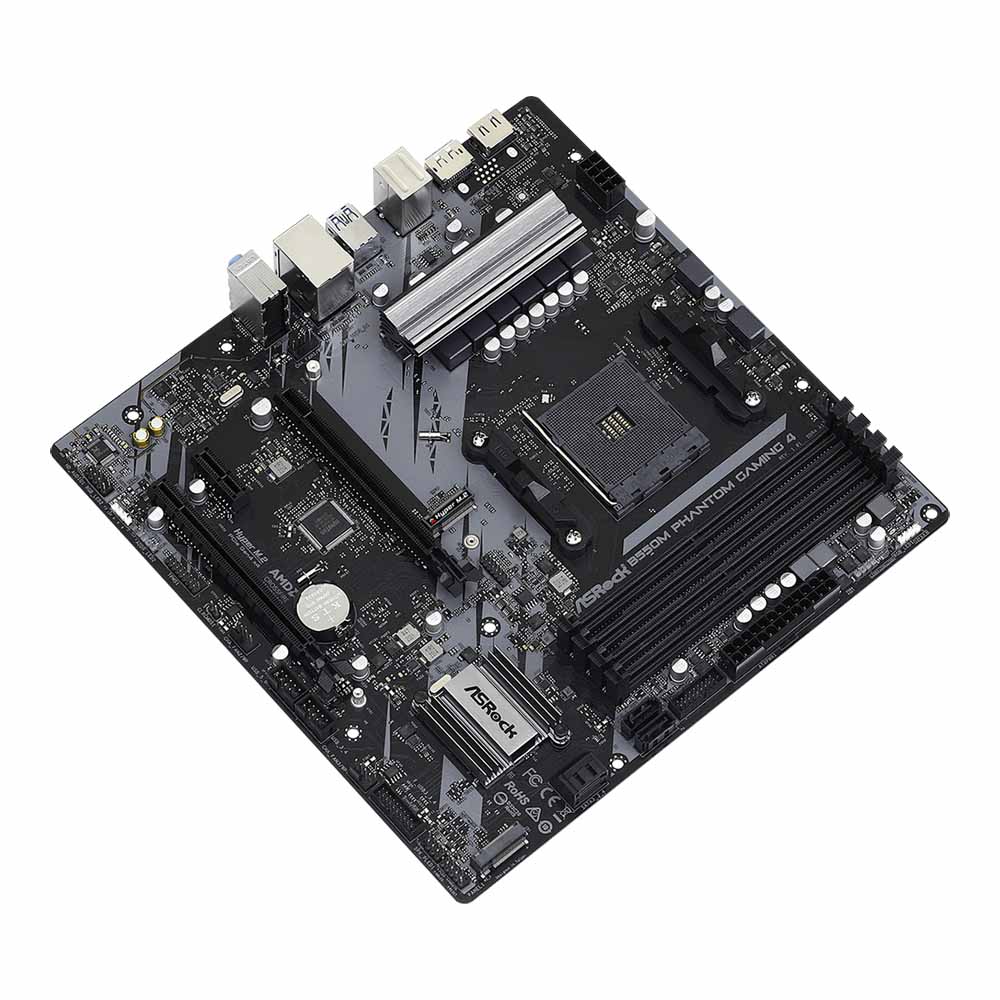

• • Model : B550M Phantom Gaming 4
• • Wattage : 105W
• • mb_ob_sup_sound : - 7.1 CH HD Audio - Supports Surge Protection
• • Audio : Realtek ALC887/897 Audio Codec
• • Graphic : - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports*** - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports - Supports Microsoft PlayReady — *Actual support may vary by CPU **The Max shared memory 16GB requires 32GB system memory installed. ***Picasso supports HDCP 2.2 with HDMI 2.0 Port

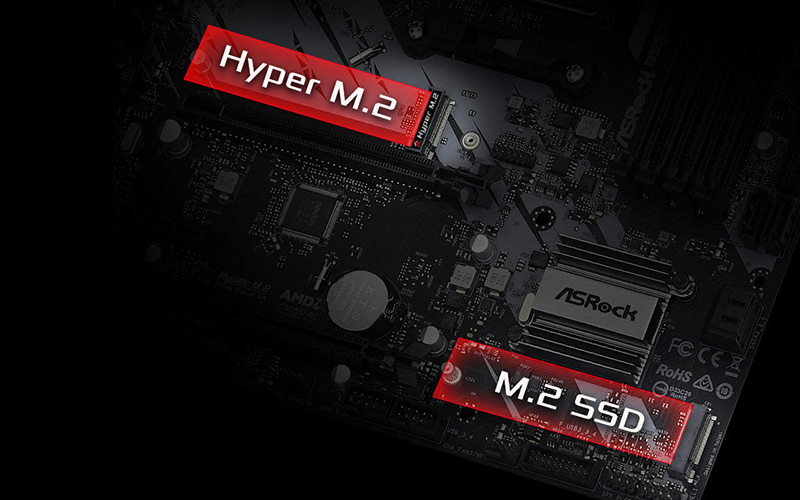

• • M.2 : 2 x M.2 Sockets — - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and Picasso)* - 1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)* — *Supports NVMe SSD as boot disks NVMe SSD is not supported with AMD Athlon 3000G Processors Port
• • Details : AMD Ryzen series CPUs (Vermeer and Matisse) - 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)* AMD Ryzen series APUs (Cezanne and Renoir) - 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)* AMD Ryzen series APUs (Picasso) - 2 x PCI Express x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4 mode)* — - 1 x PCI Express 3.0 x1 Slot - Supports AMD Quad CrossFireX and CrossFireX — *Supports NVMe SSD as boot disks
• • LAN Speed : 10 / 100 / 1000 Mbps
• • LAN : 1 Port
• • USB 3.2 : 4 x USB 3.2 Gen 1 Type-A Port
• • PS/2 : 1 (Keyboard/Mouse combo) Port
• • Power Connector : 24 + 8 Pin
• • Dimension : 24.4 x 24.4 cm
