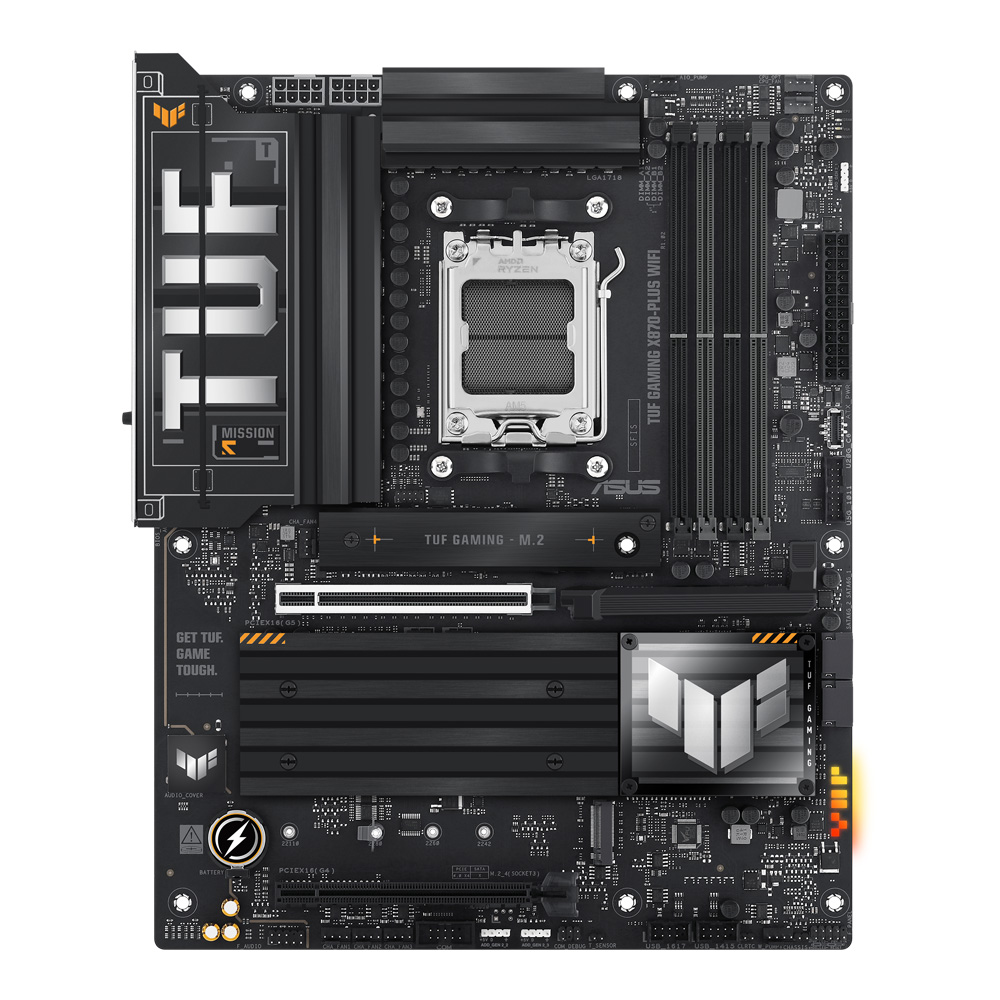

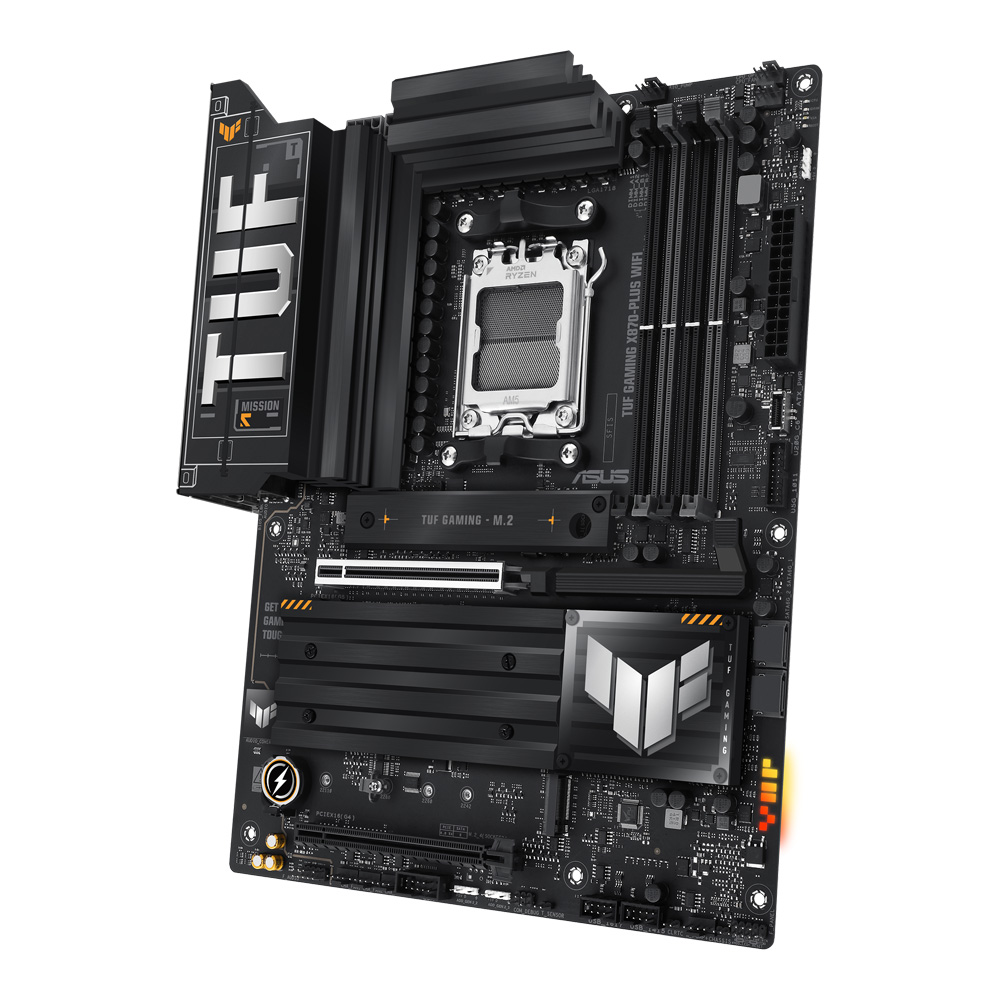

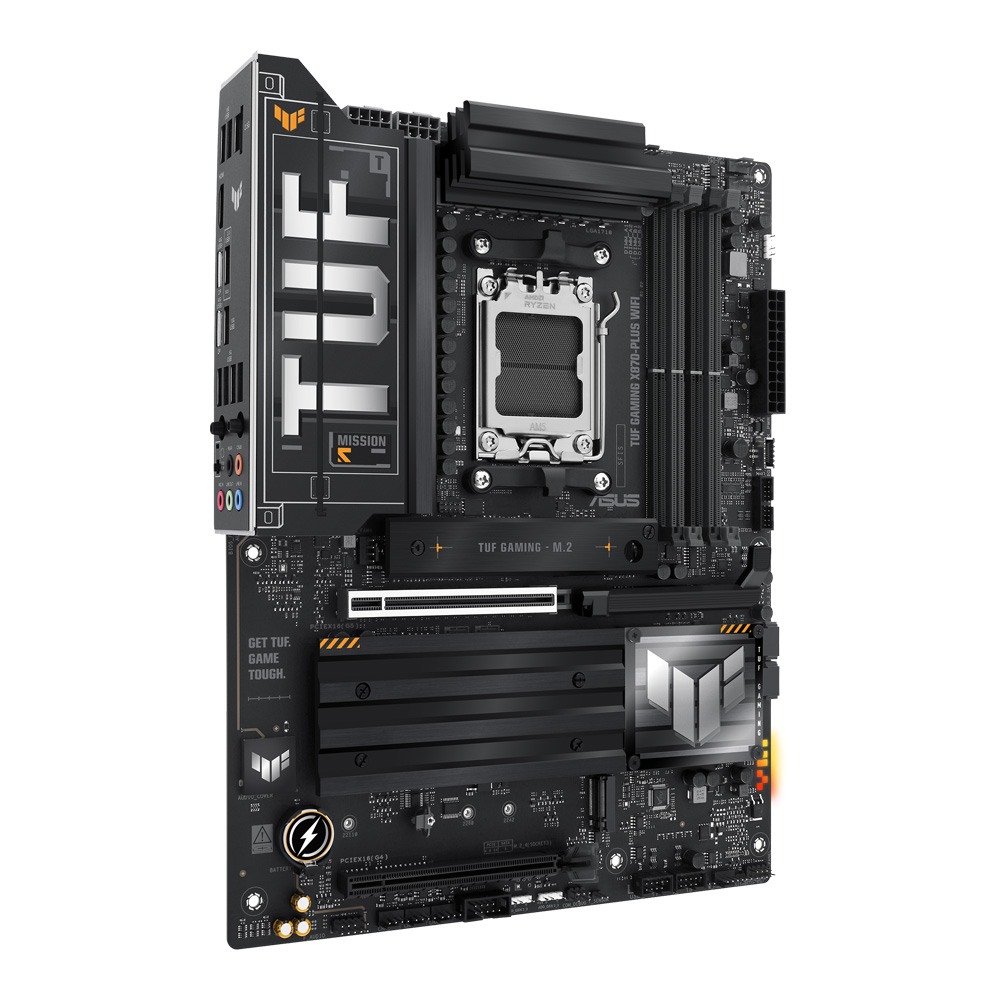

MAINBOARD (เมนบอร์ด) ASUS TUF GAMING X870-PLUS WIFI - AMD SOCKET AM5 DDR5 ATX

Name: MAINBOARD (เมนบอร์ด) ASUS TUF GAMING X870-PLUS WIFI - AMD SOCKET AM5 DDR5 ATX
Brand: Asus
SKU: 1007000087
Price: 10990 THB
Availability: InStock

MAINBOARD (เมนบอร์ด) ASUS TUF GAMING X870-PLUS WIFI - AMD SOCKET AM5 DDR5 ATX

แบรนด์ : Asus

10,990.-

JIB Points

รับ 1 คะแนน ทุกการใช้จ่าย

฿100

พร้อมส่ง

รายละเอียดสินค้าโดยย่อ

Socket AM5 for AMD Ryzen 7000, 8000, 9000 Series Processors

• AMD X870
• DDR5, 4 x DIMM
• 1 x HDMI
• 2 x USB4 (USB-C) display outputs
• 4 x M.2 slots
• 2 x SATA 6Gb/s ports
• 1 x USB-C 20Gbps connector (30W PD) (front)
• 2 x USB4 40Gbps (USB-C) (rear)
• 3 x USB-A 10Gbps (rear)
• 2.5Gb Ethernet
• Wi-Fi 7
• Bluetooth v5.4

44ครั้ง

ขายแล้ว0ชิ้น

จำนวน

คงเหลือ 1 ชิ้น

คุณสมบัติเด่นและสเปก

รายละเอียดสเปคทั้งหมดของสินค้า

MAINBOARD (เมนบอร์ด) ASUS TUF GAMING X870-PLUS WIFI - AMD SOCKET AM5 DDR5 ATX

model

Model: TUF GAMING X870-PLUS WIFI

CPU

Wattage: 170W

Graphic & Audio

mb_ob_sup_sound: Audio Features - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit — * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Graphic: Requires a CPU with Integrated Graphics. — • 1 x HDMI port** • 2 x USB4 (40Gbps) ports support USB Type-C display outputs*** — * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a. **** VGA resolution support depends on processors' or graphic cards' resolution.

Storage

M.2: 4 x M.2 slots — AMD Ryzen 9000 & 7000 Series Desktop Processors • M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) • M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)** — AMD Ryzen 8000 Series Desktop Processors • M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) • M.2_2 slot not support — AMD X870 Chipset • M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) • M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)*** — ** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs. *** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs. Port
RAID: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU.

expansion slots

Details: AMD Ryzen 9000 & 7000 Series Desktop Processors* • 1 x PCIe 5.0 x16 slot (supports x16 mode)** AMD Ryzen 8000 Series Desktop Processors • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)*** — AMD X870 Chipset • 1 x PCIe 4.0 x16 slot (supports x4 mode)**** — * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs. *** Specifications vary by CPU types. **** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

network

Wireless: Wi-Fi 7* - 2x2 Wi-Fi 7 (802.11be) - Supports 2.4/5/6GHz frequency band** - Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. - Bluetooth v5.4*** — *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
LAN Speed: 100/1000/2500 Mbps
LAN: 1 Port

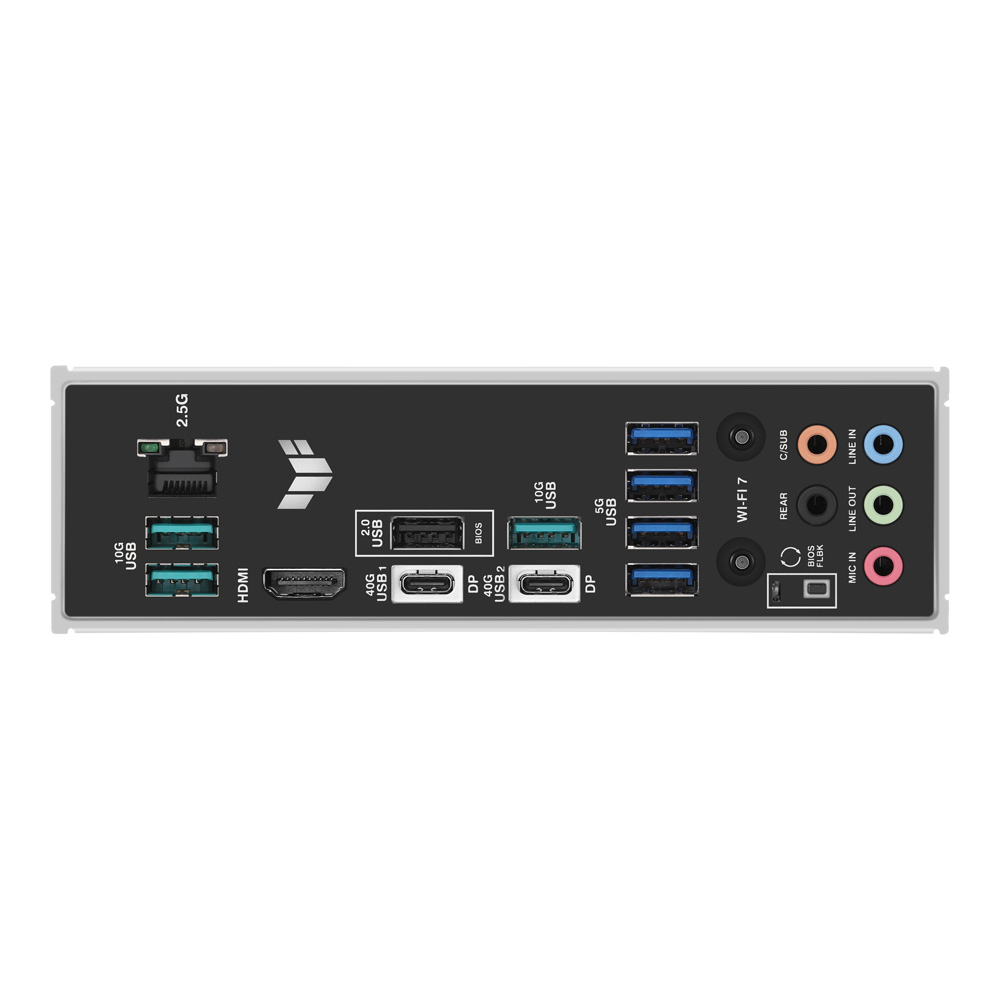

Back Panel I/O Ports

USB 3.2: 2 x USB4 (40Gbps) (2 x USB Type-C) 3 x USB 10Gbps (3 x Type-A) 4 x USB 5Gbps (4 x Type-A) Port
Additional: 1 x Wi-Fi module 1 x BIOS FlashBack button
