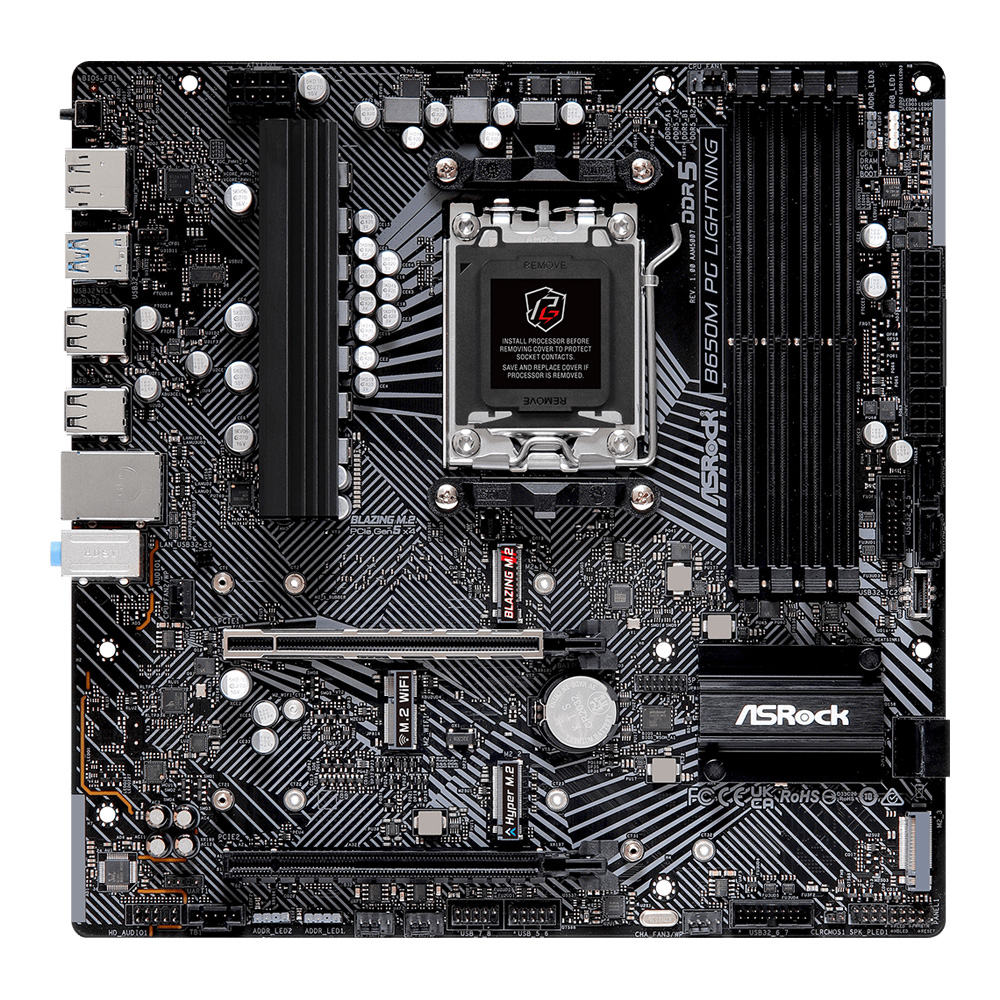

MAINBOARD (เมนบอร์ด) ASROCK B650M PG LIGHTNING - AMD SOCKET AM5 DDR5 MICRO-ATX

Name: MAINBOARD (เมนบอร์ด) ASROCK B650M PG LIGHTNING - AMD SOCKET AM5 DDR5 MICRO-ATX
Brand: Asrock
SKU: 1007000077
Price: 2790 THB
Availability: InStock

MAINBOARD (เมนบอร์ด) ASROCK B650M PG LIGHTNING - AMD SOCKET AM5 DDR5 MICRO-ATX

แบรนด์ : Asrock

2,790.-

JIB Points

รับ 1 คะแนน ทุกการใช้จ่าย

฿100

พร้อมส่ง

รายละเอียดสินค้าโดยย่อ

Socket AM5 for AMD Ryzen 7000, 8000, 9000 Series Processors

• AMD B650
• DDR5, 4 x DIMM
• 1 x DP
• 1 x HDMI
• 3 x M.2 Sockets
• 4 x SATA3 Connectors
• 1 x USB 3.2 Gen1 Type-C (front)
• 1 x USB 3.2 Gen2 Type-A (rear)
• 1 x USB 3.2 Gen2 Type-C (rear)
• 2 x USB 3.2 Gen1 Type-A (rear)
• 2.5 Gigabit LAN

118ครั้ง

ขายแล้ว0ชิ้น

จำนวน

คงเหลือ 1 ชิ้น

คุณสมบัติเด่นและสเปก

รายละเอียดสเปคทั้งหมดของสินค้า

MAINBOARD (เมนบอร์ด) ASROCK B650M PG LIGHTNING - AMD SOCKET AM5 DDR5 MICRO-ATX

model

Model: B650M PG Lightning

CPU

Wattage: 170W

Graphic & Audio

mb_ob_sup_sound: - 7.1 CH HD Audio - Nahimic Audio
Audio: Realtek ALC897 Audio Codec
Graphic: Requires a CPU with Integrated Graphics. — Integrated AMD RDNA graphics (Actual support may vary by CPU) • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Storage

M.2: 3 x M.2 Sockets — CPU: • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* • 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* — * Supports NVMe SSD as boot disks Port
RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* — * Requires additional M.2 NVMe expansion cards to support RAID 10

expansion slots

Details: CPU: • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* • 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* — Chipset: • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire - 15μ Gold Contact in VGA PCIe Slot (PCIE1) — * Supports NVMe SSD as boot disks

network

LAN Speed: 10/100/1000/2500 Mbps
LAN: 1 Port

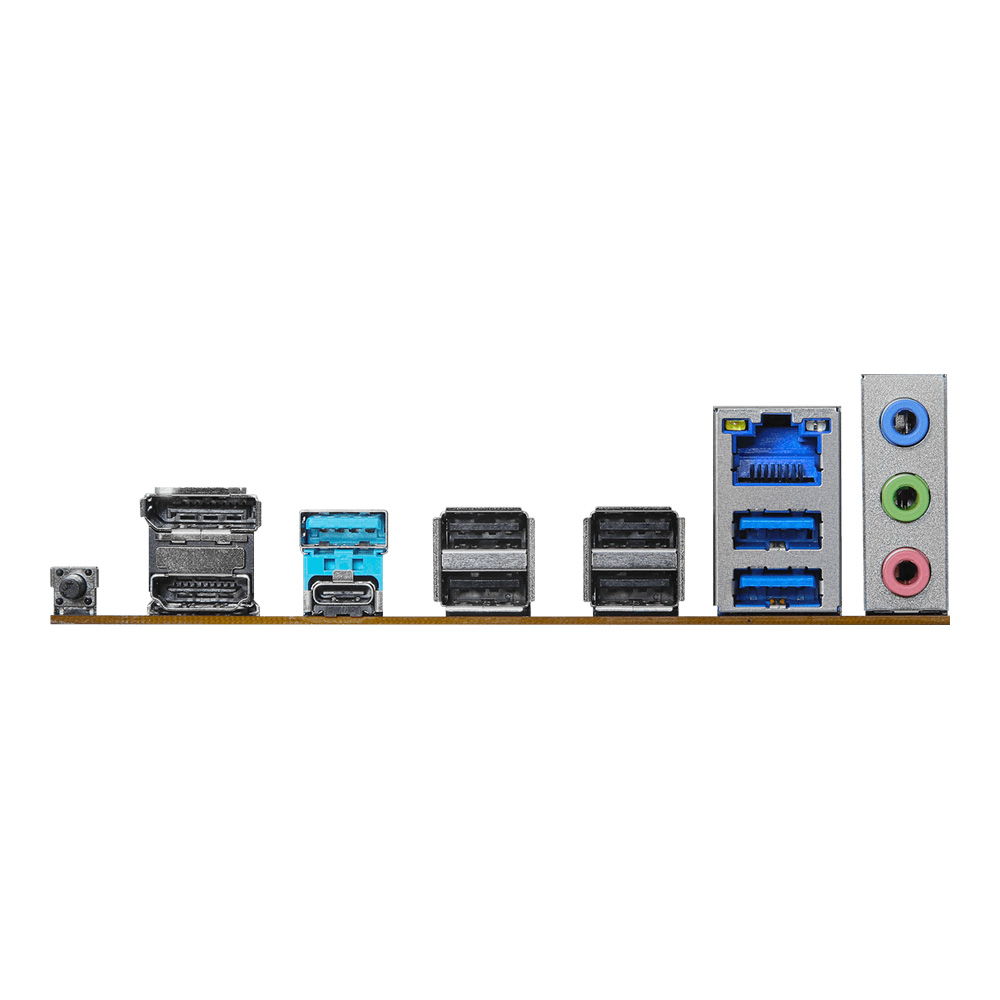

Back Panel I/O Ports

USB 3.2: 1 x USB 3.2 Gen2 Type-A (10 Gb/s) 1 x USB 3.2 Gen2 Type-C (10 Gb/s) 2 x USB 3.2 Gen1 Type-A Port
Additional: 2 x Antenna Mounting Points 1 x BIOS Flashback Button

Form Factor

Power Connector: 24 + 8 Pin
Dimension: 24.4 x 24.4 cm

รายละเอียดสินค้า

ภาพรวม จุดเด่น และข้อมูลการใช้งาน

Optimized VRM Design

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

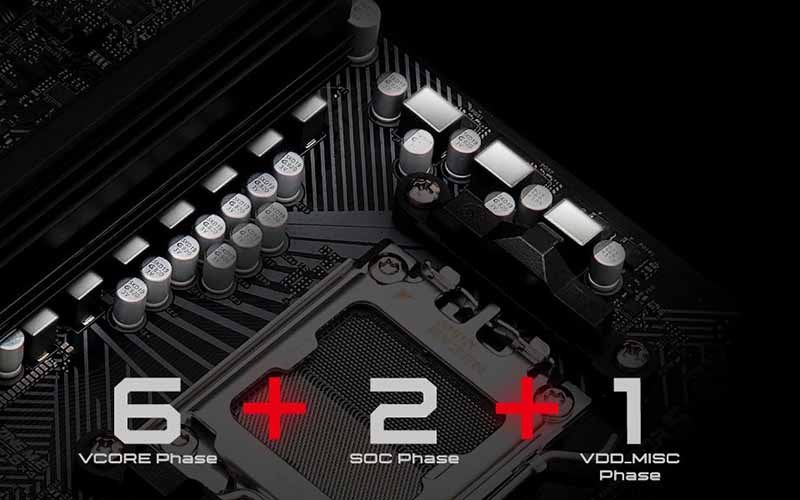

6+2+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

DDR5 EXPO & XMP Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. All B650 motherboards are built with 6-Layer PCB design, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 7200MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/ Intel® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

* There are certain risks involved with memory overclocking and may affect your system’s stability. Please realize that overclocking should be done at your own risk and expense. EXPO/XMP profile support may vary by different system configuration, memory modules and motherboard models. Please refer to Memory QVL for the completed support list.

Nahimic Audio

Audio That Matters

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality

The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.

- Static Noise Suppression

- Echo Cancellation

- Lateral Sound Cancellation

- Voice Stabilizer

Ultimate Gaming Experience

Sound Tracker

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Works on any devices!

Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

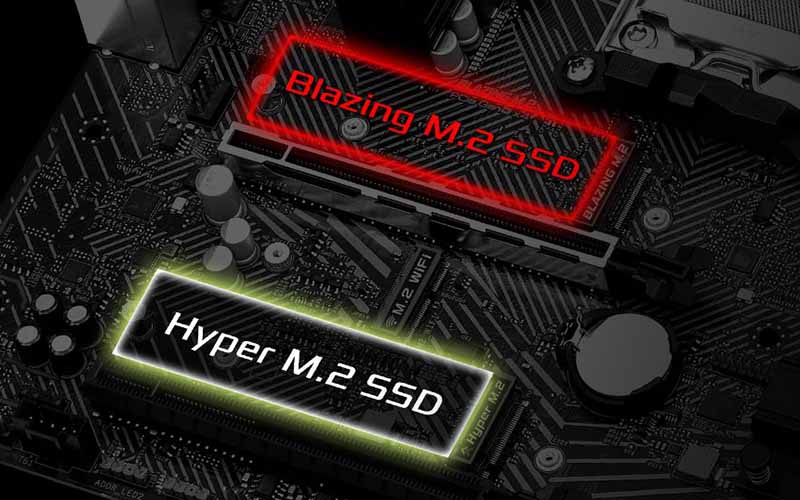

PCIe Gen5 Blazing M.2

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

Phantom Gaming 2.5 Gb/s LAN

The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.

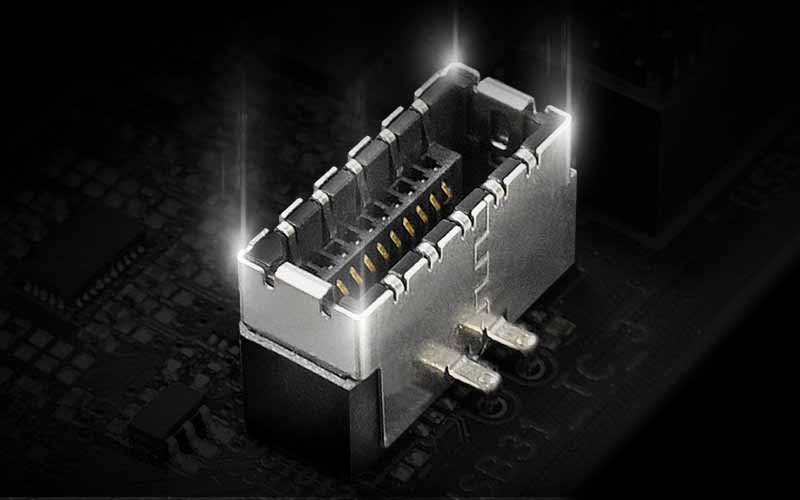

Front USB 3.2 Gen1 Type-C

Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Dual USB 3.2 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

*Charge speed may vary due to controller protocol, please make sure your device can support 3.0A charging.
