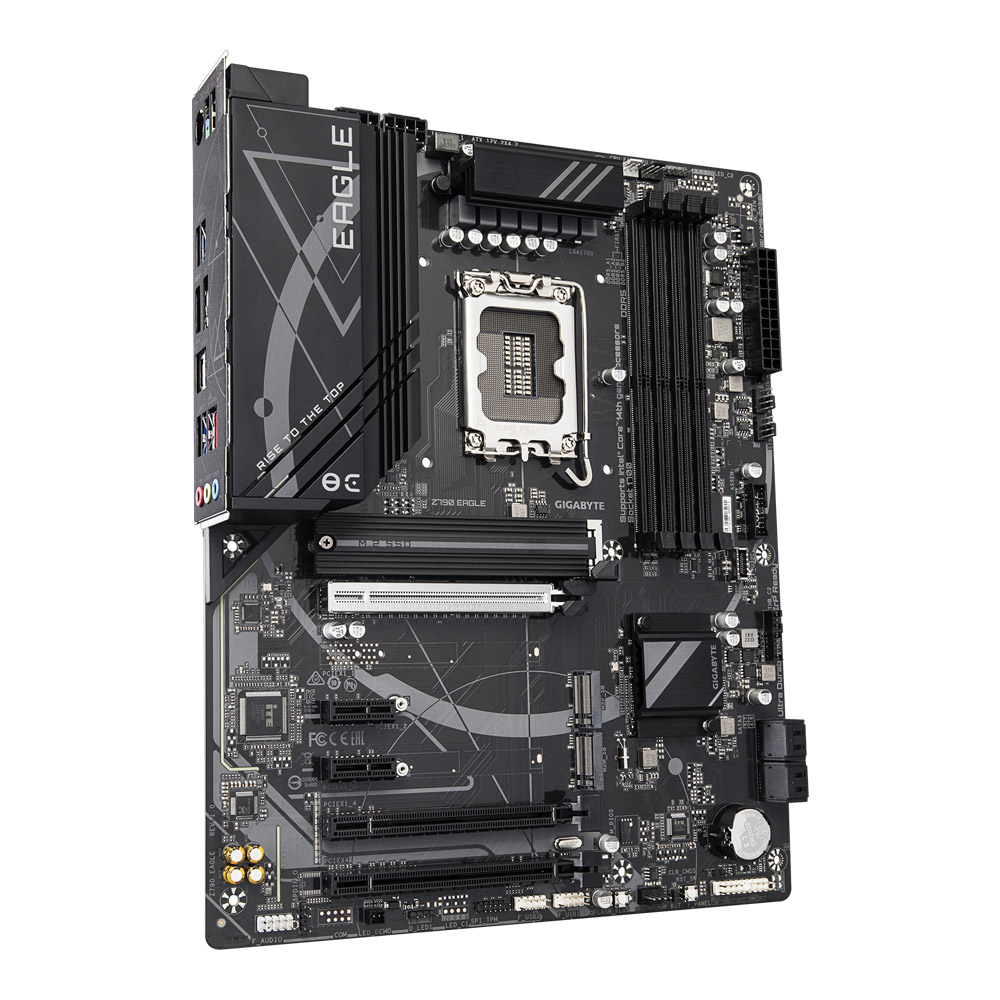

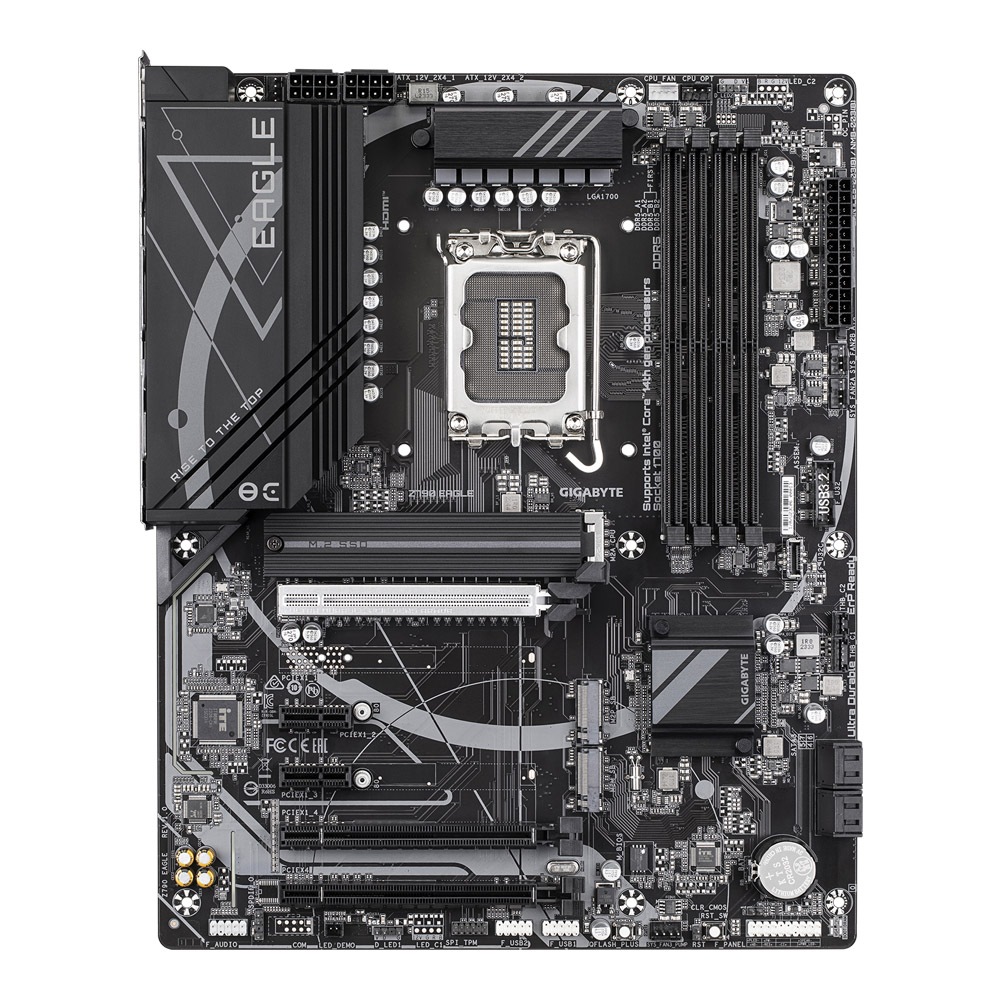

MAINBOARD (เมนบอร์ด) GIGABYTE Z790 EAGLE (REV. 1.0) (SOCKET LGA 1700 DDR5 ATX)

Name: MAINBOARD (เมนบอร์ด) GIGABYTE Z790 EAGLE (REV. 1.0) (SOCKET LGA 1700 DDR5 ATX)
Brand: Gigabyte
SKU: 1007000042
Price: 6690 THB
Availability: InStock

MAINBOARD (เมนบอร์ด) GIGABYTE Z790 EAGLE (REV. 1.0) (SOCKET LGA 1700 DDR5 ATX)

แบรนด์ : Gigabyte

6,690.-

JIB Points

รับ 1 คะแนน ทุกการใช้จ่าย

฿100

พร้อมส่ง

รายละเอียดสินค้าโดยย่อ

Socket LGA1700 for Intel 12th, 13th & 14th Gen Processors

• Intel Z790
• DDR5, 4 x DIMM
• 1 x DP
• 1 x HDMI
• 3 x M.2 Connectors
• 4 x SATA 6Gb/s connectors
• 1 x USB 3.2 Gen 1 TypeC header (front)
• 1 x USB 3.2 Gen 2 TypeC (rear)
• 1 x USB 3.2 Gen 2 TypeA (rear)
• 1 x PS/2
• 2.5GbE LAN

44ครั้ง

ขายแล้ว0ชิ้น

จำนวน

คงเหลือ 5 ชิ้น

คุณสมบัติเด่นและสเปก

รายละเอียดสเปคทั้งหมดของสินค้า

MAINBOARD (เมนบอร์ด) GIGABYTE Z790 EAGLE (REV. 1.0) (SOCKET LGA 1700 DDR5 ATX)

model

Model: Z790 EAGLE (rev. 1.0)

CPU

Wattage: 150W

Graphic & Audio

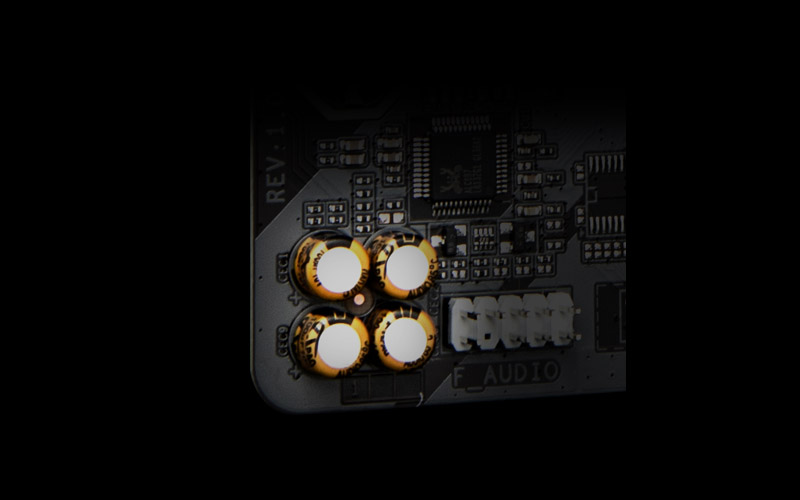

mb_ob_sup_sound: • High Definition Audio • 2/4/5.1/7.1-channel • Support for S/PDIF Out * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Audio: Realtek Audio CODEC
Graphic: Requires a CPU with Integrated Graphics. — Integrated Graphics Processor-Intel® HD Graphics support: • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. • 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 — (Graphics specifications may vary depending on CPU support.)

Storage

M.2: 3 x M.2 Connectors — CPU: • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) — Chipset: • 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) • 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) Port
RAID: • RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices • RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

expansion slots

Details: CPU: • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. — Chipset: • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) • 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)

network

LAN Speed: 100/1000/2500 Mbps
LAN: 1 Port

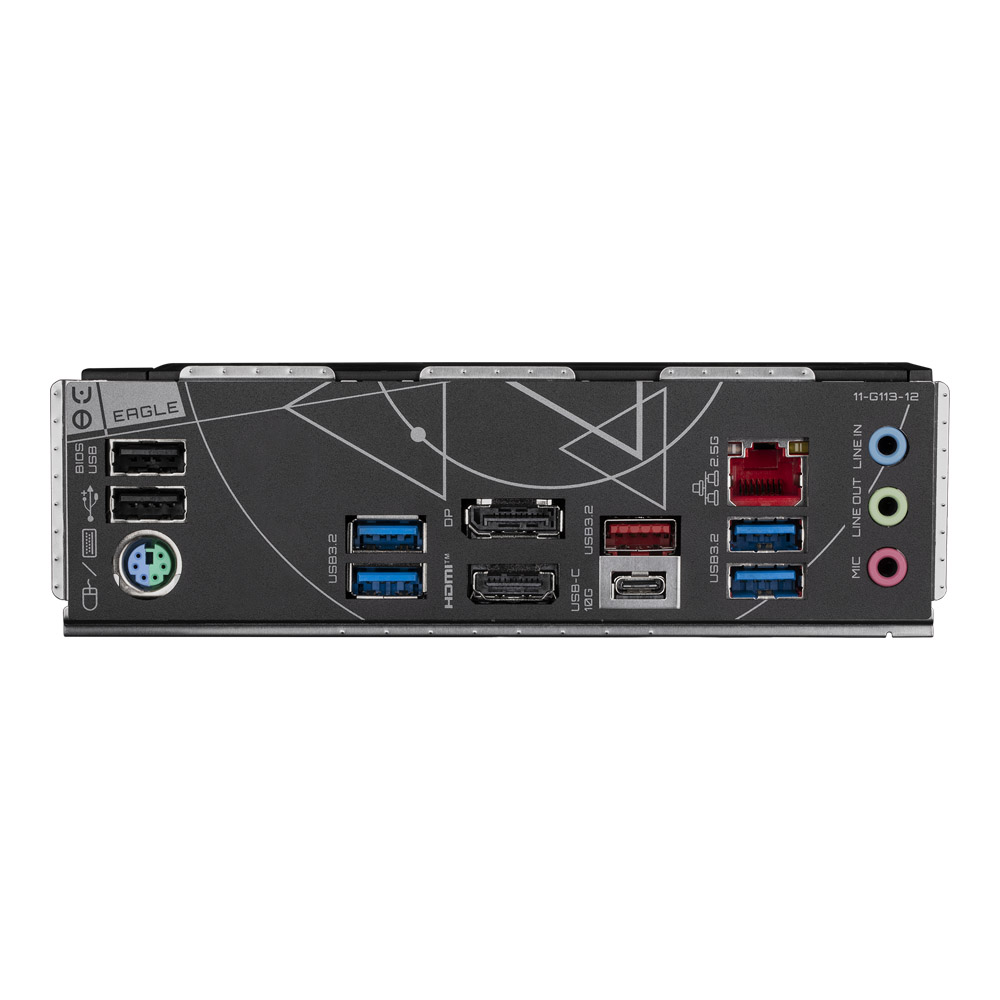

Back Panel I/O Ports

USB 3.2: 1 x USB 3.2 Gen 2 Type-C 1 x USB 3.2 Gen 2 Type-A (red) 4 x USB 3.2 Gen 1 Type-A Port
PS/2: 1 (Keyboard/Mouse combo) Port

Form Factor

Power Connector: 24 + 8 + 8 Pin
Dimension: 30.5 x 24.4 cm

รายละเอียดสินค้า

ภาพรวม จุดเด่น และข้อมูลการใช้งาน

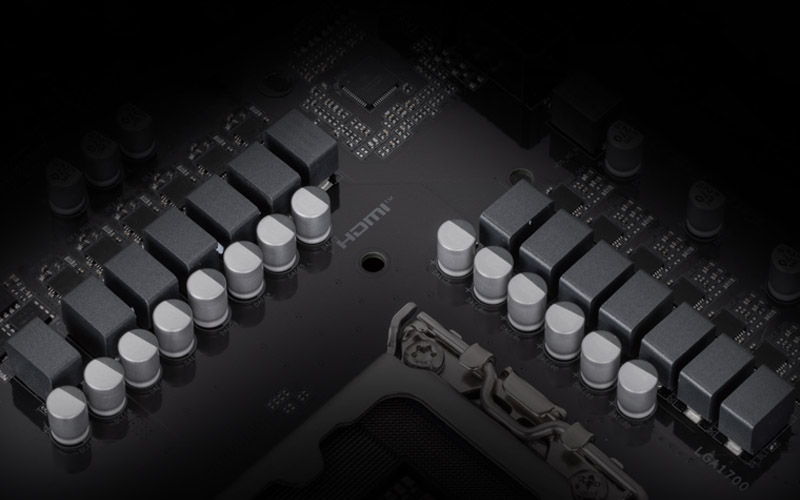

Digital VRM Design

The best VRM design ever built with the highest quality components.

12+1+1 Phases digital PWM + Low RDS(on) MOSFETs

Unlock DDR5

DDR5 Overclocking Up to 7600 and Beyond*

GIGABYTE is offering a tested and proven platform with extreme memory performance boost.

* Memory overlocking and XMP profile support may vary depending on hardware configuration.

* Please see the complete validated memory support list. Product features may vary by model.

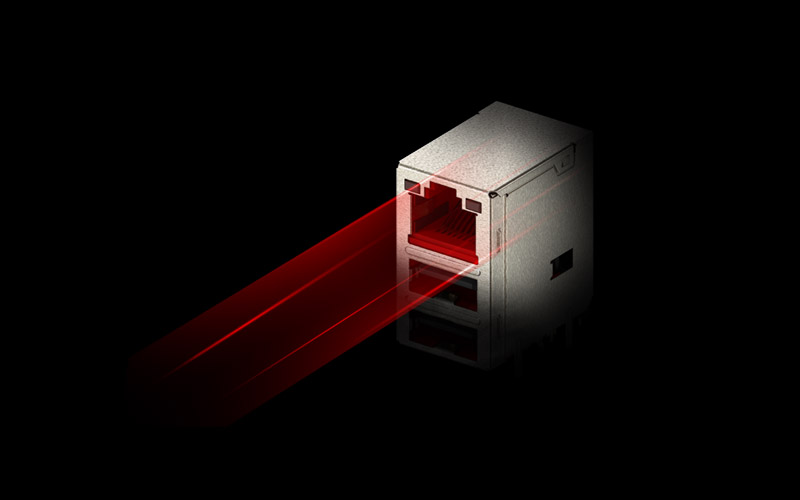

2.5GbE LAN

Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.

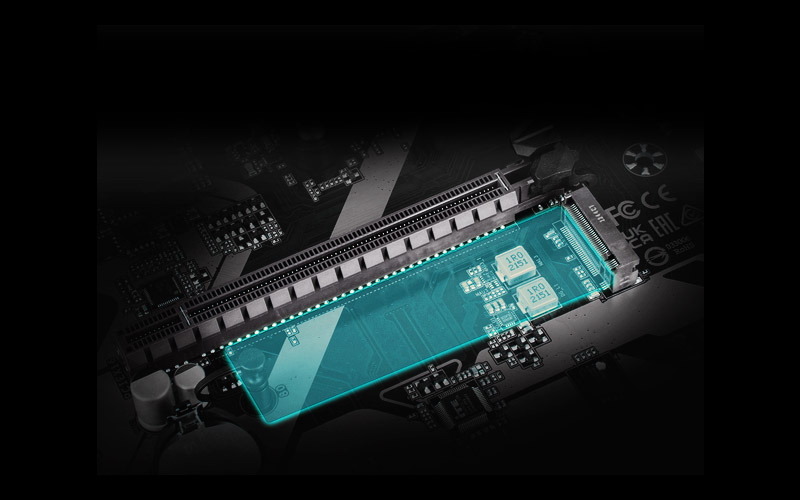

PCIe 5.0 / 4.0 Hardware Design

Featuring PCIe 5.0 x16 slot and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 5.0/ 4.0 devices to provide the superior performance.

* The picture is for reference and may vary by mode.
