MAINBOARD (เมนบอร์ด) GIGABYTE B550 AORUS ELITE V2 (REV. 1.5) - AMD SOCKET AM4 DDR4 ATX
MAINBOARD (เมนบอร์ด) GIGABYTE B550 AORUS ELITE V2 (REV. 1.5) - AMD SOCKET AM4 DDR4 ATX
แบรนด์ : Gigabyte
สินค้าหมดชั่วคราว
กด “แจ้งเตือนเมื่อมีสินค้า” ด้านล่าง เราจะรีบแจ้งทันทีที่สินค้ากลับมา
รายละเอียดสินค้าโดยย่อ
Socket AM4 for AMD Ryzen 5000, 5000 G, 4000, 4000 G, 3000, 3000 G, Series Processors
- • AMD B550
- • DDR4, 4 x DIMM
- • 1 x DP
- • 1 x HDMI
- • 2 x M.2 Connectors
- • 4 x SATA 6Gb/s connectors
- • 1 x USB 3.2 Gen 1 Type-C header (front)
- • 3 x USB 3.2 Gen 1 Type-A (rear)
- • 2 x USB 2.0/1.1 Type-A (rear)
- • 2.5GbE LAN
- • RGB Fusion
14ครั้ง
ขายแล้ว0ชิ้น
คุณสมบัติเด่นและสเปก
รายละเอียดสเปคทั้งหมดของสินค้า
MAINBOARD (เมนบอร์ด) GIGABYTE B550 AORUS ELITE V2 (REV. 1.5) - AMD SOCKET AM4 DDR4 ATX
model
- Model
- B550 AORUS ELITE V2 (rev. 1.5)
CPU
- Wattage
- 105W
Graphic & Audio
- mb_ob_sup_sound
- • High Definition Audio • 2/4/5.1/7.1-channel • Support for S/PDIF Out
- Audio
- 5 x Audio jacks 1 x Optical S/PDIF out Port
- Graphic
- Requires a CPU with Integrated Graphics. — Integrated Graphics Processor: • 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. — Maximum shared memory of 16 GB
Storage
- M.2
- 2 x M.2 Connectors — • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: - AMD Ryzen 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs - AMD Ryzen 5000 G-Series/4000 G-Series/3000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs — • 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: - Supporting SATA and PCIe 3.0 x4/x2 SSDs Port
- RAID
- RAID 0, RAID 1, RAID 10 for SATA storage devices
expansion slots
- Details
- • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 5000 Series* and Ryzen 3000 Series Processors support PCIe 4.0 x16 mode * Actual support may vary by AMD CPU's specification - AMD Ryzen 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. — • 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: - Supporting PCIe 3.0 x2 mode — • 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset: - Supporting PCIe 3.0 x1 mode — • 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset: - Supporting PCIe 3.0 x1 mode
network
- LAN Speed
- 100/1000/2500 Mbps
- LAN
- 1 Port

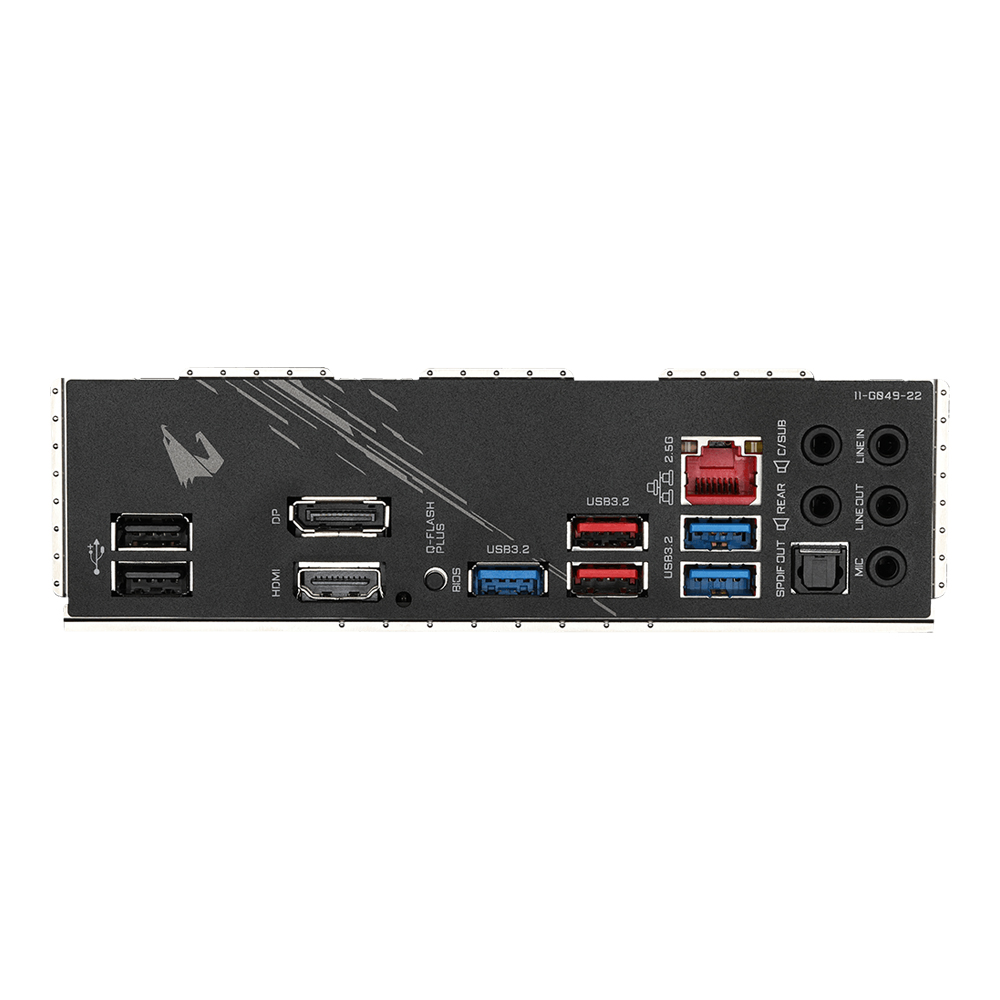

Back Panel I/O Ports
- USB 3.2
- 2 x USB 3.2 Gen 2 Type-A*/USB 3.2 Gen 1 (red) * For AMD Ryzen 5000 Series/3000 Series Processors only. 3 x USB 3.2 Gen 1 Type-A Port
- Additional
- 1 x Q-Flash Plus button
Form Factor
- Power Connector
- 24 + 8 Pin
- Dimension
- 30.5 x 24.4 cm
รายละเอียดสินค้า
ภาพรวม จุดเด่น และข้อมูลการใช้งาน

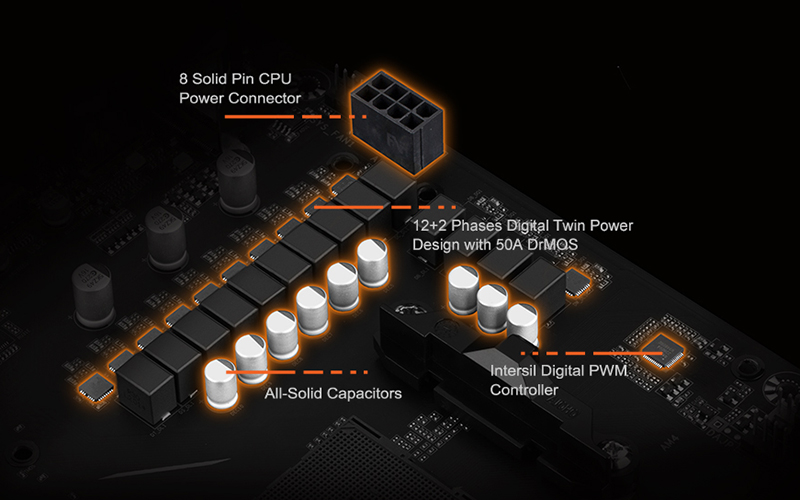

12*+2 Phases Digital Twin Power Design
• Digital PWM Controller delivers appropriate voltage to the CPU
• With 12+2 Phases 50A DrMOS, each power phase connects to the CPU and provides more balanced and efficient power delivery. With capability to handle up to 700 Amps current in a total
• All-solid capacitors to improve Transient response and minimize oscillation
• 24pin+8pin Solid Pin CPU Power Connectors
B550 AORUS ELITE V2 motherboard uses a 12+2 phases Digital Twin Power Design which includes PWM controller, DrMOS and Ferrite core choke as high quality selected components. These 100% digital controller offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from 3rd Gen AMD Ryzen™ processors.
*6+6 Phases parallel power design

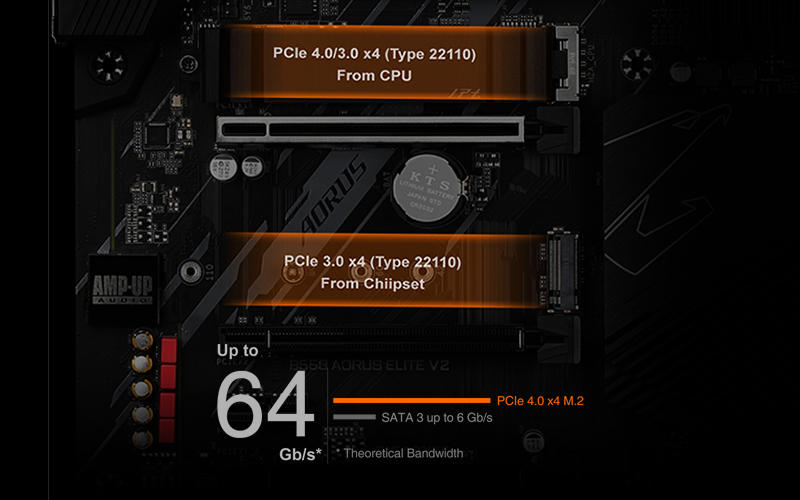

2X M.2 PCIe 4.0/3.0
Dual NVMe M.2 PCIe SSDs in RAID 0 Support
Performance with PCIe 4.0 x4 + PCIe 3.0 x4 NVMe PCIe SSDs
B550 AORUS motherboards offer the industry's best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design can be configured in RAID for record speeds of up to 6560 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.

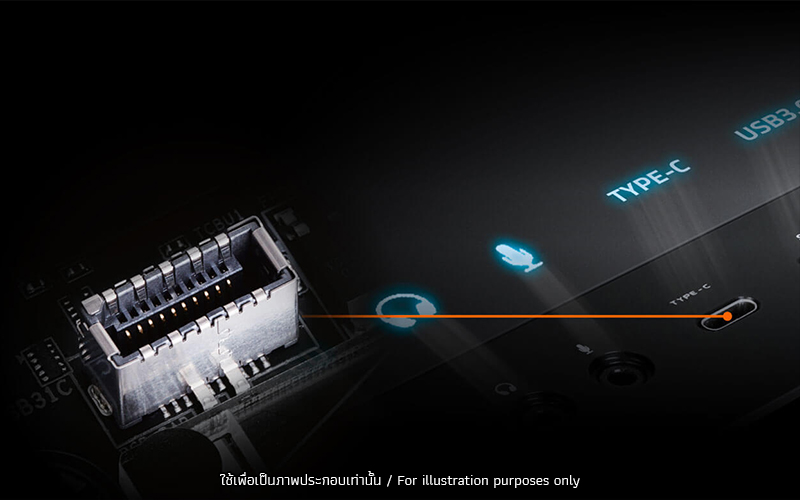

Front USB Type-C™
USB Type-C™ Front Panel Connector
Equipped with next generation connectivity, AORUS Gaming Motherboards already support the chassis of the future. The onboard USB Type-C™ header for USB 3.2 Gen1 makes access convenient when connecting a USB 3.2 Gen1 device or charging your mobile device.
HI-FI Audio System
For enthusiasts, sound quality is just as essential to the gaming experience. B550 motherboards are equipped with high quality audio components such as Hi-Fi grade WIMA FKP2 capacitors and Nichicon Fine Gold capacitors to provide a superb audio experience. The exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.

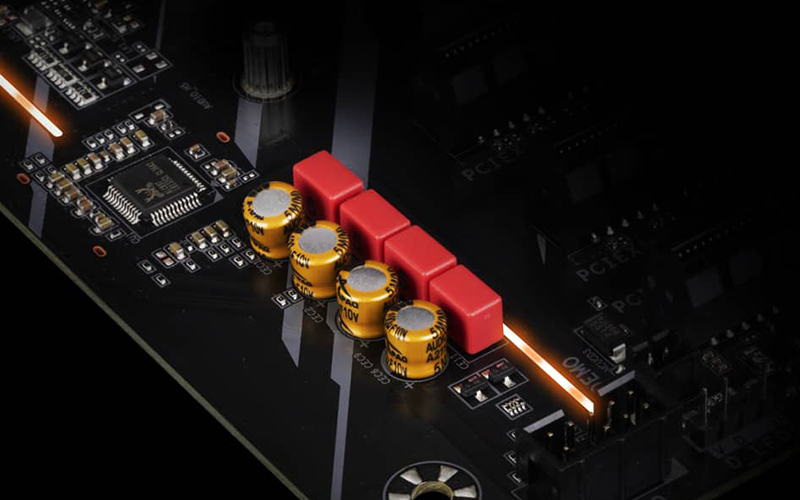

High-End WIMA & Audio Capacitors
The AORUS motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end audio capacitors. While the high-end audio capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.
Audio Noise Guard
AORUS motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.

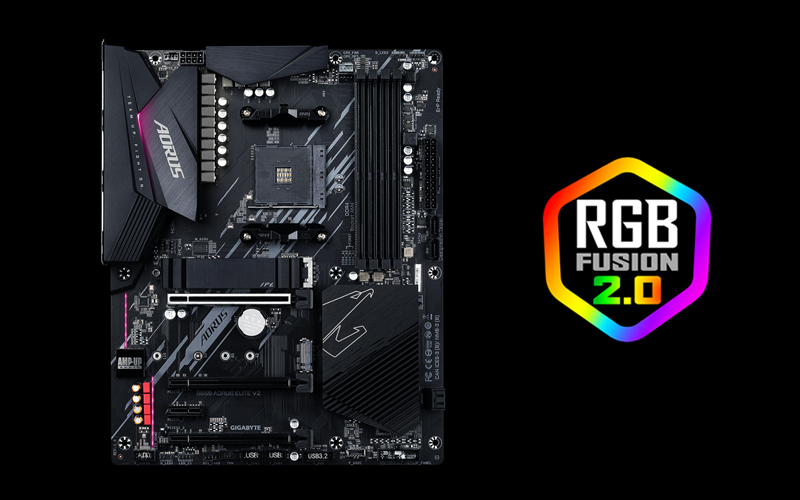

RGB FUSION 2.0
Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
Source : Gigabyte B550 AORUS ELITE V2 (rev. 1.5)
