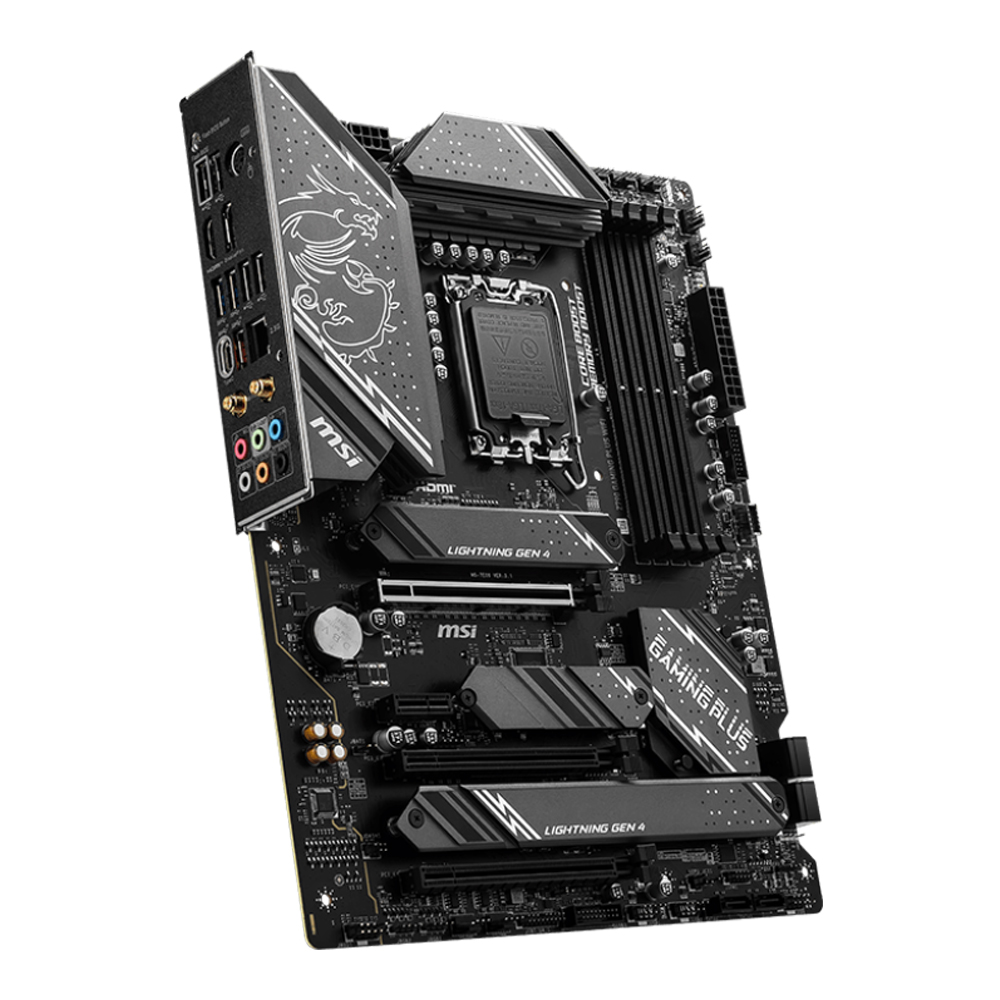

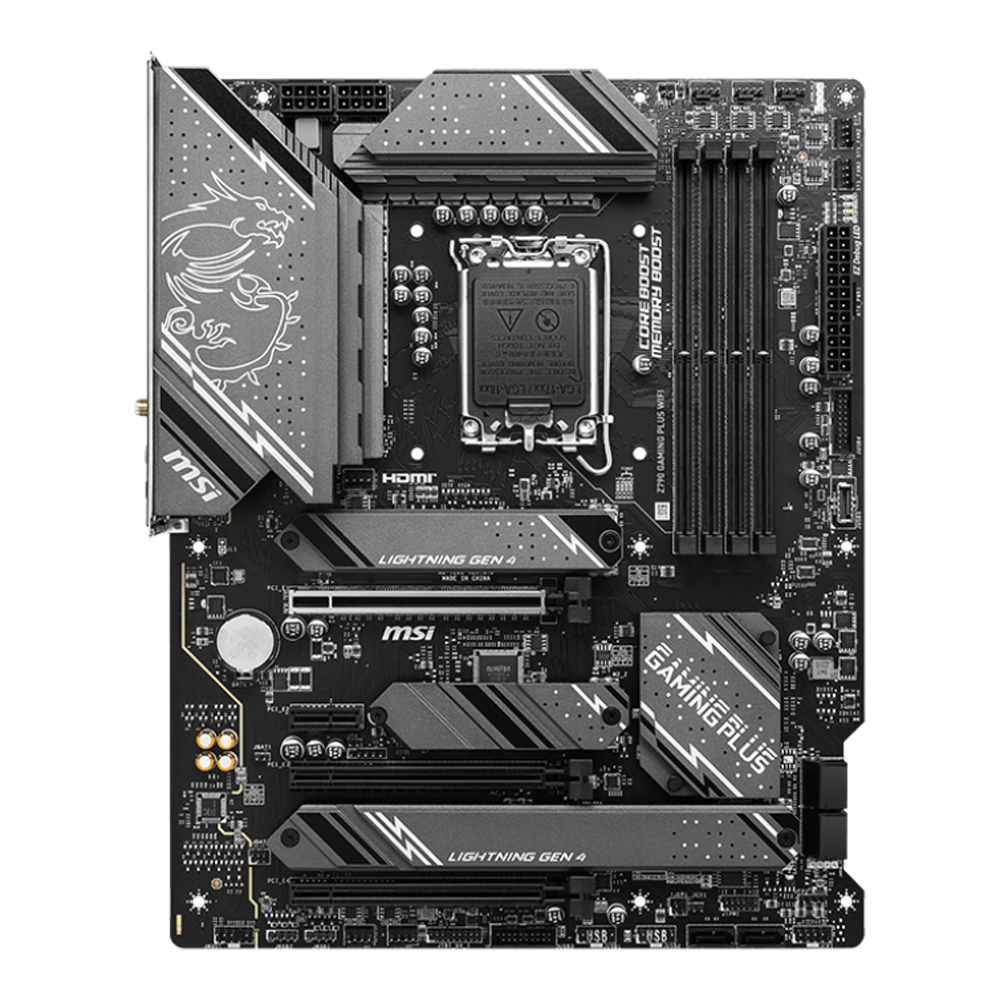

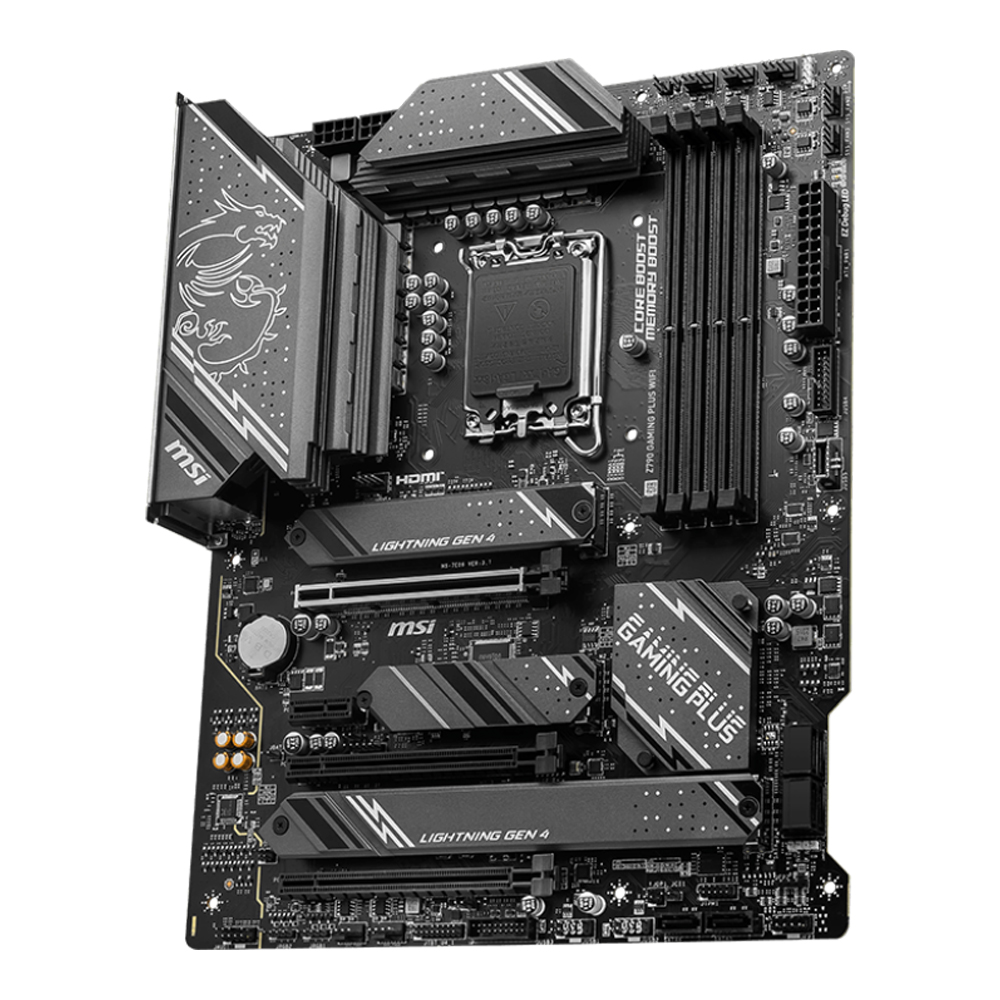

MAINBOARD (เมนบอร์ด) MSI Z790 GAMING PLUS WIFI - INTEL SOCKET 1700 DDR5 ATX

Name: MAINBOARD (เมนบอร์ด) MSI Z790 GAMING PLUS WIFI - INTEL SOCKET 1700 DDR5 ATX
Brand: MSI
SKU: 1007000017
Availability: InStock

MAINBOARD (เมนบอร์ด) MSI Z790 GAMING PLUS WIFI - INTEL SOCKET 1700 DDR5 ATX

แบรนด์ : MSI

JIB Points

รับ 1 คะแนน ทุกการใช้จ่าย

฿100

พร้อมส่ง

รายละเอียดสินค้าโดยย่อ

Socket LGA1700 for Intel 12th, 13th & 14th Gen Processors

• Intel Z790
• DDR5, 4 x DIMM
• 1 x DP
• 1 x HDMI
• 4 x M.2 Slots
• 6 x SATA 6Gb/s ports
• 1 x USB 3.2 Gen 2 Type-C header (front)
• 1 x USB 3.2 Gen 2x2 Type-C (rear)
• 1 x USB 3.2 Gen 2 Type-A (rear)
• 1 x PS/2
• 2.5Gbps LAN
• Wi-Fi 6E
• Bluetooth 5.3

35ครั้ง

ขายแล้ว0ชิ้น

จำนวน

คงเหลือ 2 ชิ้น

คุณสมบัติเด่นและสเปก

รายละเอียดสเปคทั้งหมดของสินค้า

MAINBOARD (เมนบอร์ด) MSI Z790 GAMING PLUS WIFI - INTEL SOCKET 1700 DDR5 ATX

model

Model: Z790 GAMING PLUS WIFI

CPU

Wattage: 150W

Graphic & Audio

mb_ob_sup_sound: 7.1-Channel High Definition Audio
Audio: Realtek ALC897
Graphic: Requires a CPU with Integrated Graphics. — • 1 x HDMI Support HDMI 2.1 HDR, maximum resolution of 4K 60Hz* • 1 x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* — *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Storage

M.2: 4x M.2 slots (Key M) — • M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 2242/ 2260/ 2280/ 22110 storage devices • M2_2 slot (From Z790 chipset) Supports up to PCIe 4.0 x4 2242/ 2260/ 2280 storage devices • M2_3 slot (From Z790 chipset) Supports up to PCIe 4.0 x4 & SATA 6Gb/s 2242/ 2260/ 2280 storage devices • M2_4 slot (From Z790 chipset) Supports up to PCIe 4.0 x4 & SATA 6Gb/s 2242/ 2260/ 2280 storage device Port
RAID: RAID 0, RAID 1, RAID 5, RAID 10 for SATA storage devices RAID 0, RAID 1, RAID 5, RAID 10 for PCIe / NVMe storage devices

expansion slots

Details: • 3 x PCIe x16 slots - PCI_E1 slot (From CPU) Supports up to PCIe 5.0 x16 - PCI_E3 & PCI_E4 slots (From Z790 chipset) PCI_E3 supports up to PCIe 4.0 x4 PCI_E4 supports up to PCIe 3.0 x1 — • 1 x PCIe x1 slot (From Z790 chipset) - PCI_E2 supports up to PCIe 3.0 x1

network

Wireless: Intel Wi-Fi 6E - The Wireless module is pre-installed in the M.2 (Key-E) slot - Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps - Supports 802.11 a/ b/ g/ n/ ac/ ax - Supports Bluetooth 5.3**, FIPS, FISMA — *The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details
LAN Speed: 100/1000/2500 Mbps
LAN: 1 Port

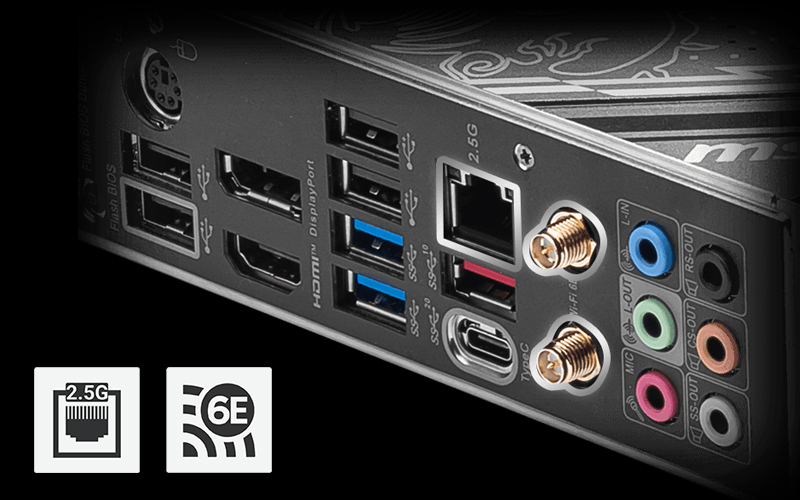

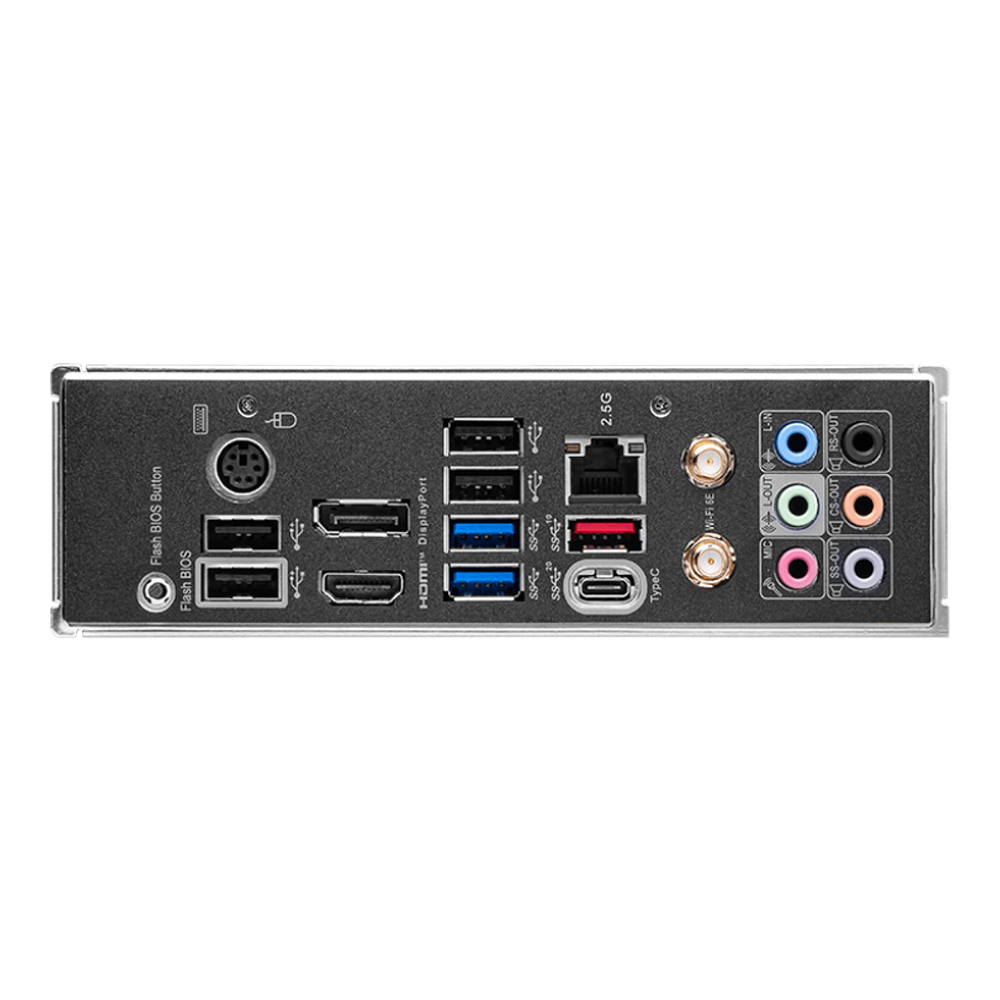

Back Panel I/O Ports

USB 3.2: 2 x USB 3.2 Gen 1 5Gbps Type-A 1 x USB 3.2 Gen 2 10Gbps Type-A 1 x USB 3.2 Gen 2x2 20Gbps Type-C Port
PS/2: 1 (Keyboard/Mouse combo) Port
Additional: 1 x Flash BIOS button 2 x Wi-Fi Antenna connectors

Form Factor

Power Connector: 24 + 8 + 8 Pin
Dimension: 30.5 x 24.4 cm

รายละเอียดสินค้า

ภาพรวม จุดเด่น และข้อมูลการใช้งาน

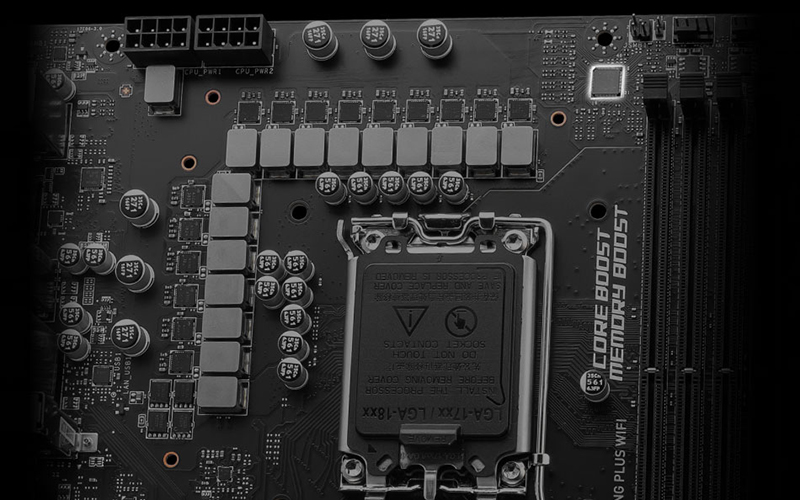

14+1+1 POWER DESIGN

Unleash and sustain the maxium performance with a VRM design bult with a total of 14 + 1 + 1 power design. Combining dual power connectorsand exclusive Core Boost technology, Z790 GAMING PLUS WIFI is ready for the challenge of high-end processors.

• 14 PHASE CORE POWER DRMOS / 55A
• 1 PHASE GT POWER
• 1 PHASE AUX POWER

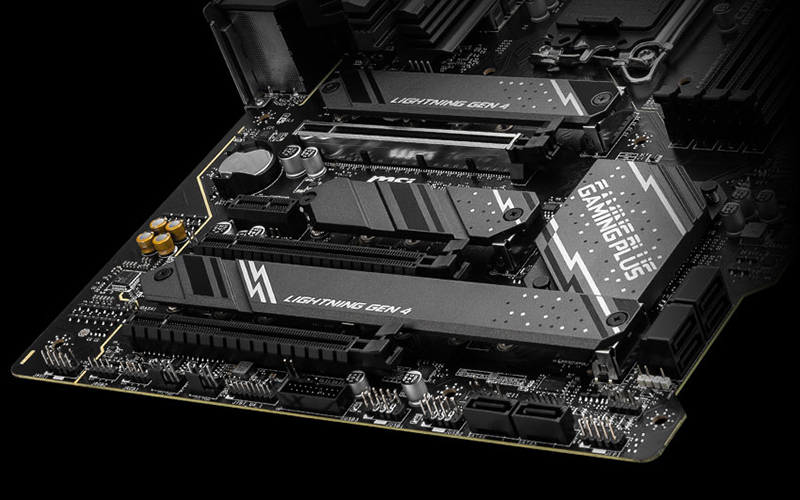

FAST AND FUTURE-READY STORAGE

Z790 GAMING PLUS WIFI motherboard supports all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

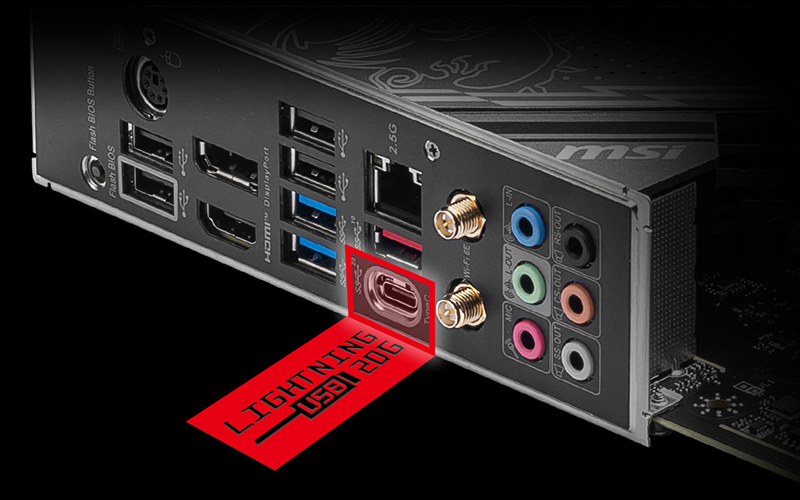

DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G

Using USB 3.2 devices has never been faster! Z790 GAMING PLUS WIFI motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.

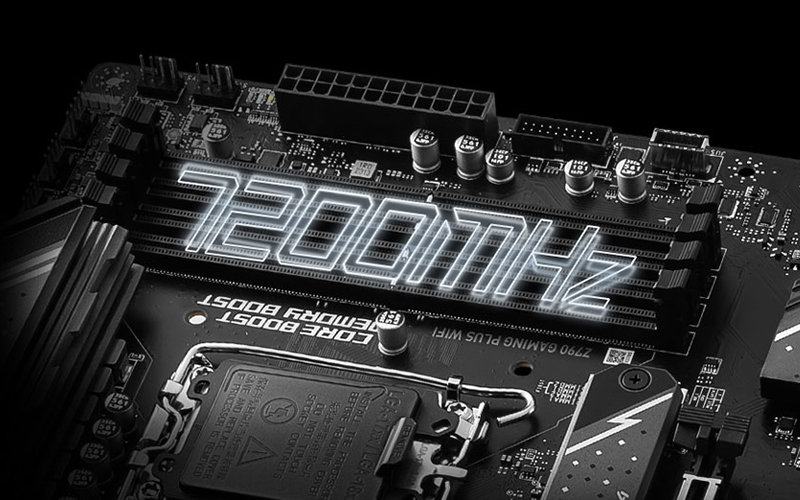

LATEST DDR5 MEMORY WITH SMT SLOT

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, Z790 GAMING PLUS WIFI is ready to deliver the world class memory performance.
