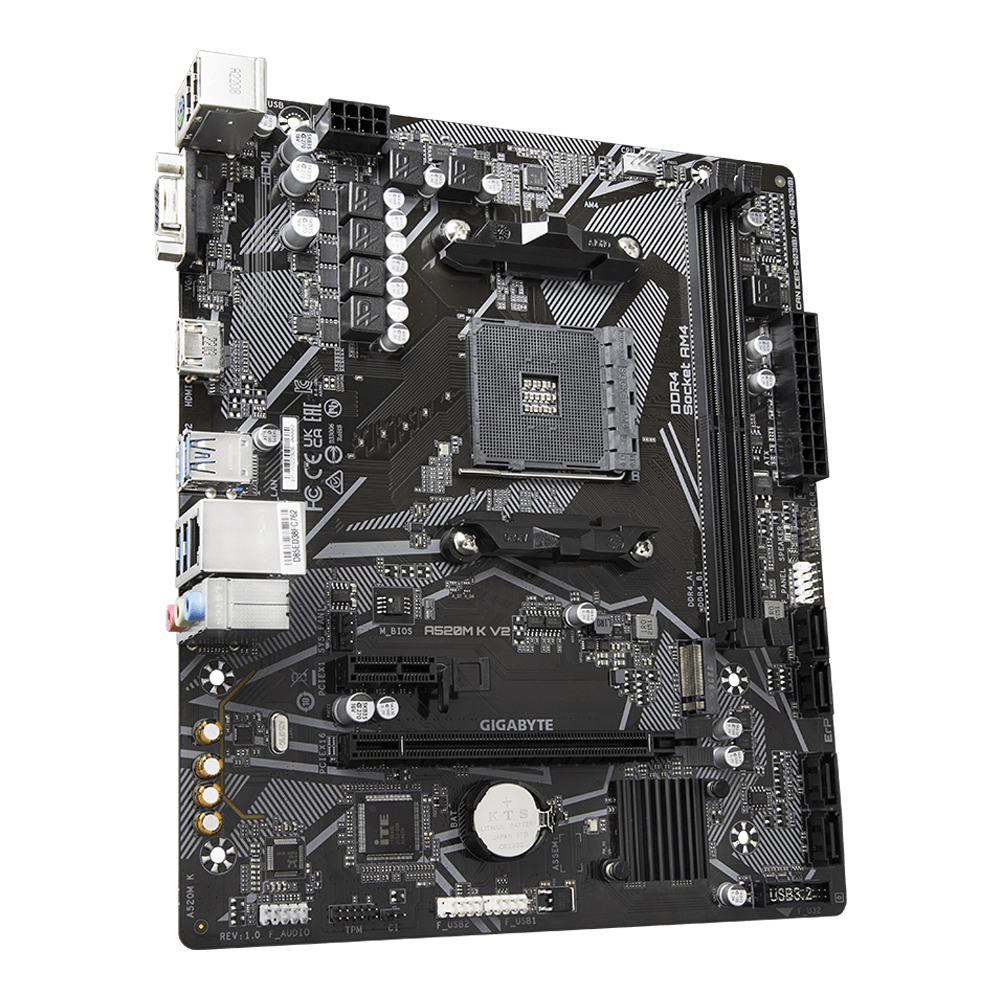

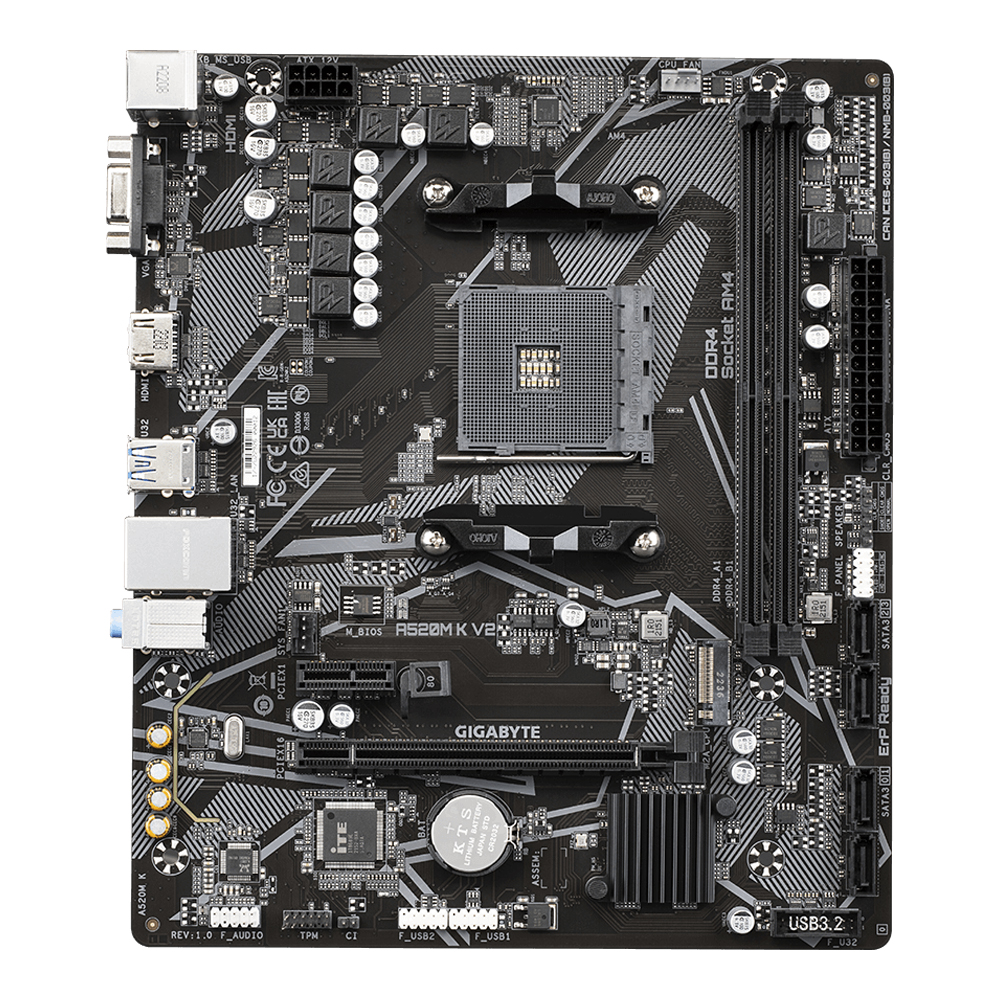

MAINBOARD (เมนบอร์ด) GIGABYTE A520M K V2 (REV. 1.1) - AMD SOCKET AM4 DDR4 MICRO-ATX

Name: MAINBOARD (เมนบอร์ด) GIGABYTE A520M K V2 (REV. 1.1) - AMD SOCKET AM4 DDR4 MICRO-ATX
Brand: Gigabyte
SKU: 1007000014
Price: 1360 THB
Availability: InStock

MAINBOARD (เมนบอร์ด) GIGABYTE A520M K V2 (REV. 1.1) - AMD SOCKET AM4 DDR4 MICRO-ATX

แบรนด์ : Gigabyte

1,360.-

JIB Points

รับ 1 คะแนน ทุกการใช้จ่าย

฿100

พร้อมส่ง

รายละเอียดสินค้าโดยย่อ

Socket AM4 for AMD Ryzen 3000, 3000 G, 4000, 4000 G, 5000, 5000 G Series Processors

• AMD A520
• DDR4, 2 x DIMM
• 1 x HDMI
• 1 x D-Sub
• 1 x M.2 connector

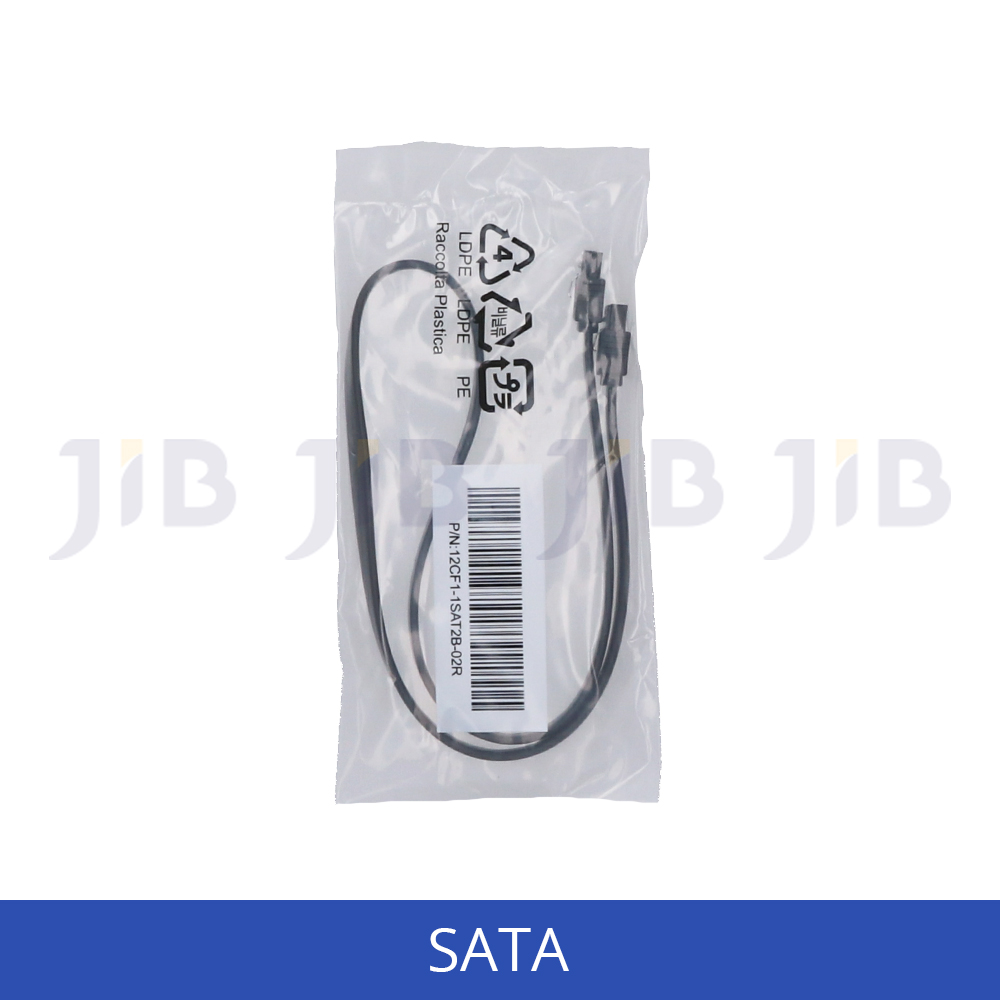

• 4 x SATA 6Gb/s connectors
• 1 x USB 3.2 Gen 1 Type-A header (front)
• 4 x USB 3.2 Gen 1 Type-A (rear)
• 1 x PS/2
• GbE LAN

79ครั้ง

ขายแล้ว0ชิ้น

จำนวน

คุณสมบัติเด่นและสเปก

รายละเอียดสเปคทั้งหมดของสินค้า

MAINBOARD (เมนบอร์ด) GIGABYTE A520M K V2 (REV. 1.1) - AMD SOCKET AM4 DDR4 MICRO-ATX

model

Model: A520M K V2 (rev. 1.1)

CPU

Wattage: 105W

Graphic & Audio

mb_ob_sup_sound: 2/4/5.1/7.1-channel
Audio: Realtek
Graphic: Requires a CPU with Integrated Graphics. — Integrated Graphics Processor with AMD Radeon Graphics support: • 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. — Maximum shared memory of 16 GB

Storage

M.2: 1 x M.2 Connector — CPU: • 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) Port
RAID: RAID 0, RAID 1, RAID 10 for SATA storage devices

expansion slots

Details: CPU: • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 — Chipset: • 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

network

LAN Speed: 100/1000 Mbps
LAN: 1 Port

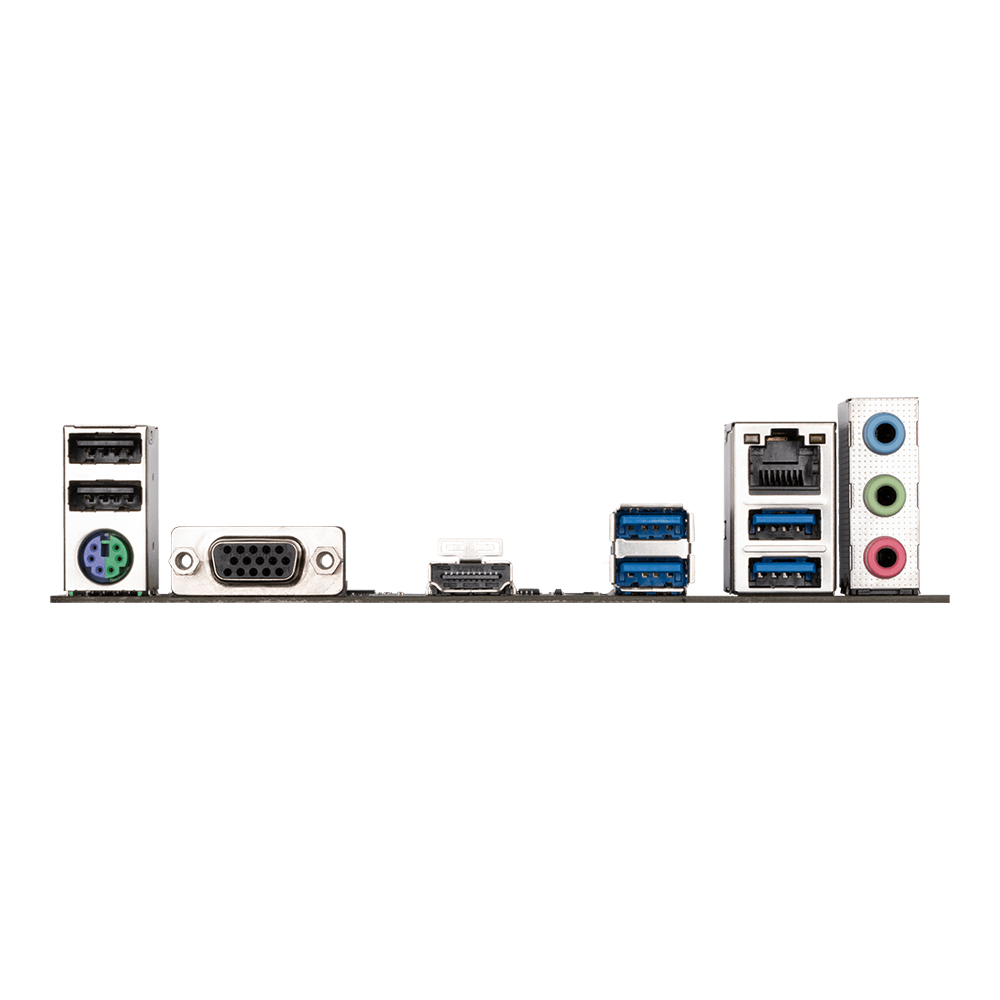

Back Panel I/O Ports

USB 3.2: 4 x USB 3.2 Gen 1 Type-A Port
PS/2: 1 (Keyboard/Mouse combo) Port

Form Factor

Power Connector: 24 + 8 Pin
Dimension: 23.3 x 19.8 cm

รายละเอียดสินค้า

ภาพรวม จุดเด่น และข้อมูลการใช้งาน

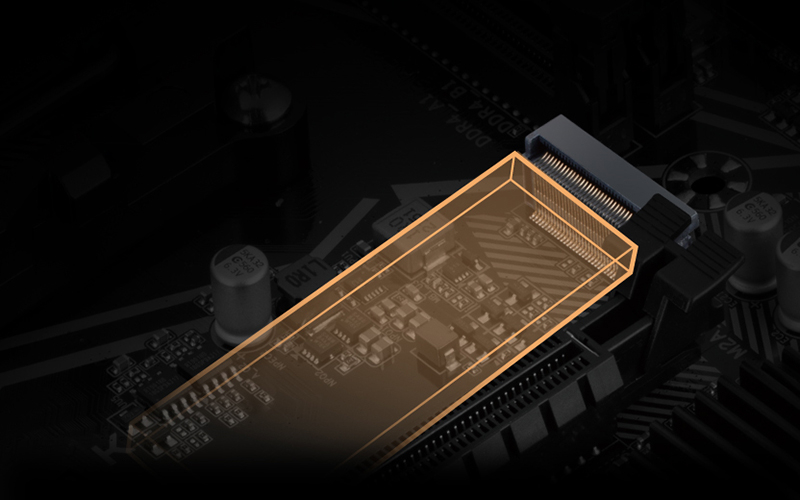

NVMe PCIe Gen 3 x4 2280 M.2 Connector

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

*Actual support may vary by CPU.

GbE LAN with Bandwidth Management

GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

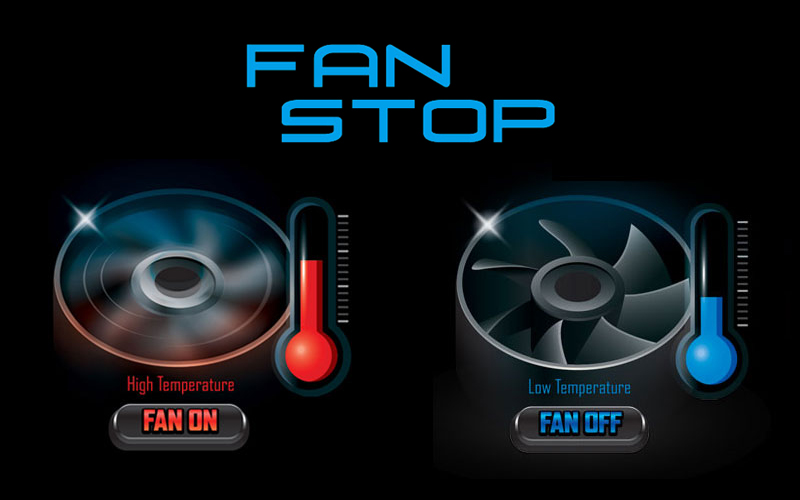

Fan Stop

Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

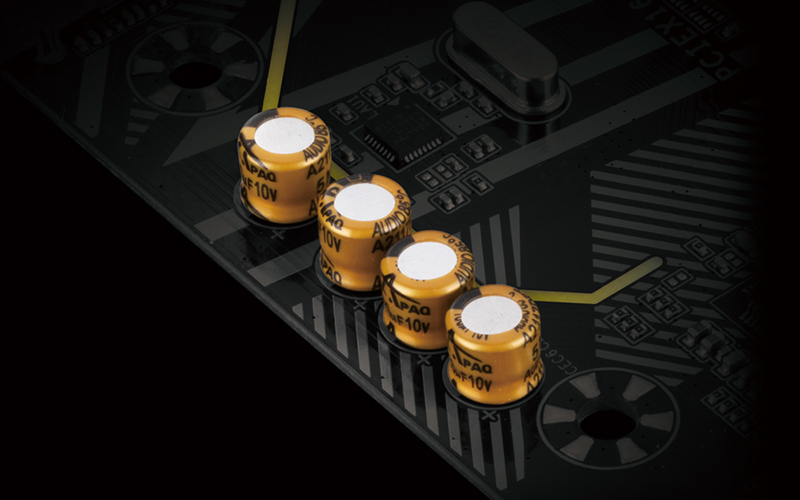

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

4K Ultra HD Support

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated AMD Radeon® Graphics via HDMI.

Source : Gigabyte A520M K V2 (rev. 1.1)
