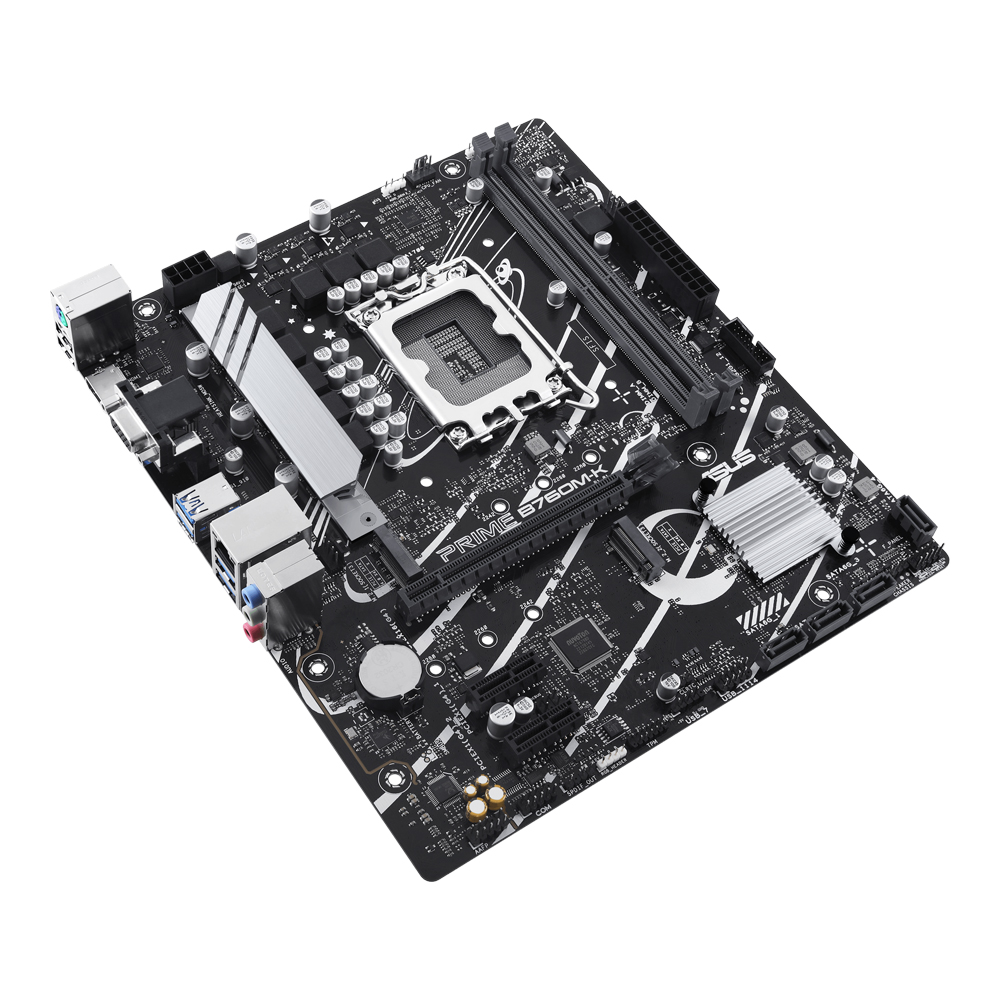

MAINBOARD (เมนบอร์ด) ASUS PRIME B760M-K - INTEL SOCKET 1700 DDR5 MICRO-ATX

Name: MAINBOARD (เมนบอร์ด) ASUS PRIME B760M-K - INTEL SOCKET 1700 DDR5 MICRO-ATX
Brand: Asus
SKU: 1007000004
Price: 3080 THB
Availability: InStock

MAINBOARD (เมนบอร์ด) ASUS PRIME B760M-K - INTEL SOCKET 1700 DDR5 MICRO-ATX

แบรนด์ : Asus

3,080.-

JIB Points

รับ 1 คะแนน ทุกการใช้จ่าย

฿100

พร้อมส่ง

รายละเอียดสินค้าโดยย่อ

Socket LGA1700 for Intel 12th, 13th & 14th Gen Processors

• Intel B760
• DDR5, 2 x DIMM
• 1 x HDMI
• 1 x D-Sub
• 2 x M.2 slots
• 4 x SATA 6Gb/s ports
• 1 x USB 3.2 Gen 1 Type-A header (front)
• 4 x USB 3.2 Gen 1 Type-A (rear)
• 2 x USB 2.0 Type-A (rear)
• 1 x PS/2
• Realtek 2.5Gb Ethernet
• ไม่รองรับ CPU ที่ใช้พลังงานมากกว่า 125 วัตต์

24ครั้ง

ขายแล้ว0ชิ้น

จำนวน

คงเหลือ 1 ชิ้น

คุณสมบัติเด่นและสเปก

รายละเอียดสเปคทั้งหมดของสินค้า

MAINBOARD (เมนบอร์ด) ASUS PRIME B760M-K - INTEL SOCKET 1700 DDR5 MICRO-ATX

model

Model: PRIME B760M-K

CPU

Wattage: 125W

Graphic & Audio

mb_ob_sup_sound: 7.1 Surround Sound High Definition Audio
Audio: Realtek
Graphic: Requires a CPU with Integrated Graphics. — • 1 x VGA port • 1 x HDMI port** — * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMITM 2.1.

Storage

M.2: 2 x M.2 slots Intel 13th & 12th Gen Processors • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) — Intel B760 Chipset • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Port
RAID: RAID 0, RAID 1, RAID 5, RAID 10 for SATA storage devices

expansion slots

Details: Intel 13th & 12th Gen Processors • 1 x PCIe 4.0 x16 slot — Intel B760 Chipset • 2 x PCIe 4.0 x1 slots — - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

network

LAN Speed: 100/1000/2500 Mbps
LAN: 1 Port

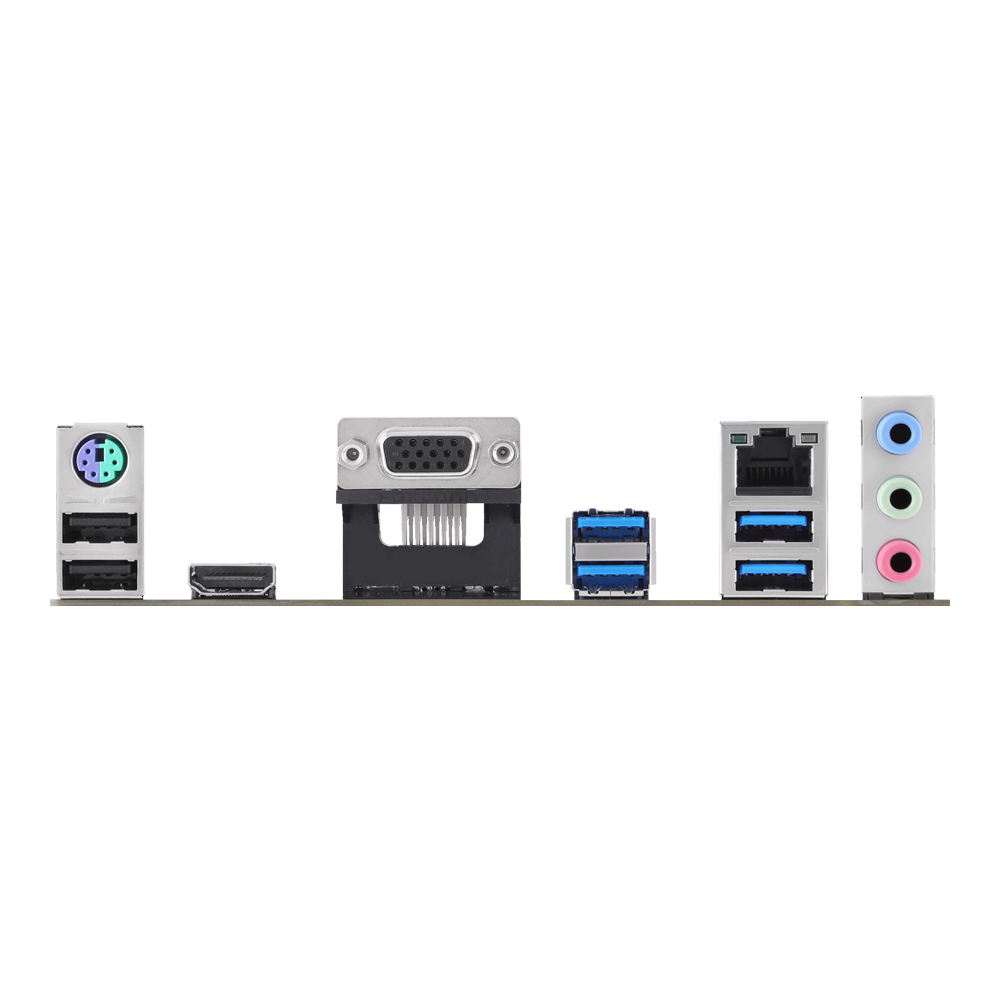

Back Panel I/O Ports

USB 3.2: 4 x USB 3.2 Gen 1 Type-A Port
PS/2: 1 (Keyboard/Mouse combo) Port

Form Factor

Power Connector: 24 + 8 Pin
Dimension: 24.4 x 21.1 cm

รายละเอียดสินค้า

ภาพรวม จุดเด่น และข้อมูลการใช้งาน

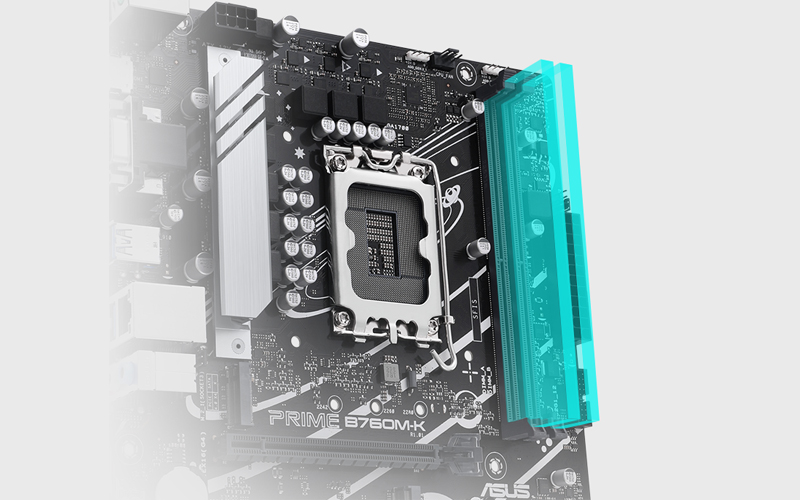

AEMP II for Ultimate DDR5 Performance

ASUS Enhanced Memory Profile II (AEMP II) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module’s ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance.

Built through a flexible training method, AEMP II makes it easy to not only tune the memory above baseline settings but also maintain the stability of system operation, whether getting the most out of an entry-level module or priming a high-speed kit for ultimate performance.

*Results may vary according to the capabilities of your CPU and memory modules.

**The comparison chart is based on a test with an Intel® i9-13900K processor and 2x16 GB SK Hynix DDR5-4800 non-ECC UDIMMs, model HMCG78MEBUA081N.

***Please ensure all memory modules are from a single validated kit. Do not combine DIMMs from multiple kits—even if they are the same make and model. Mixing and matching DIMMs can result in failure to boot, and compatibility cannot be guaranteed.

****Always install DIMMs with the same CAS latency. For optimal compatibility, we recommend that you install memory modules of the same version or date code (D/C) from the same vendor. Check with your retailer to get the correct memory modules.

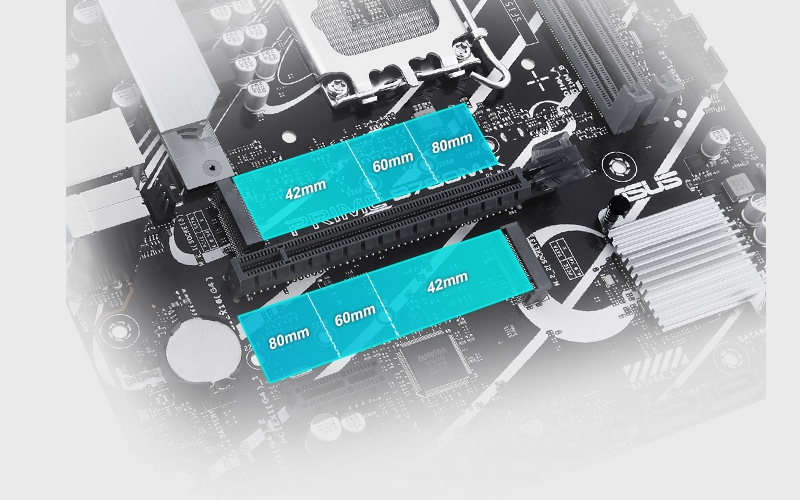

Two M.2 Slots (up to 64 Gbps)

The PRIME B760 motherboard offers a total of two M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.

*Actual transmission speeds will be lower than the theoretical maximum speed.

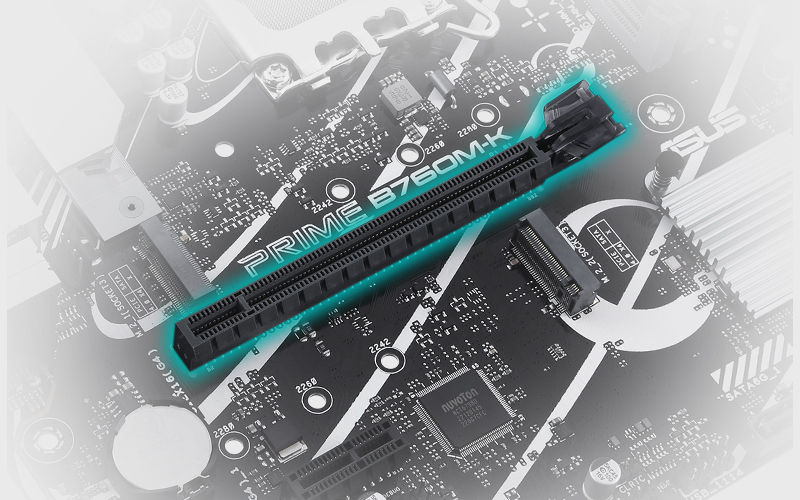

PCIe 4.0 Slot

The PRIME B760 motherboard is designed specifically for 13th and 12th Gen Intel® CPUs and offer PCIe 4.0 connectivity for the latest GPUs.

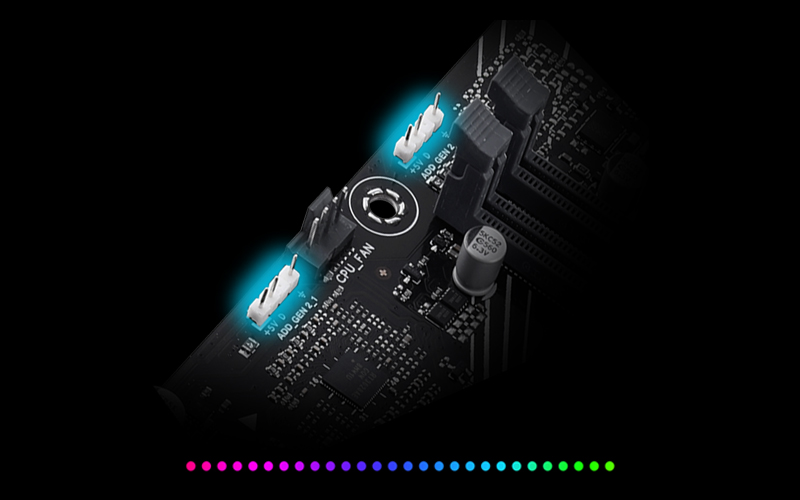

Addressable Gen 2 Headers

Two Addressable Gen 2 headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

Source : Asus PRIME B760M-K
