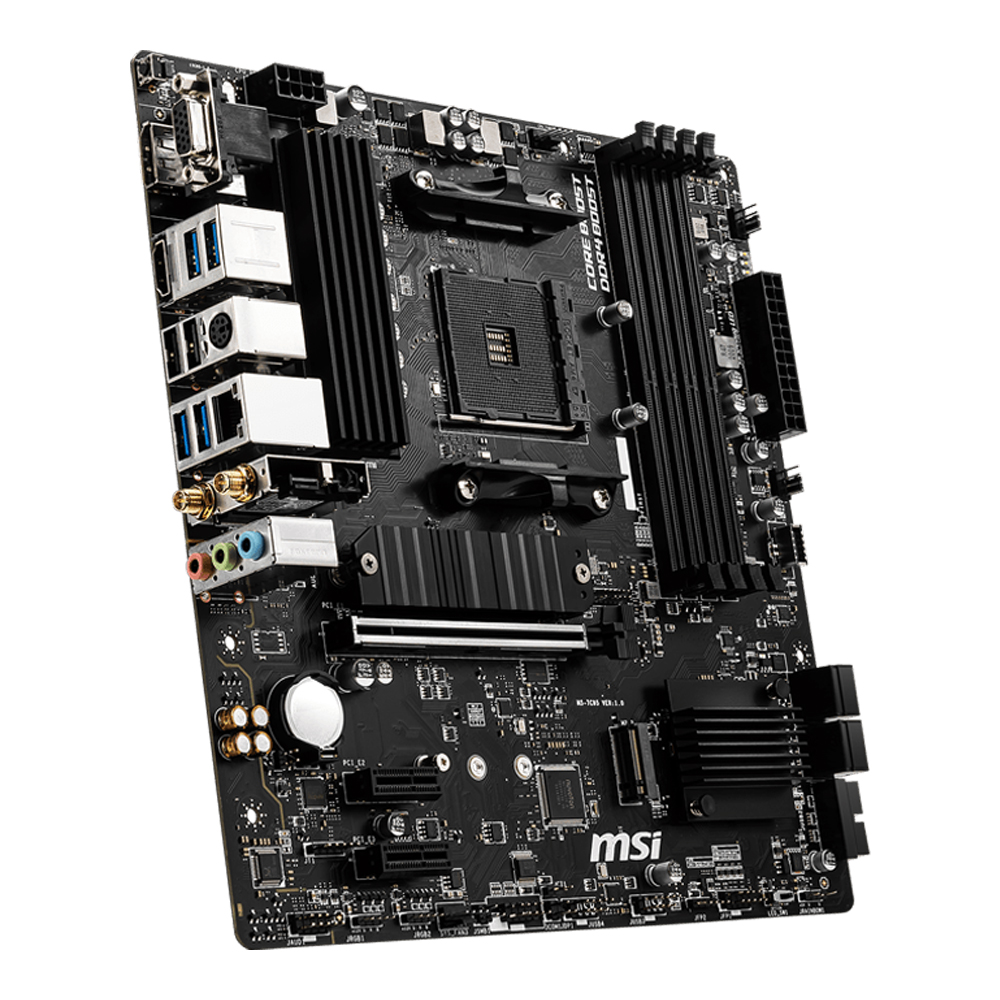

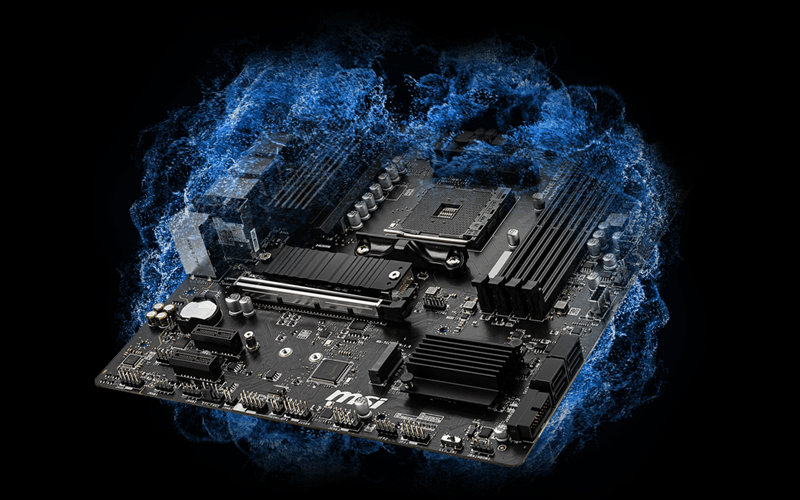

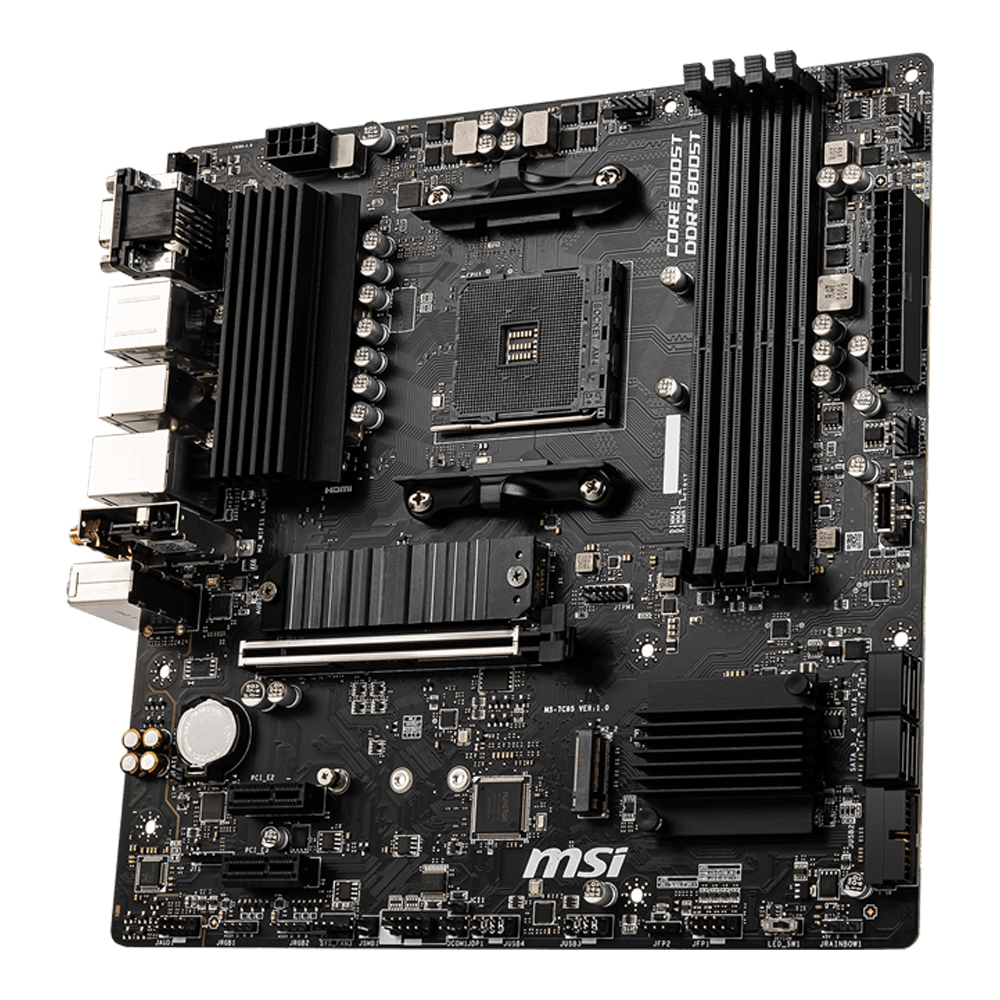

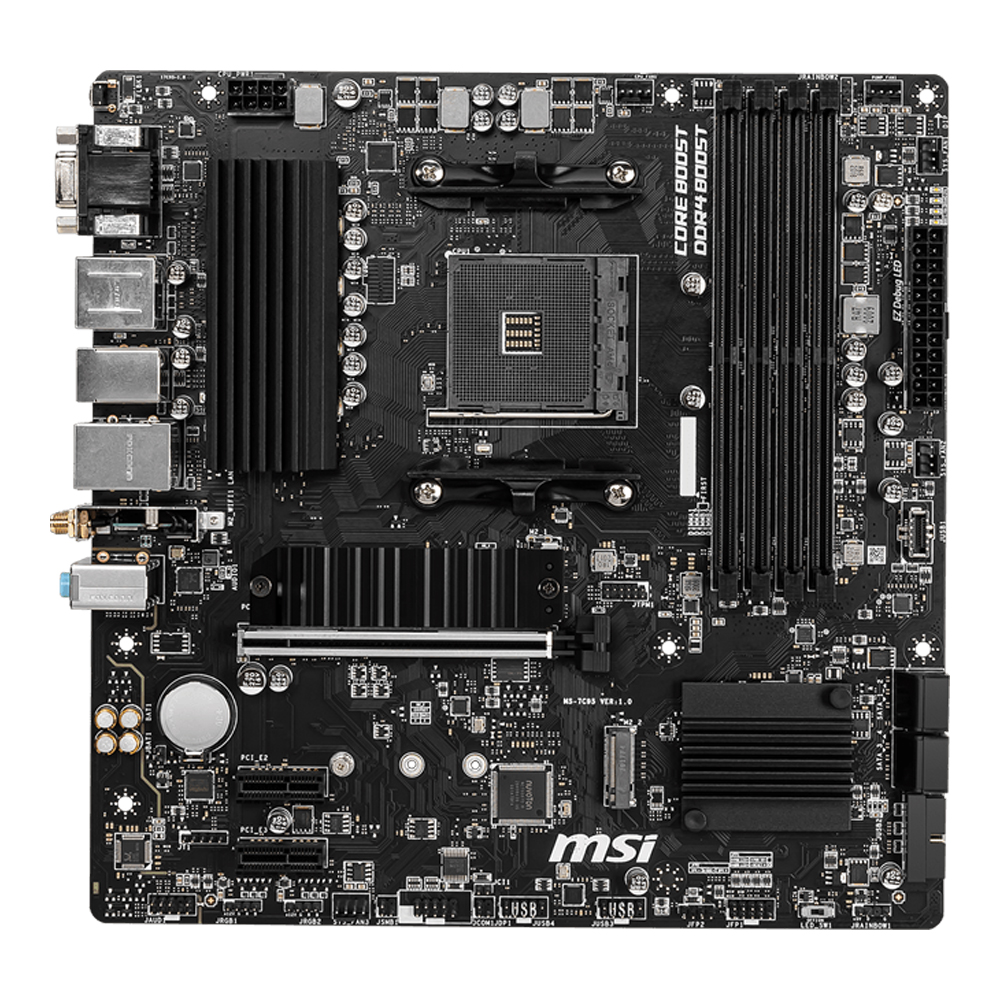

MAINBOARD (เมนบอร์ด) MSI B550M PRO-VDH WIFI - AMD SOCKET AM4 DDR4 MICRO-ATX

Name: MAINBOARD (เมนบอร์ด) MSI B550M PRO-VDH WIFI - AMD SOCKET AM4 DDR4 MICRO-ATX
Brand: MSI
SKU: 1007000003
Price: 2890 THB
Availability: InStock

MAINBOARD (เมนบอร์ด) MSI B550M PRO-VDH WIFI - AMD SOCKET AM4 DDR4 MICRO-ATX

แบรนด์ : MSI

2,890.-

JIB Points

รับ 1 คะแนน ทุกการใช้จ่าย

฿100

พร้อมส่ง

รายละเอียดสินค้าโดยย่อ

Supports AMD Ryzen 5000 / 5000 G / 3000 / 4000 G-Series processors

• AMD B550
• DDR4, 4 x DIMM
• 1 x DisplayPort, 1 x HDMI, 1 x D-Sub
• 2 x M.2 slots
• 4 x SATA 6Gb/s ports
• 4 x USB 3.2 Gen 1 Type-A
• 1 x PS/2
• Gigabit LAN
• Wi-Fi 5
• Bluetooth 2.1
• NOT Compatible with AMD Ryzen 3 3200G & Ryzen 5 3400G

57ครั้ง

ขายแล้ว0ชิ้น

จำนวน

คงเหลือ 5 ชิ้น

คุณสมบัติเด่นและสเปก

รายละเอียดสเปคทั้งหมดของสินค้า

MAINBOARD (เมนบอร์ด) MSI B550M PRO-VDH WIFI - AMD SOCKET AM4 DDR4 MICRO-ATX

model

Model: B550M PRO-VDH WIFI

CPU

Wattage: 105W

Graphic & Audio

mb_ob_sup_sound: 7.1-Channel High Definition Audio
Audio: Realtek ALC892/ALC897
Graphic: Requires a CPU with Integrated Graphics. — • 1 x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz (1) • 1 x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz (1) • 1 x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz (1 2) — Support HDCP 1.4 & 2.3 Maximum shared memory of 16 GB 1. Available for the processor with integrated graphics. 2. Graphics specifications may vary depending on the CPU installed.

Storage

M.2: 2 x M.2 slots (Key M) — • M2_1 slot (from AMD Processor) - Supports PCIe 4.0/ 3.0 x4 (1) - Supports SATA 6Gb/s - Supports 2242/ 2260/ 2280 storage devices — • M2_2 slot (from AMD B550 chipset) - Supports PCIe 3.0x4 - Supports 2242/ 2260/ 2280 storage devices — 1. The supported specification depends on installed processor. Port
RAID: RAID 0, RAID 1, RAID 10 for SATA storage devices RAID 0, RAID 1 for PCIe / NVMe storage devices

expansion slots

Details: • 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E1) (1) • 2 x PCIe 3.0 x1 slots — 1. The supported specification depends on installed processor.

network

Wireless: • Wi-Fi AC - Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed. - Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2
LAN Speed: 100/1000 Mbps
LAN: 1 Port

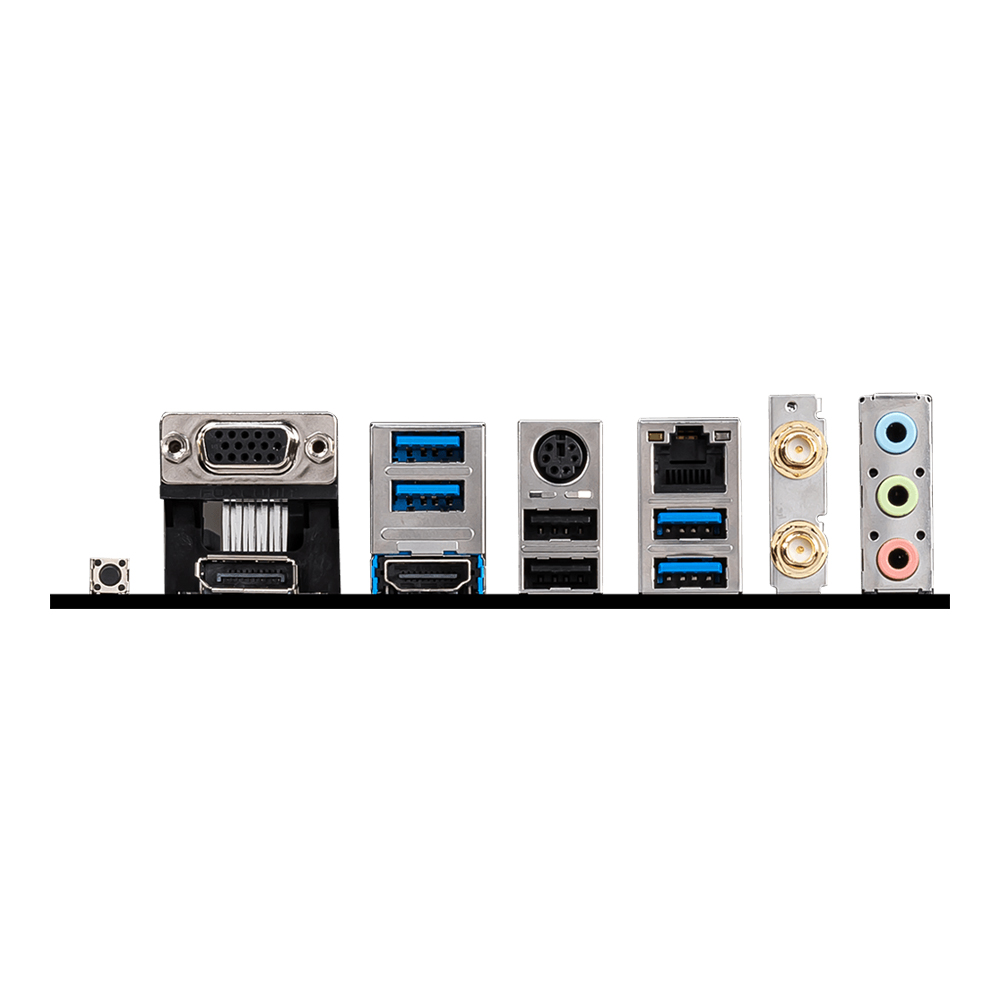

Back Panel I/O Ports

USB 3.2: 4 x USB 3.2 Gen 1 Type-A Port
PS/2: 1 (Keyboard/Mouse combo) Port

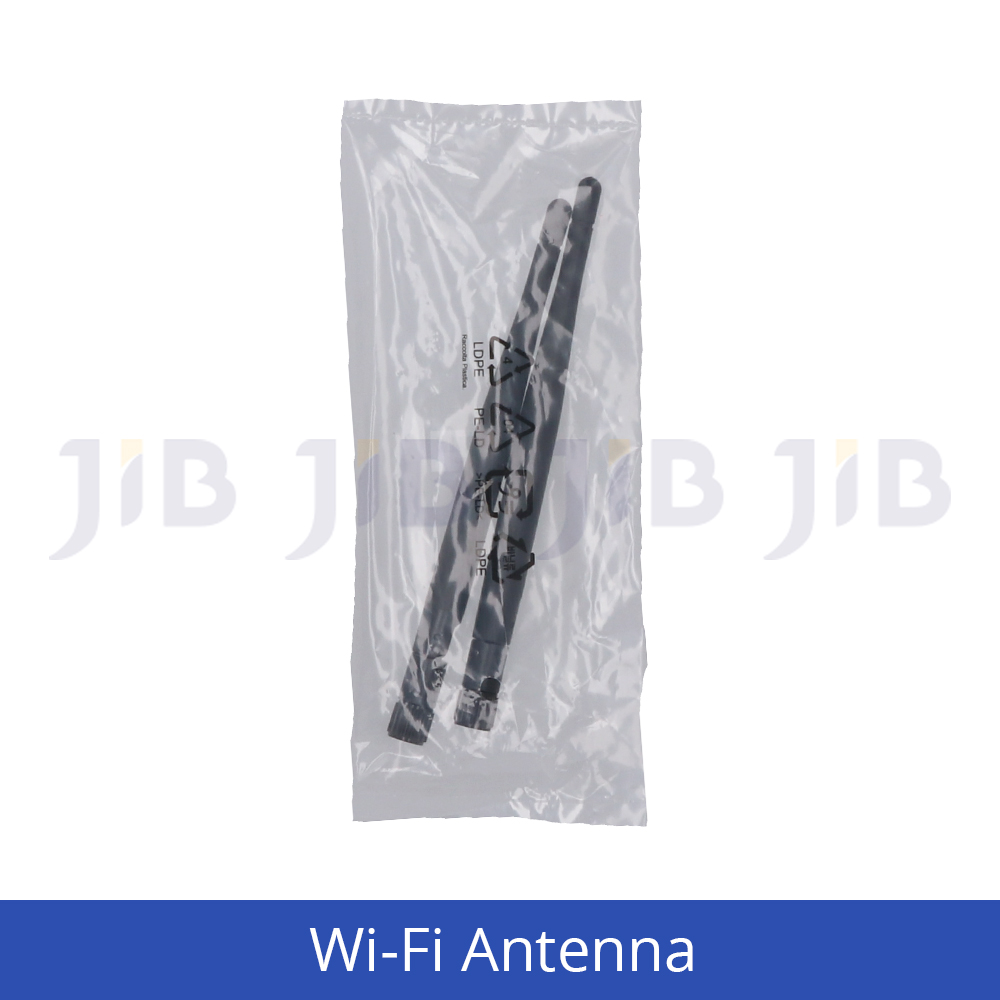

Additional: 1 x Flash BIOS Button 2 x Wi-Fi Antenna connectors

Form Factor

Power Connector: 24 + 8 Pin
Dimension: 24.4 x 24.4 cm

รายละเอียดสินค้า

ภาพรวม จุดเด่น และข้อมูลการใช้งาน

M.2 SHIELD FROZR

World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

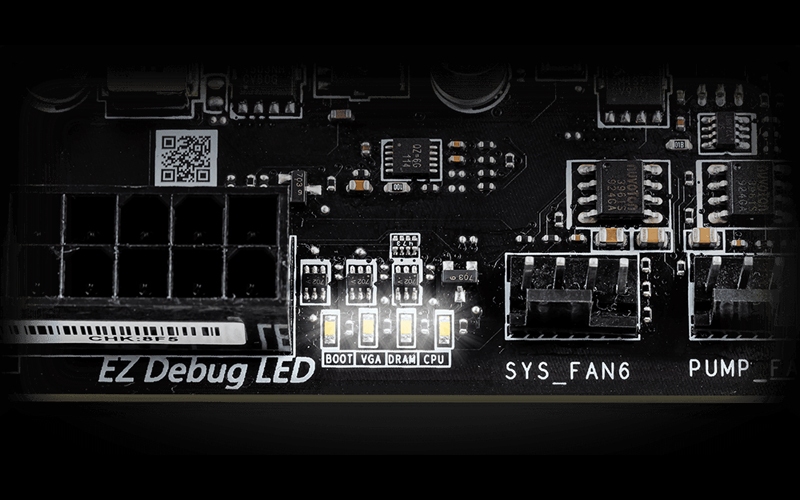

EZ DEBUG LED

Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up and running again.

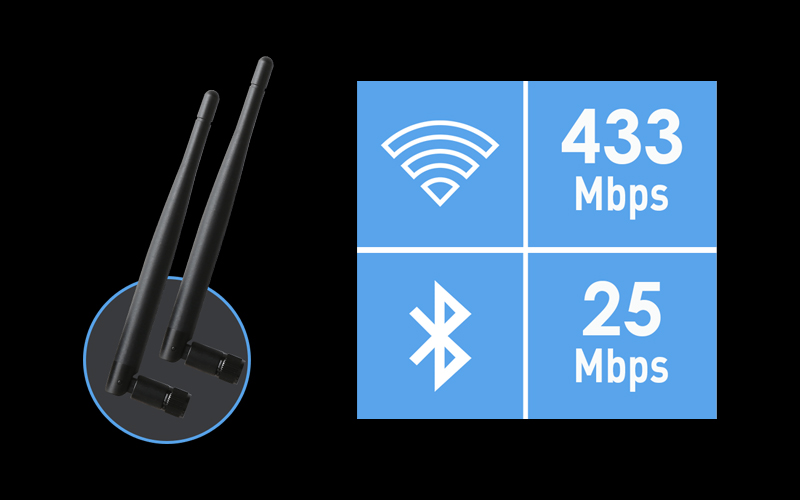

WI-FI AC & BLUETOOTH

This Wi-Fi / Bluetooth solution delivers AC speeds up to 433Mbps without any cable limitation.

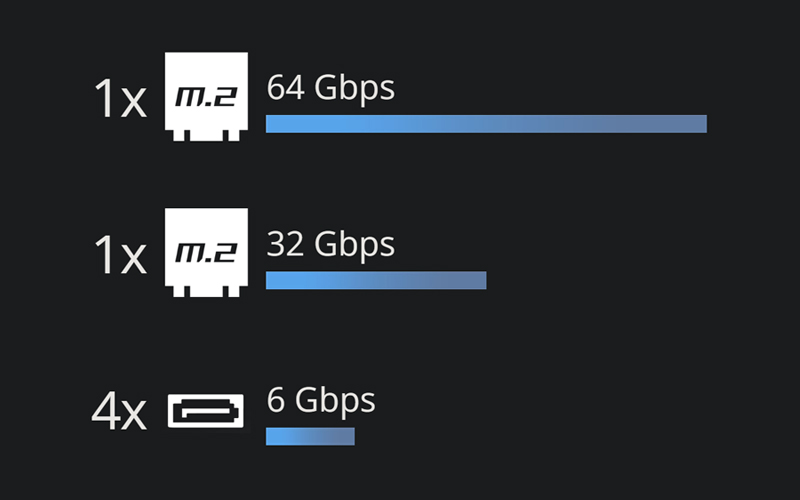

FAST AND FUTURE-READY STORAGE

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

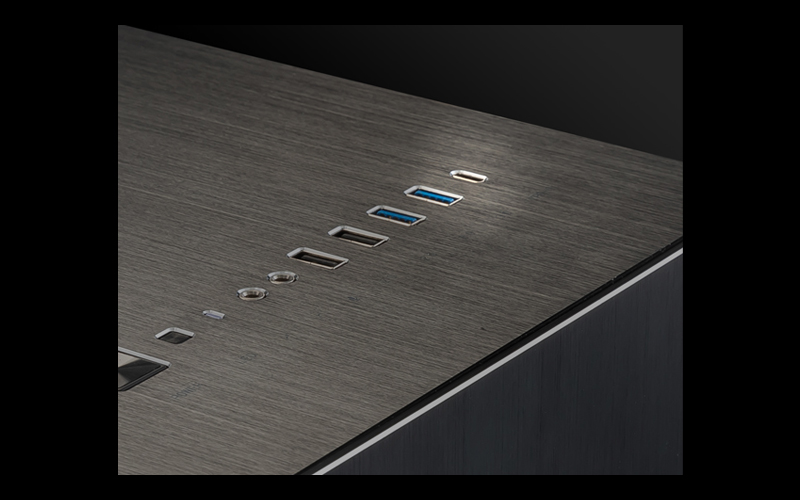

USB FRONT TYPE-C

MSI motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

Source : MSI B550M PRO-VDH WIFI
