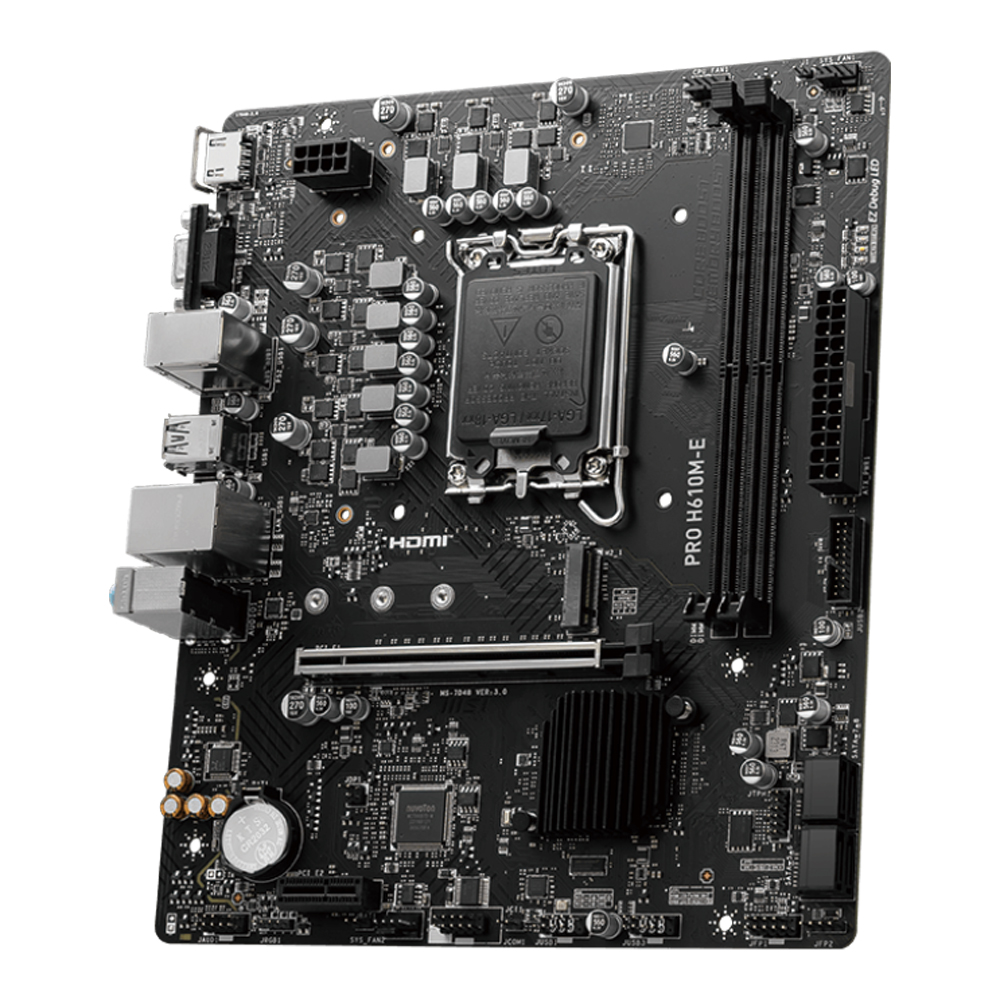

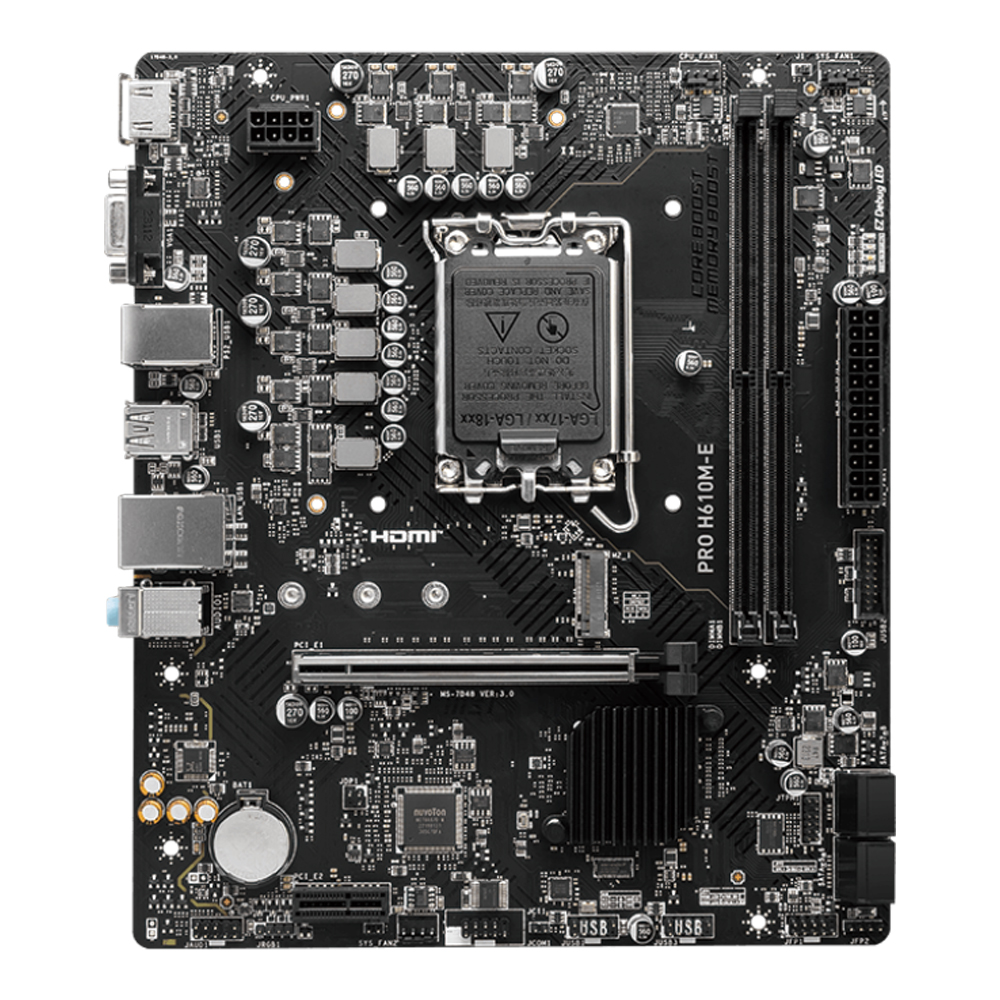

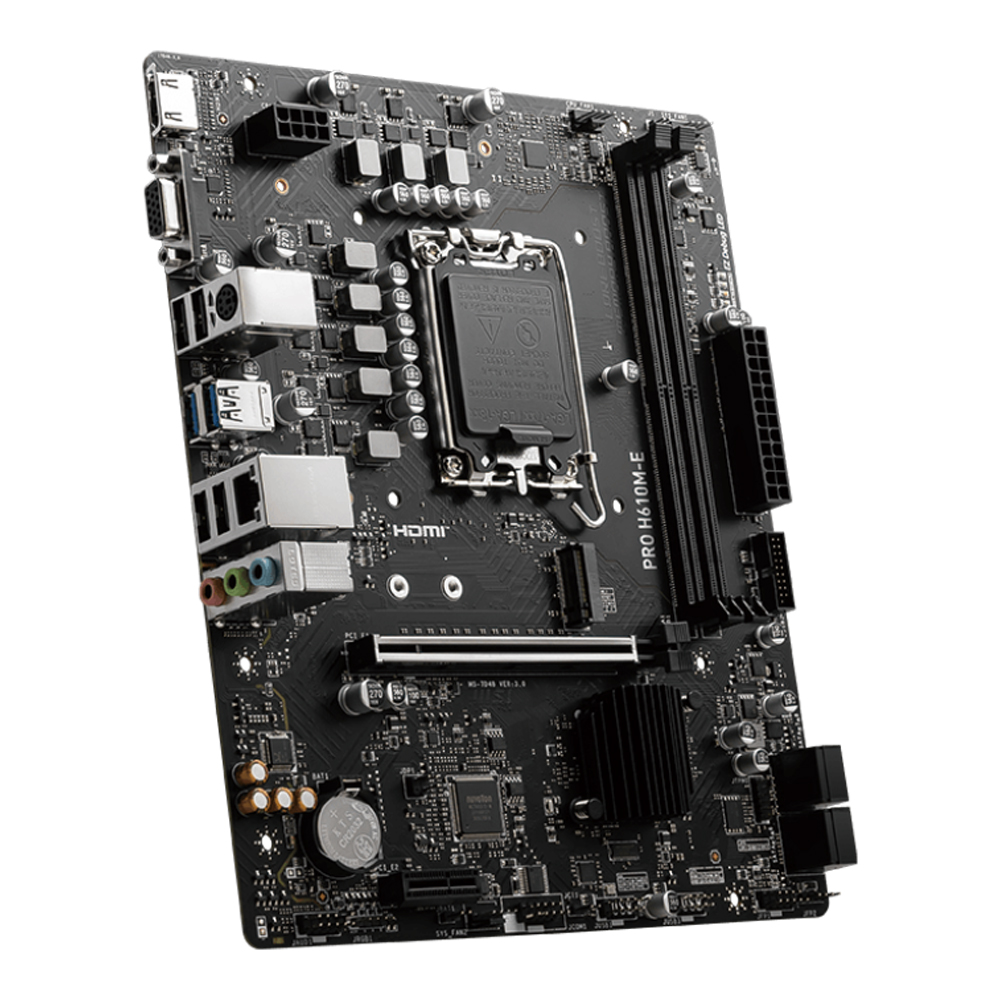

MAINBOARD (เมนบอร์ด) MSI PRO H610M-E - INTEL SOCKET 1700 DDR5 MICRO-ATX

Name: MAINBOARD (เมนบอร์ด) MSI PRO H610M-E - INTEL SOCKET 1700 DDR5 MICRO-ATX
Brand: MSI
SKU: 0201038707
Price: 1790 THB
Availability: InStock

MAINBOARD (เมนบอร์ด) MSI PRO H610M-E - INTEL SOCKET 1700 DDR5 MICRO-ATX

แบรนด์ : MSI

1,790.-

JIB Points

รับ 1 คะแนน ทุกการใช้จ่าย

฿100

พร้อมส่ง

รายละเอียดสินค้าโดยย่อ

Socket LGA1700 for Intel 12th, 13th & 14th Gen Processors

• Intel H610
• DDR5, 2 x DIMM
• 1 x HDMI
• 1 x VGA
• 1 x M.2
• 4 x SATA 6G
• 2 x USB 3.2 Gen 1 Type A (Rear)
• 2 x USB 3.2 Gen 1 Type A (Front)
• 1 x PS/2
• Gigabit LAN

35ครั้ง

ขายแล้ว0ชิ้น

จำนวน

คงเหลือ 1 ชิ้น

คุณสมบัติเด่นและสเปก

รายละเอียดสเปคทั้งหมดของสินค้า

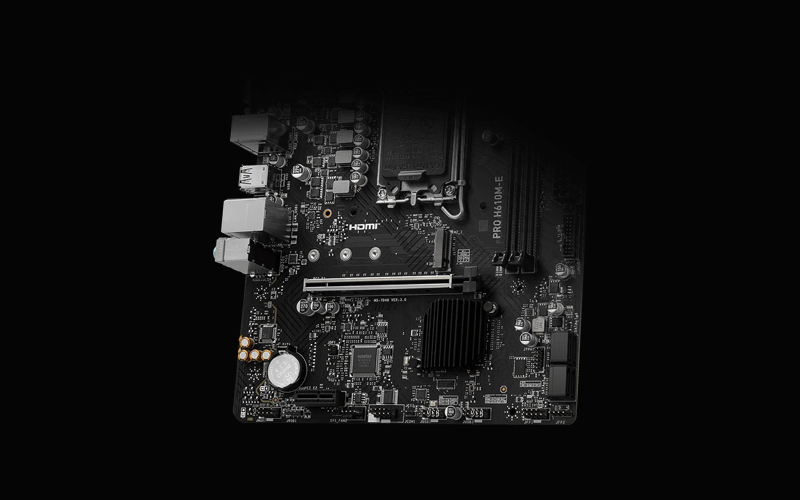

MAINBOARD (เมนบอร์ด) MSI PRO H610M-E - INTEL SOCKET 1700 DDR5 MICRO-ATX

model

Model: PRO H610M-E

CPU

Wattage: 150W

Graphic & Audio

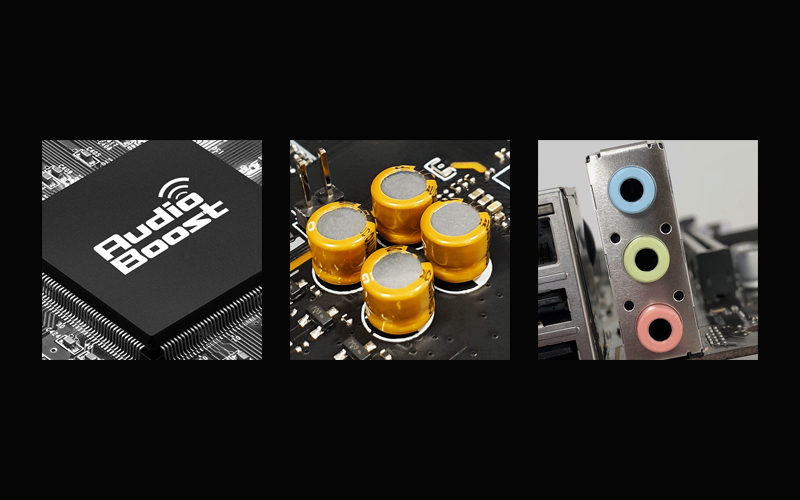

mb_ob_sup_sound: 7.1-Channel High Definition Audio
Audio: Realtek ALC897
Graphic: Requires a CPU with Integrated Graphics. — • 1 x HDMI Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz* • 1 x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz — *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Storage

M.2: 1 x M.2 slot* (Key M) (From CPU) - Supports up to PCIe 3.0 x4 - Supports up to SATA 6Gb/s - Supports 2242/2260/2280 storage devices * SATA_5 will be unavailable when installing M.2 SATA SSD in M2_1 slot. Port

expansion slots

Details: • 1 x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 • 1 x PCIe x1 slot (From H610 chipset) Supports up to PCIe 3.0 x1

network

Wireless: No
LAN Speed: 100/1000 Mbps
LAN: 1 Port

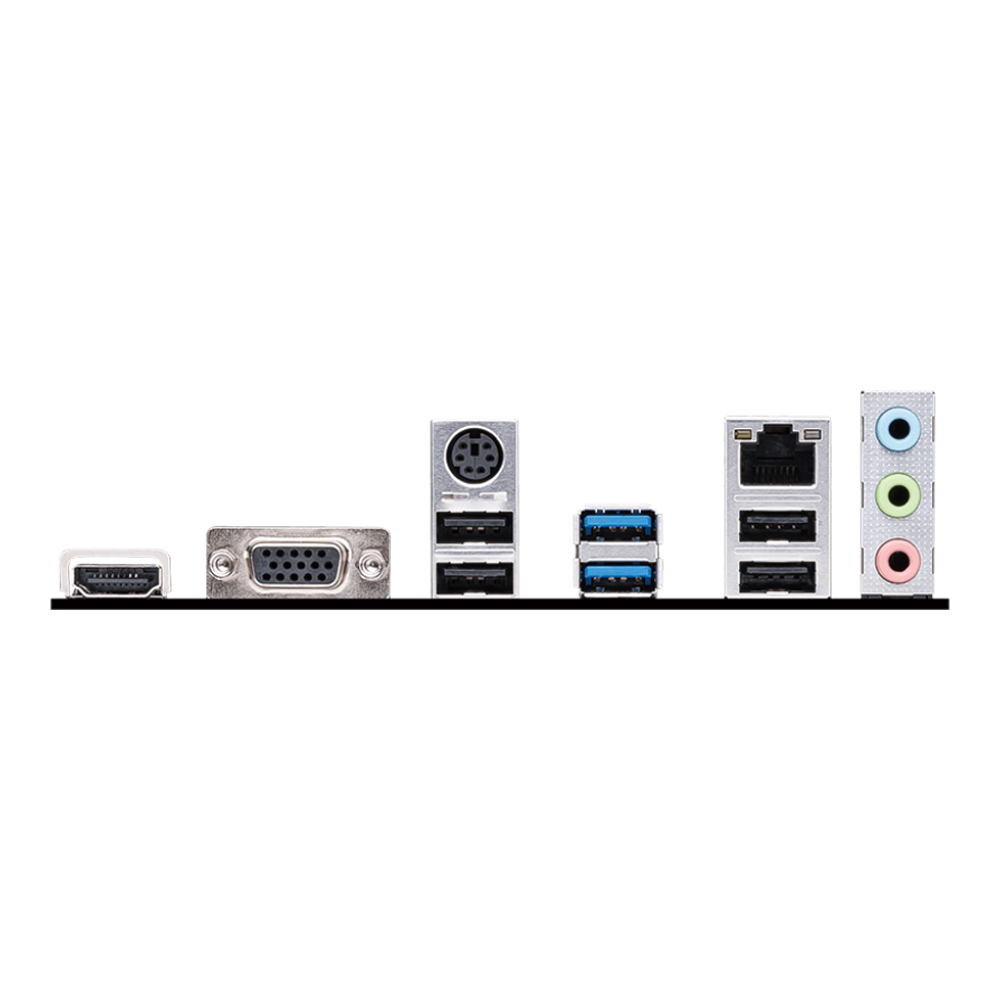

Back Panel I/O Ports

USB 3.2: 2 x USB 3.2 Gen 1 Type-A Port
HDMI: 1 (Version 1.4) Port
PS/2: 1 (Keyboard/Mouse combo) Port

Form Factor

Power Connector: 24 + 8 Pin
Dimension: 23.6 x 20.0 cm

รายละเอียดสินค้า

ภาพรวม จุดเด่น และข้อมูลการใช้งาน

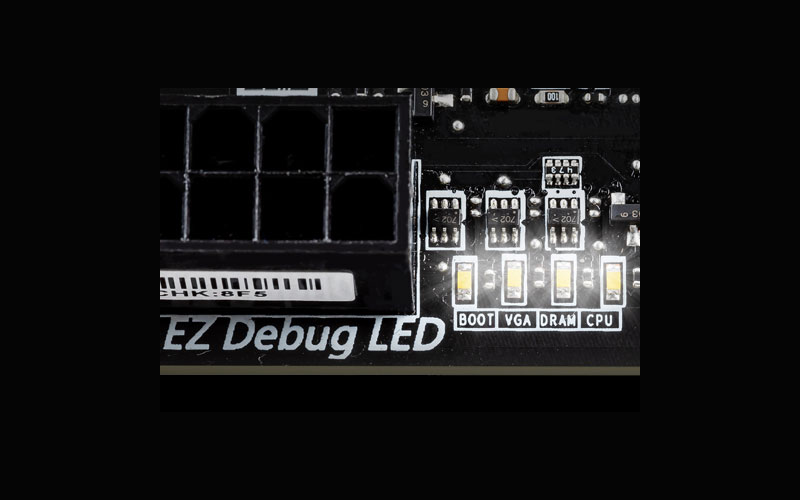

EZ DEBUG LED

Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up and running again.

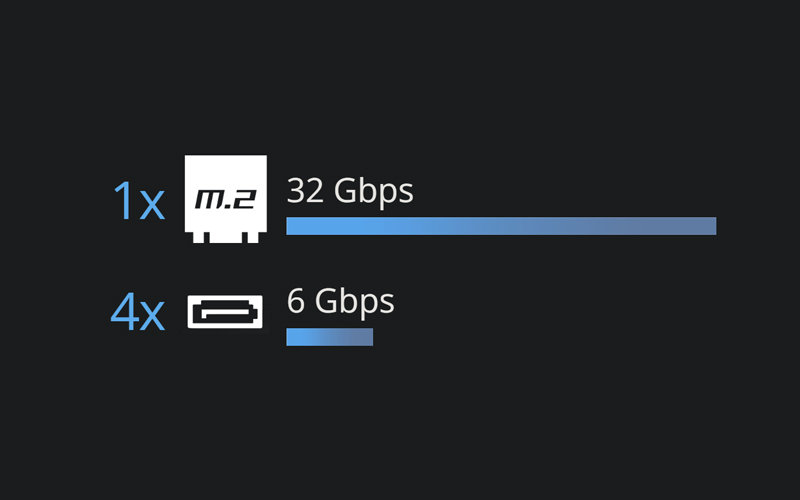

FAST AND FUTURE-READY STORAGE

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

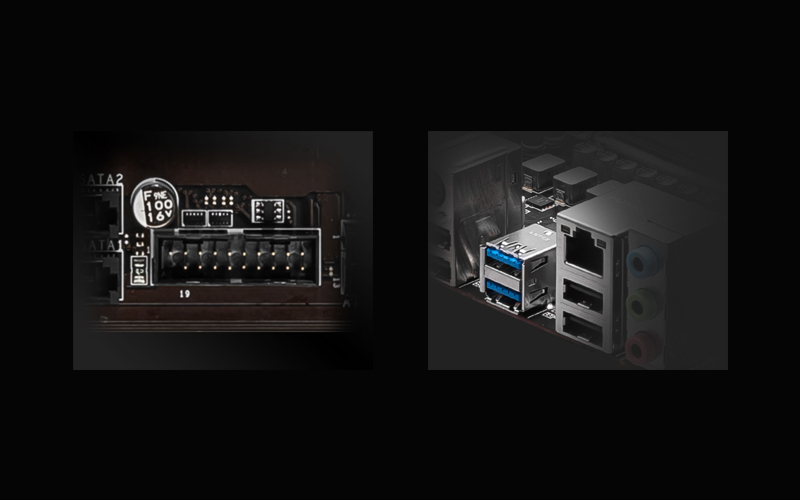

USB 3.2 GEN 1

Transfer lots of data, music and movies over USB easier. USB 3.2 Gen 1 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 Gen 1 devices.

LIGHTNING GEN 4 PCI-E

MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.
