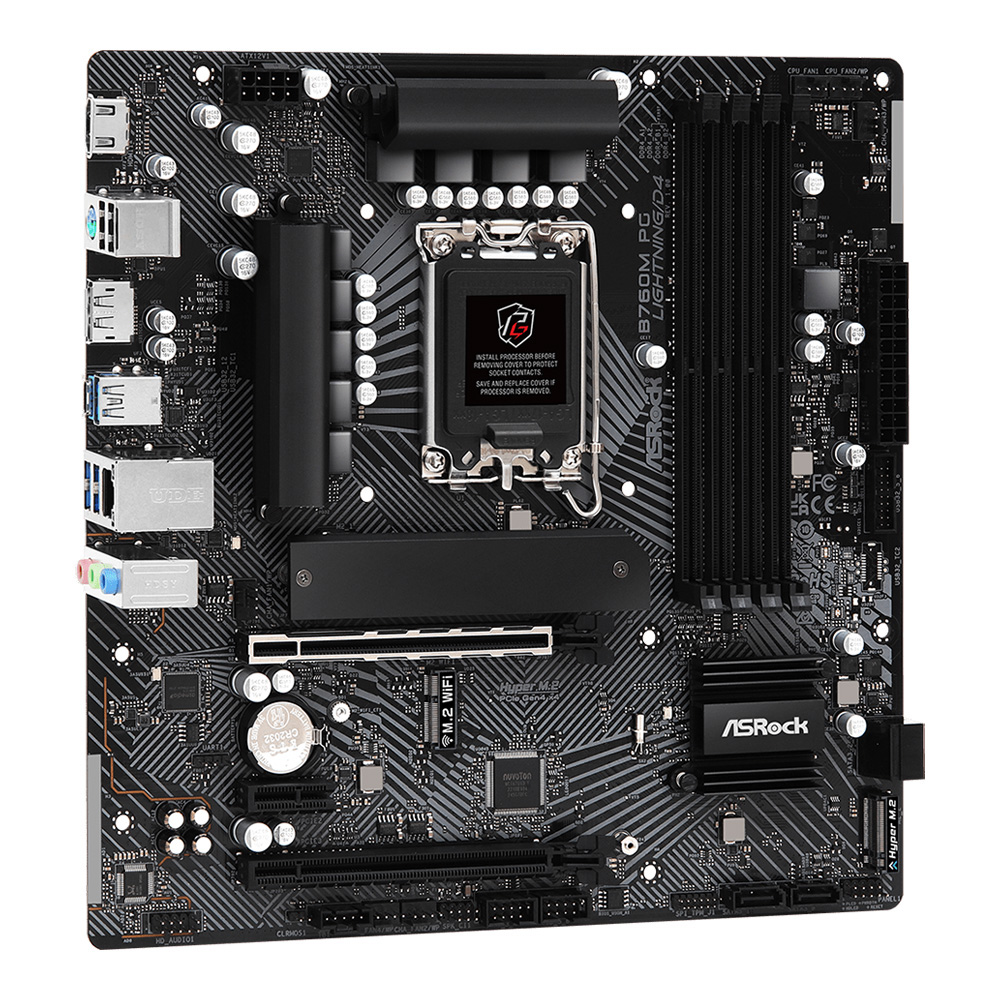

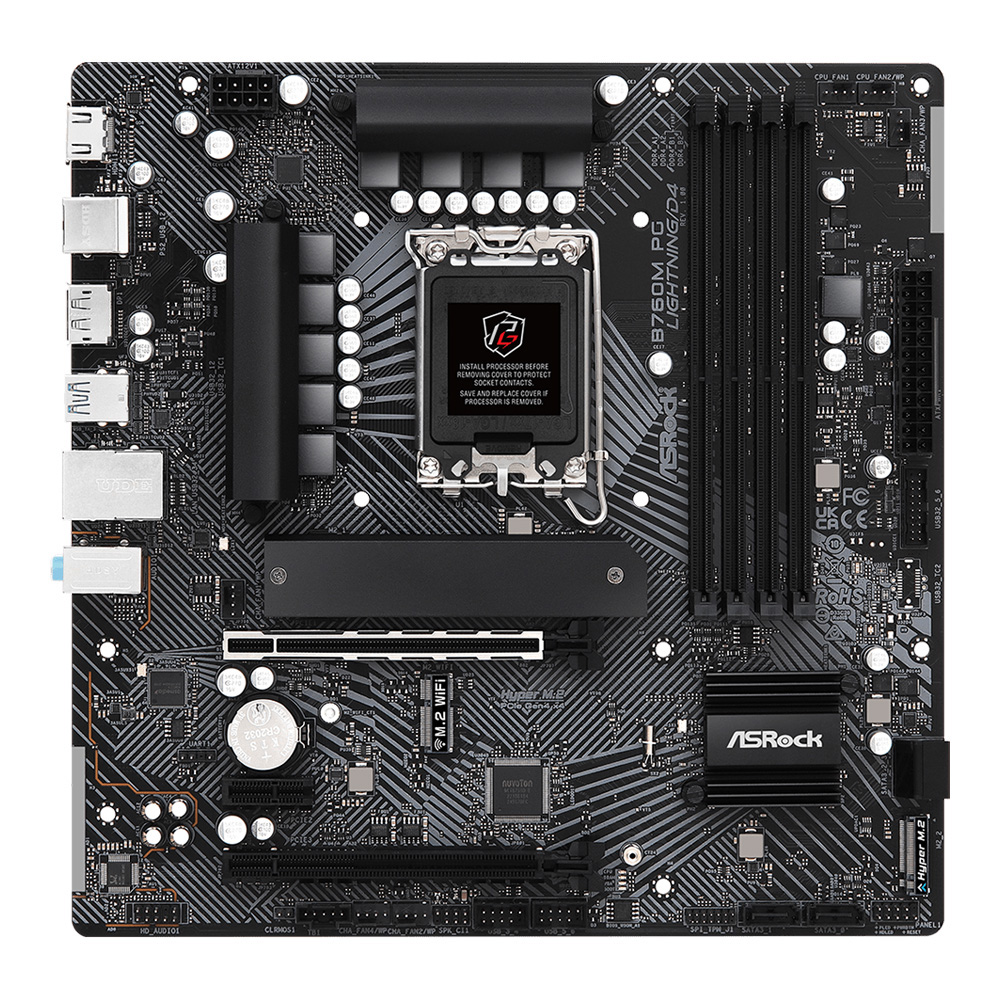

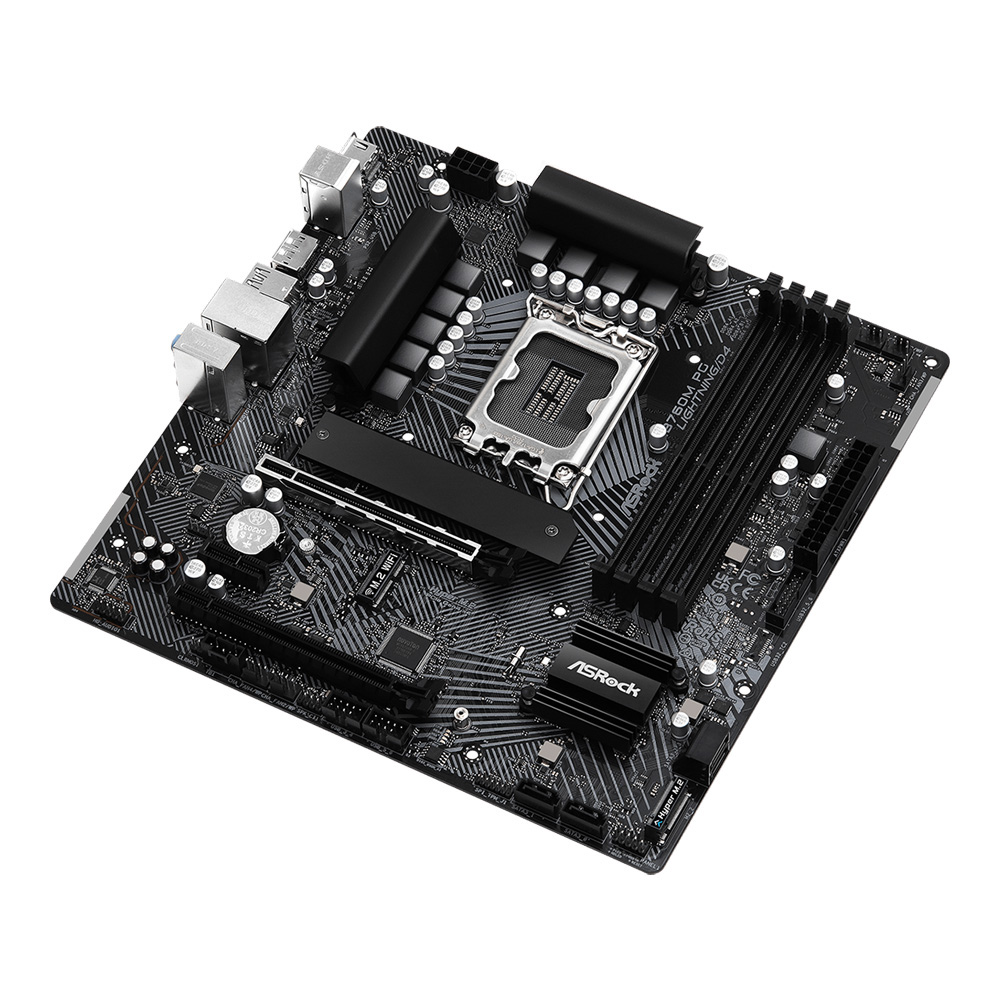

MAINBOARD (เมนบอร์ด) ASROCK B760M PG LIGHTNING/D4 - INTEL SOCKET 1700 DDR4 MICRO-ATX

Name: MAINBOARD (เมนบอร์ด) ASROCK B760M PG LIGHTNING/D4 - INTEL SOCKET 1700 DDR4 MICRO-ATX
Brand: Asrock
SKU: 0201038691
Price: 2390 THB
Availability: InStock

MAINBOARD (เมนบอร์ด) ASROCK B760M PG LIGHTNING/D4 - INTEL SOCKET 1700 DDR4 MICRO-ATX

แบรนด์ : Asrock

2,390.-

JIB Points

รับ 1 คะแนน ทุกการใช้จ่าย

฿100

พร้อมส่ง

รายละเอียดสินค้าโดยย่อ

Socket LGA1700 for Intel 12th, 13th & 14th Gen Processors

• 4 x DIMM, DDR4
• 2 x PCIe 4.0 x16
• 1 x HDMI
• 1 x DisplayPort
• 4 x SATA3, 2 x Hyper M.2 (PCIe Gen4x4)
• 1 x USB 3.2 Gen1 Type-C (Rear)
• Realtek Gigabit LAN

22ครั้ง

ขายแล้ว0ชิ้น

จำนวน

คงเหลือ 1 ชิ้น

คุณสมบัติเด่นและสเปก

รายละเอียดสเปคทั้งหมดของสินค้า

MAINBOARD (เมนบอร์ด) ASROCK B760M PG LIGHTNING/D4 - INTEL SOCKET 1700 DDR4 MICRO-ATX

model

Model: B760M PG Lightning/D4

CPU

Wattage: 150W

Graphic & Audio

mb_ob_sup_sound: 7.1 CH HD Audio
Audio: Realtek ALC897
Graphic: Requires a CPU with Integrated Graphics. — Intel Xe Graphics Architecture (Gen 12) • 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz — *Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Storage

M.2: 2 x M.2 Socket(s) — CPU: • 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* — Chipset: • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* — *Supports Intel Volume Management Device (VMD) Supports NVMe SSD as boot disks Port
RAID: RAID 0, RAID 1, RAID 5, RAID 10 for SATA Storage Devices

expansion slots

Details: CPU: • 1 x PCIe 4.0 x16 Slot (PCIe1), supports x16 mode* — Chipset: • 1 x PCIe 4.0 x16 Slot (PCIe3), supports x4 mode* • 1 x PCIe 4.0 x1 Slot (PCIe2)* • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) — • Supports AMD CrossFire *Supports NVMe SSD as boot disks

network

Wireless: No
LAN Speed: 10/100/1000 Mbps
LAN: 1 Port

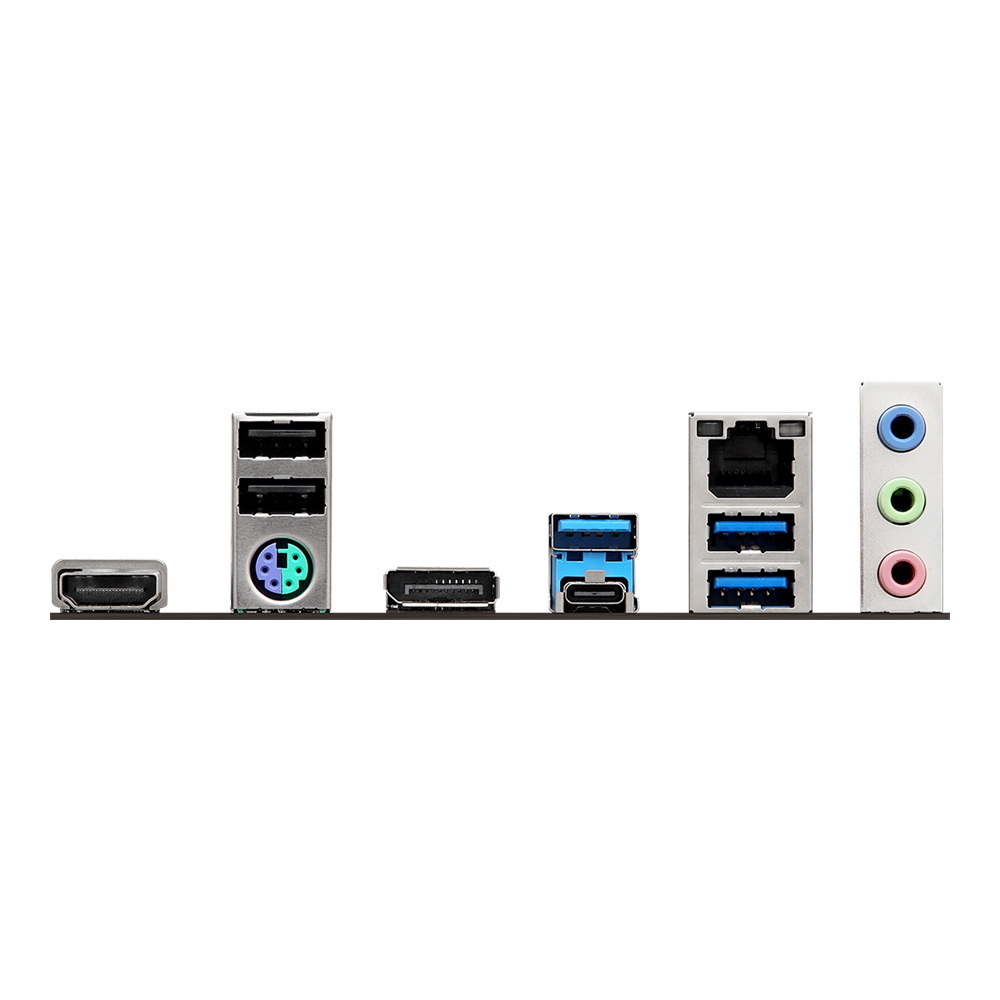

Back Panel I/O Ports

USB 3.2: 1 x USB 3.2 Gen 1 Type-C 3 x USB 3.2 Gen 1 Type-A Port
DisplayPort: 1 (Version 1.4) Port
PS/2: 1 (Keyboard/Mouse combo) Port
Additional: 2 x Antenna Mounting Points

Form Factor

Power Connector: 24 + 8 Pin
Dimension: 24.4 x 24.4 cm

รายละเอียดสินค้า

ภาพรวม จุดเด่น และข้อมูลการใช้งาน

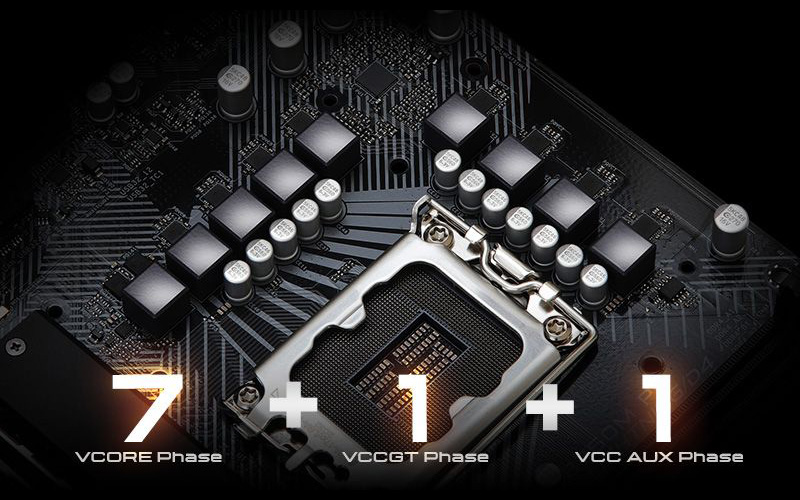

7+1+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

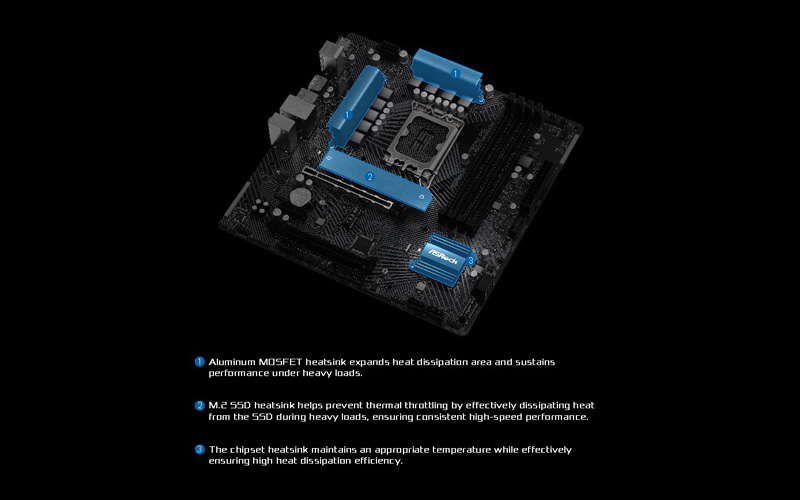

Aluminum Heatsink

The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

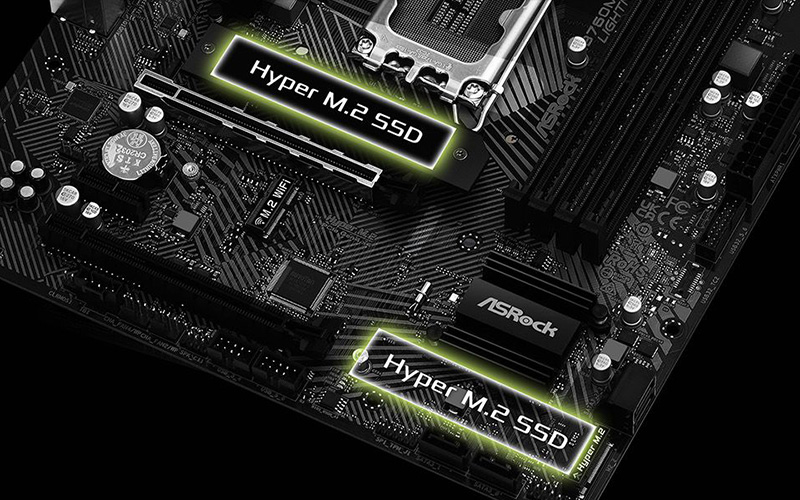

High Speed M.2 Solution

This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Nahimic Audio

Audio That Matters

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
