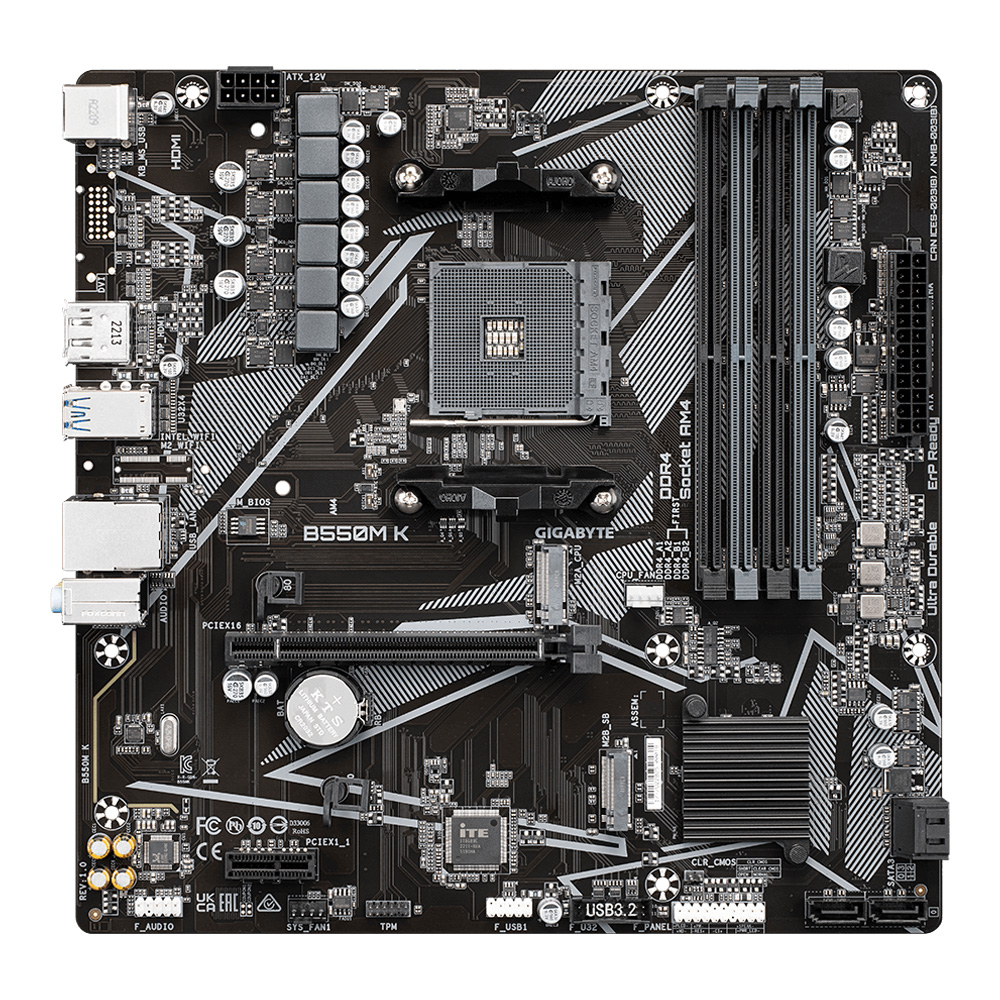

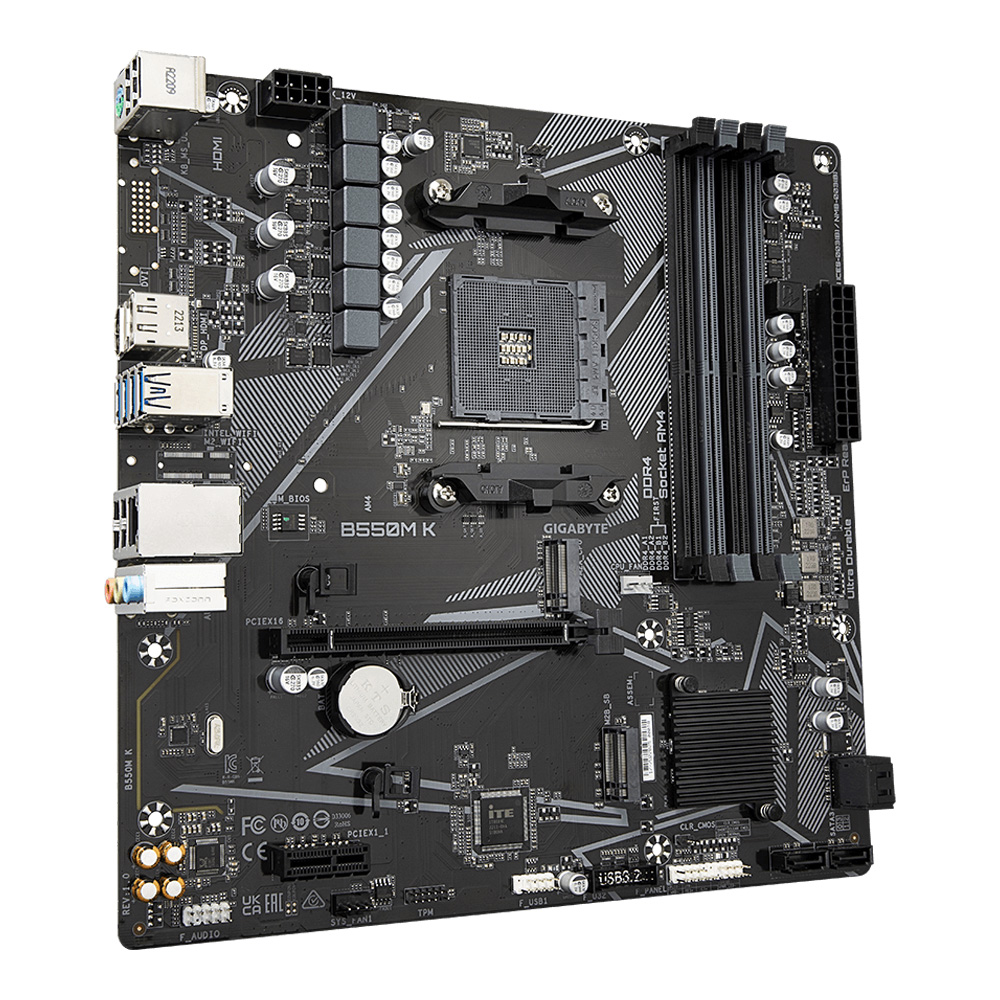

MAINBOARD (เมนบอร์ด) GIGABYTE B550M K (REV. 1.0) - AMD SOCKET AM4 DDR4 MICRO-ATX

Name: MAINBOARD (เมนบอร์ด) GIGABYTE B550M K (REV. 1.0) - AMD SOCKET AM4 DDR4 MICRO-ATX
Brand: Gigabyte
SKU: 0201038669
Availability: OutOfStock

MAINBOARD (เมนบอร์ด) GIGABYTE B550M K (REV. 1.0) - AMD SOCKET AM4 DDR4 MICRO-ATX

แบรนด์ : Gigabyte

JIB Points

รับ 1 คะแนน ทุกการใช้จ่าย

฿100

สินค้าหมด

สินค้าหมดชั่วคราว

กด “แจ้งเตือนเมื่อมีสินค้า” ด้านล่าง เราจะรีบแจ้งทันทีที่สินค้ากลับมา

รายละเอียดสินค้าโดยย่อ

Supports AMD Ryzen 5000 / 5000 G / 4000 G & 3000 Series Processors

• DDR4, 4 DIMMs
• Dual NVMe PCIe 4.0/3.0 M.2 Connectors
• 4 x SATA 6Gb/s
• GbE LAN
• DisplayPort & HDMI

10ครั้ง

ขายแล้ว0ชิ้น

คุณสมบัติเด่นและสเปก

รายละเอียดสเปคทั้งหมดของสินค้า

MAINBOARD (เมนบอร์ด) GIGABYTE B550M K (REV. 1.0) - AMD SOCKET AM4 DDR4 MICRO-ATX

model

Model: B550M K (rev. 1.0)

CPU

Wattage: 105W

Graphic & Audio

mb_ob_sup_sound: 2/4/5.1/7.1-channel
Audio: Realtek
Graphic: Requires a CPU With Integrated Graphics. — Integrated Graphics Processor: • 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. — • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. — Maximum shared memory of 16 GB

Storage

M.2: 2 x M.2 Connector(s) — • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: - AMD Ryzen 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs - AMD Ryzen 5000 G-Series/4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs — • 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs: - Supporting PCIe 3.0 x2 SSDs Port
RAID: Supports RAID 0, RAID 1, RAID 10 for SATA storage devices

expansion slots

Details: • 1 x PCI Express x16 slot, integrated in the CPU: - AMD Ryzen 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 5000 G-Series/4000 G-Series Processors support PCIe 3.0 x16 mode — • 1 x PCI Express x1 slot, integrated in the Chipset: - Supporting PCIe 3.0 x1 mode

network

LAN Speed: 100/1000 Mbps
LAN: 1 Port

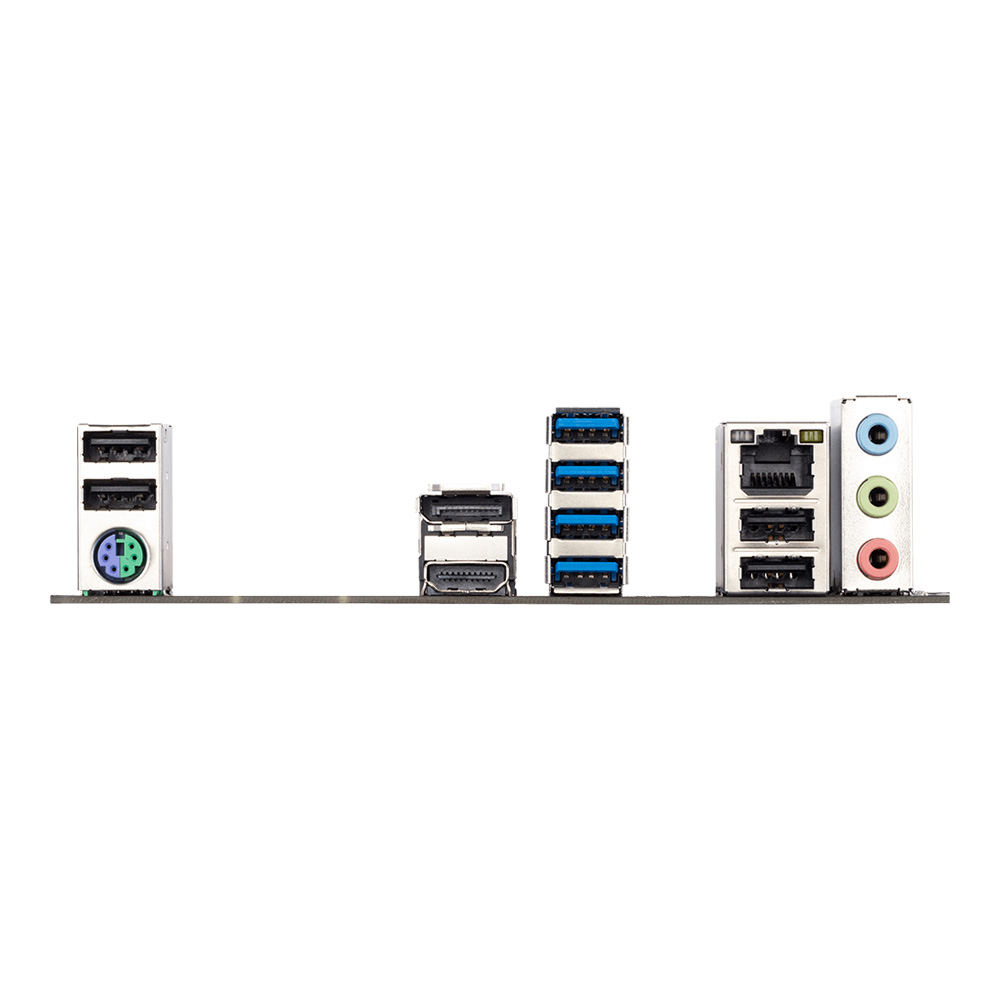

Back Panel I/O Ports

USB 3.2: 4 x USB 3.2 Gen 1 Type-A Port
PS/2: 1 (Keyboard/Mouse combo) Port

Form Factor

Power Connector: 24 + 8 Pin
Dimension: 24.4 x 24.4 cm

รายละเอียดสินค้า

ภาพรวม จุดเด่น และข้อมูลการใช้งาน

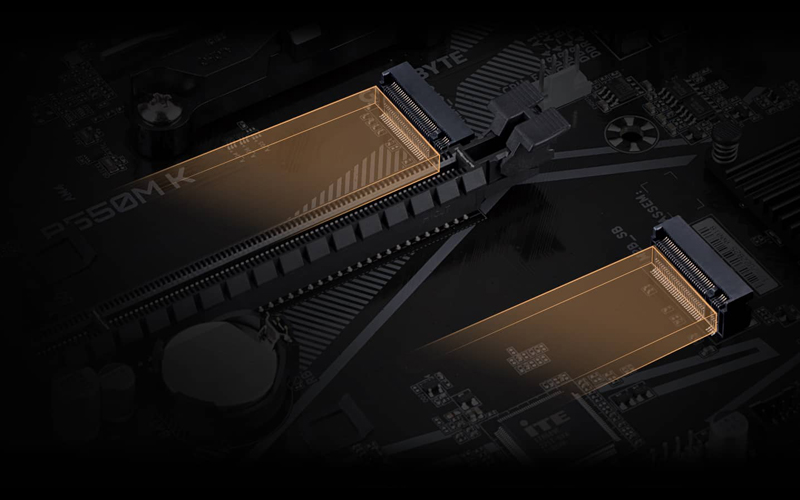

Dual NVMe PCIe 4.0*/3.0 M.2 Connectors

With NVMe PCIe 4.0*/3.0 x4 and PCIe 3.0 x2 M.2 connectors onboard, GIGABYTE Motherboards bring users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors design provides an ideal storage solution while also supporting in RAID modes.

*Actual support may vary by CPU.
- AMD Ryzen 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 5000 G-Series/4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

GbE LAN with Bandwidth Management

GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

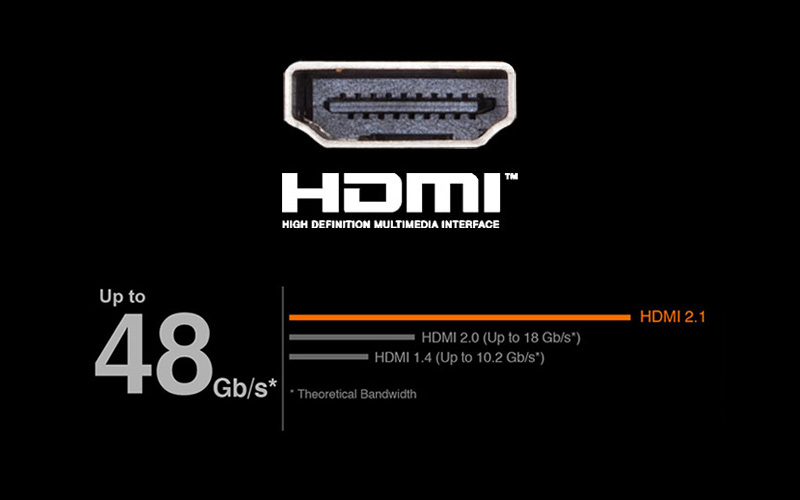

HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support

HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.

Note: Only New Gen AMD Ryzen™ with Radeon™ Graphics processors support displaying function.

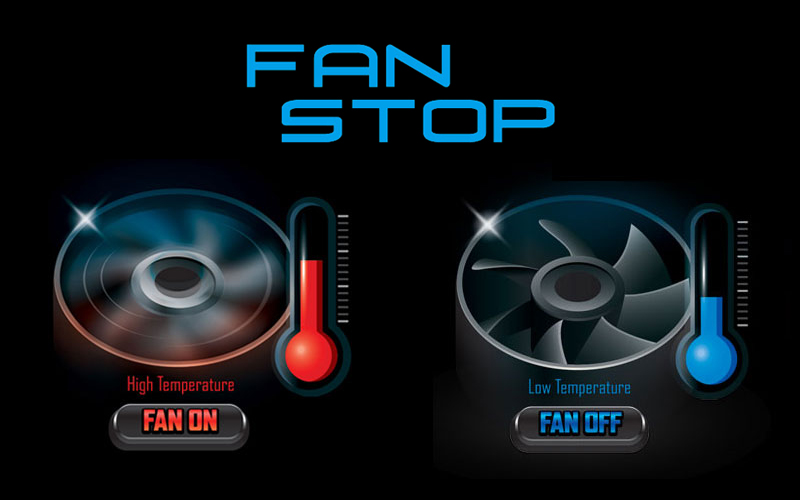

Fan Stop

Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

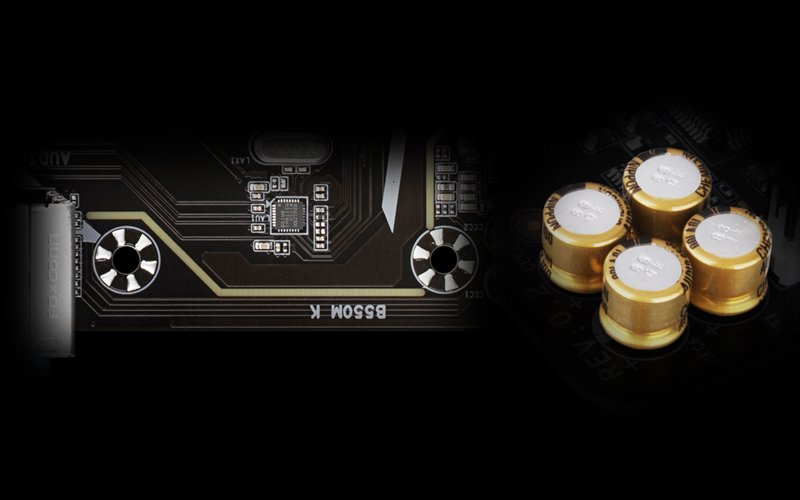

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Source : Gigabyte B550M K (rev. 1.0)
