MAINBOARD (เมนบอร์ด) MSI B650M GAMING PLUS WIFI - AMD SOCKET AM5 DDR5 MICRO-ATX

Name: MAINBOARD (เมนบอร์ด) MSI B650M GAMING PLUS WIFI - AMD SOCKET AM5 DDR5 MICRO-ATX
Brand: MSI
SKU: 1007000228
Price: 4190 THB
Availability: InStock

MAINBOARD (เมนบอร์ด) MSI B650M GAMING PLUS WIFI - AMD SOCKET AM5 DDR5 MICRO-ATX

แบรนด์ : MSI

4,190.-

JIB Points

รับ 1 คะแนน ทุกการใช้จ่าย

฿100

พร้อมส่ง

รายละเอียดสินค้าโดยย่อ

Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors

• Supports DDR5 Memory, up to 7200+(OC) MHz
• Enhanced Power Design: 10+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2, USB 3.2 Gen 2
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
• High Quality PCB: 6-layer PCB made by 2oz thickened copper

41ครั้ง

ขายแล้ว0ชิ้น

จำนวน

คงเหลือ 1 ชิ้น

คุณสมบัติเด่นและสเปก

รายละเอียดสเปคทั้งหมดของสินค้า

MAINBOARD (เมนบอร์ด) MSI B650M GAMING PLUS WIFI - AMD SOCKET AM5 DDR5 MICRO-ATX

CPU

Wattage: 170W

Graphic & Audio

mb_ob_sup_sound: 7.1-Channel High Definition Audio
Audio: Realtek ALC897 Codec
Graphic: 1 x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1 x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* — *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Storage

M.2: 2 x M.2 slots (Key M) — • M2_1 slot (From CPU) - Supports up to PCle 4.0 x4 - Supports 2260/2280 storage devices — • M2_2 slot (From CPU) - Supports up to PCle 4.0 x4 - Supports up to PCle 4.0 x2 (For Ryzen 8500/8300 Series processors - Supports 2260/2280 storage devices Port
RAID: - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

expansion slots

Details: • 1 x PCIe x16 slot - PCI_E2 (From CPU) - Supports up to PCle 4.0 x16 (For Ryzen 9000/7000 Series processors) - Supports up to PCle 4.0 x8 (For Ryzen 8700/8600/8400 Series processors) - Supports up to PCle 4.0 x4 (For Ryzen 8500/8300 Series processors) — • 2 x PCIe x1 slots - PCI_E1 & PCI_E3 (From B650 chipset) - Supports up to PCIe 3.0 x1

network

Wireless: Wi-Fi 6E - The Wireless module is pre-installed in the M.2 (Key-E) slot - Supports MU-MIMO TX/RX - Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands - Supports 802.11 a/ b/ g/ n/ ac/ ax - Supports Bluetooth 5.3** — * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LAN Speed: 100 / 1000 / 2500 Mbps
LAN: 1 Port

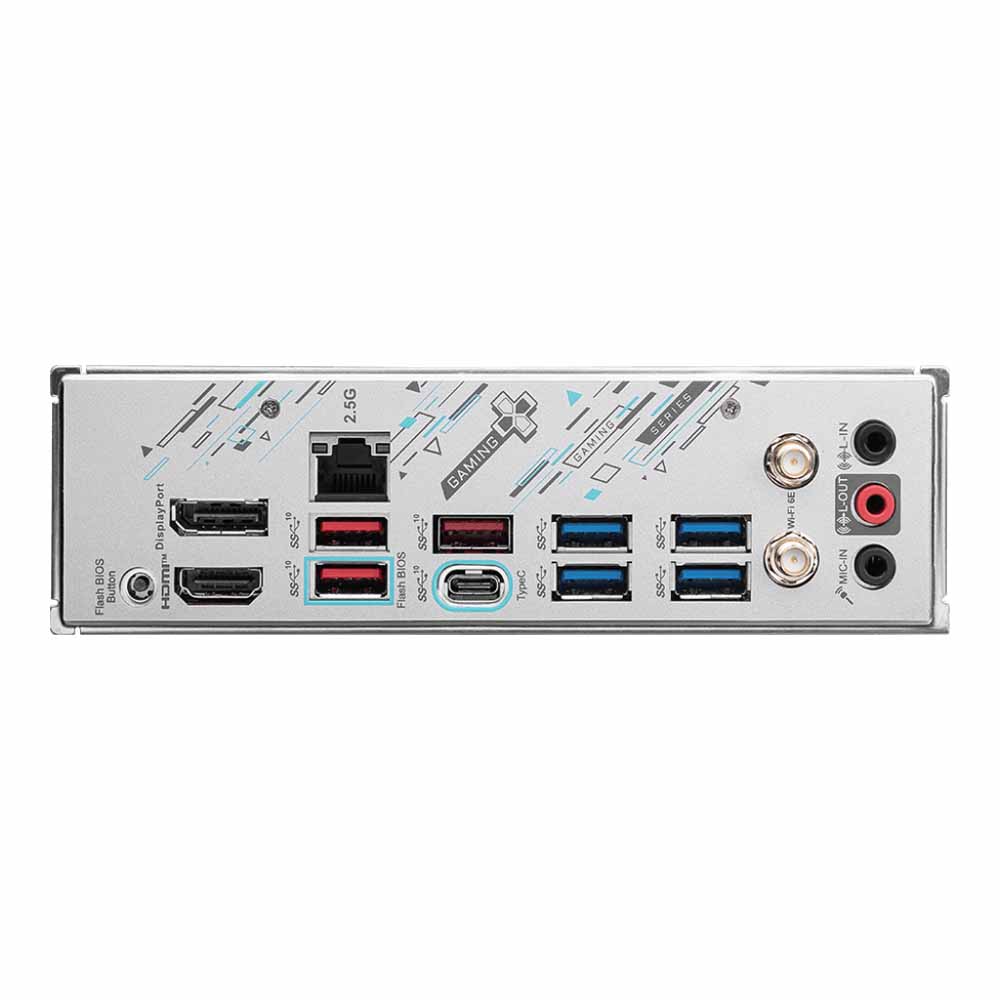

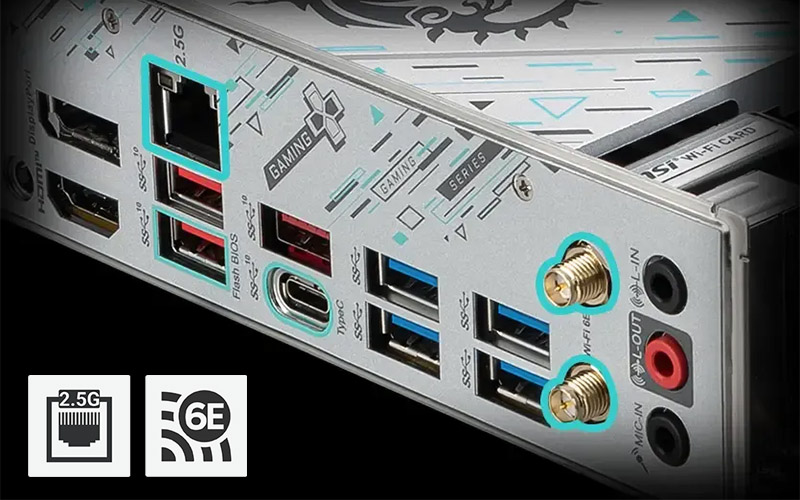

Back Panel I/O Ports

USB 3.2: 3 x USB 3.2 Gen 2 10Gbps Type-A 1 x USB 3.2 Gen 2 10Gbps Type-C 4 x USB 3.2 Gen 1 5Gbps Type-A Port
Additional: 1 x Flash BIOS button 2 x Wi-Fi antenna connectors

Form Factor

Power Connector: 24 + 8 + 8 Pin
Dimension: 24.4 x 24.4 cm

รายละเอียดสินค้า

ภาพรวม จุดเด่น และข้อมูลการใช้งาน

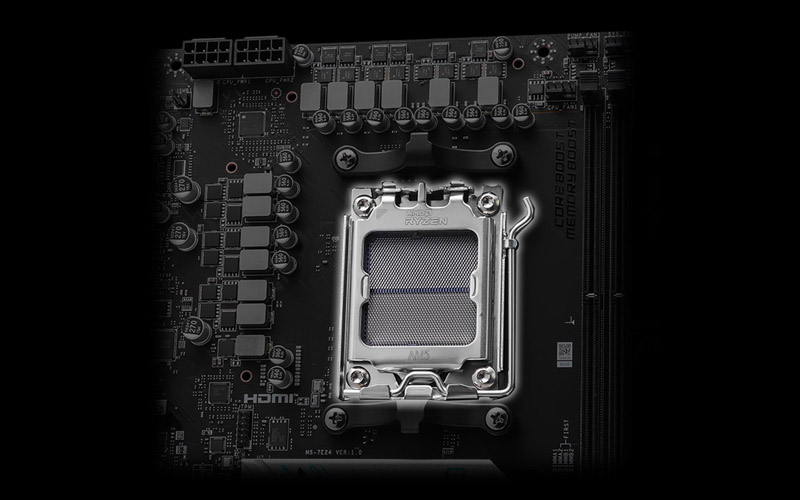

10+2+1 DUET RAIL POWER SYSTEM

Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8+8-pin power connectors and exclusive Core Boost technology, B650M GAMING PLUS WIFI motherboard is ready to suustain heavy gaming loadings.

10 PHASE Core Power DRPS / P-PAK

2 PHASE SOC POWER

1 PHASE MISC POWER

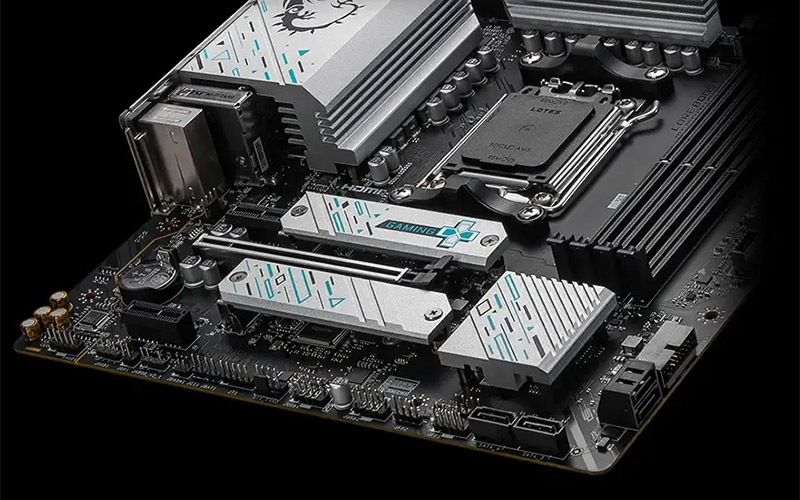

FAST AND FUTURE-READY STORAGE

MSI B650M GAMING PLUS WIFI motherboards supports all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

2 x Lightening Gen 4 M2 64 Gbps

4 x 6 Gbps

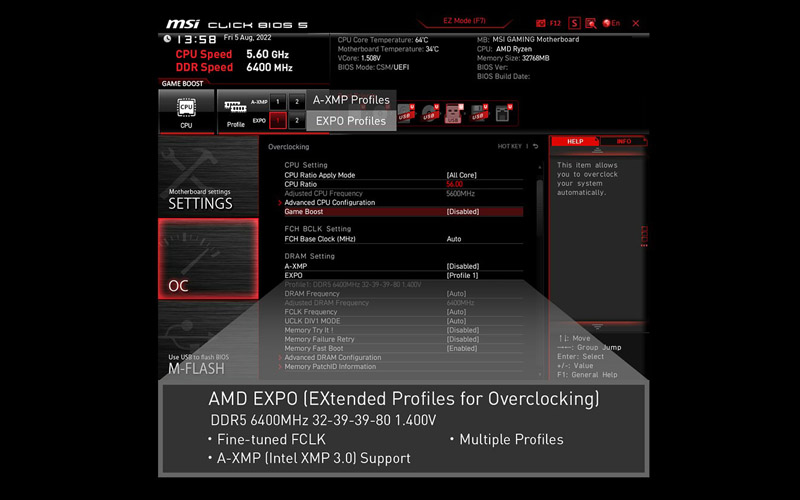

EASY OVERCLOCKING WITH EXPO PROFILE

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Easy to enable EXPO profile with auto power settings to get the best memory speed and stability.

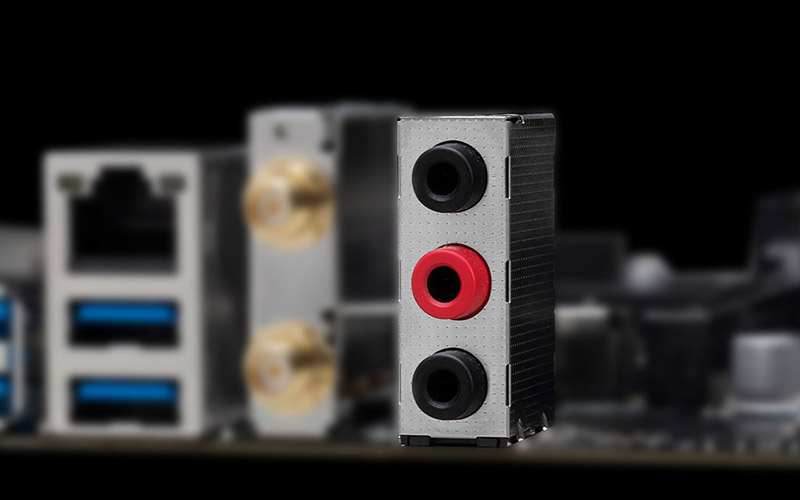

THE ISOLATED ANALOGY STRUCTURE FOR AUDIO CONNECTORS

To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.
